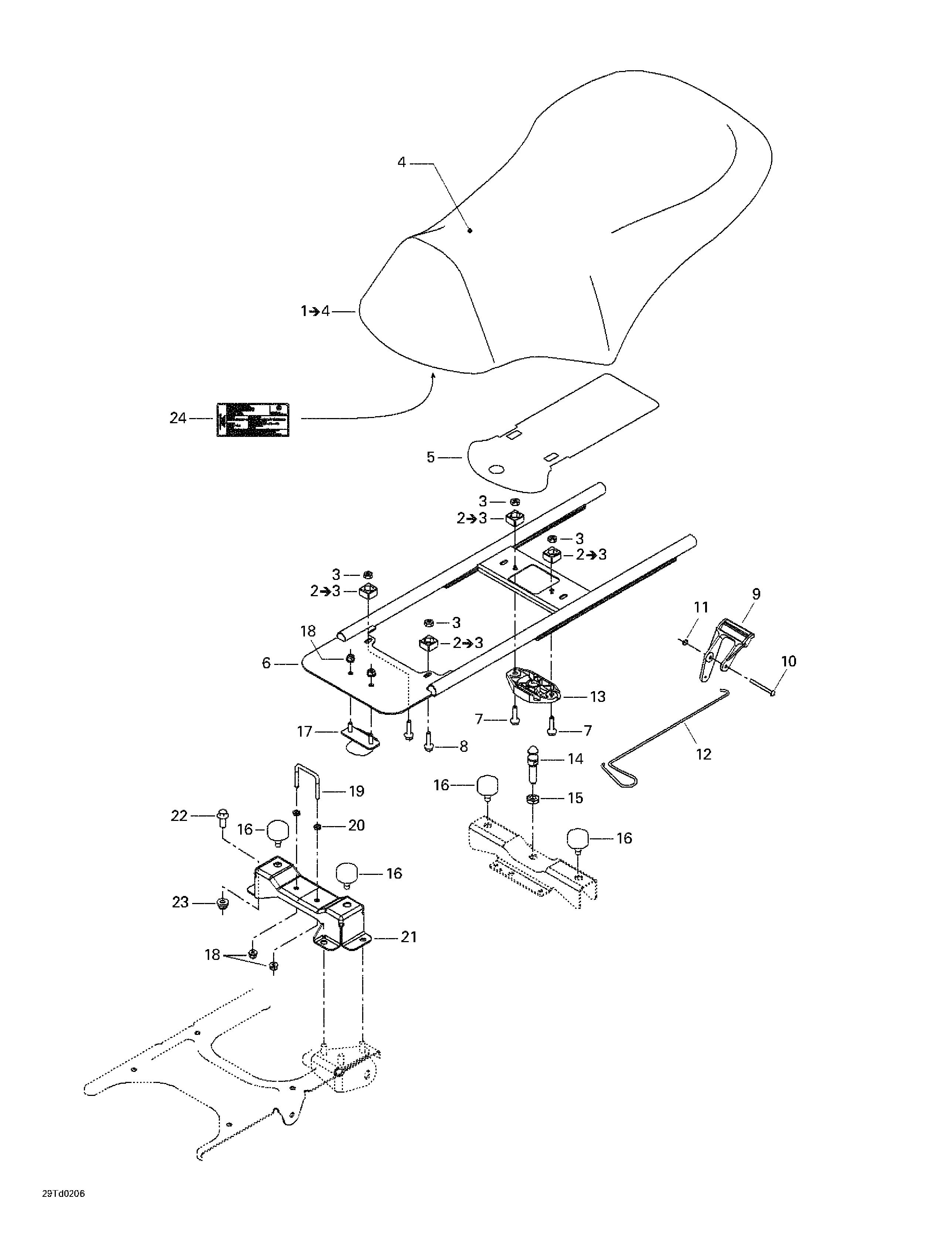

09- Seat для BRP Quest, Green/vert - 2002
-
№АртикулНазвание
-
1708000050 Seat Ass'y. Includes 1 - 4.Seat Ass'y. Includes 1 - 4.
-
2708000046 Nut Housing Ass'y. Includes 2 - 3.Nut Housing Ass'y. Includes 2 - 3.
-
3232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4708000095 Seat CoverSeat Cover
-
5708000029 Reflection SheetReflection Sheet
-
6708000085 Seat SupportSeat Support
-
7207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
8207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
9708000010 Latch LeverLatch Lever
-
10293150062 RivetRivet
-
11389804300 Push NutPush Nut
-
12708000015 SpringSpring
-
13708000034 Latch BaseLatch Base
-
14291000689 Latch StudLatch Stud
-
15232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
16708000006 Rubber StopperRubber Stopper
-
17291001479 Seat HookSeat Hook
-
18233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19291000468 Seat HookSeat Hook
-
20232061600 Hex. Nut M6Hex. Nut M6
-
21708000088 Seat SupportSeat Support
-
22207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
23233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
24704900305 Emission LabelEmission Label
