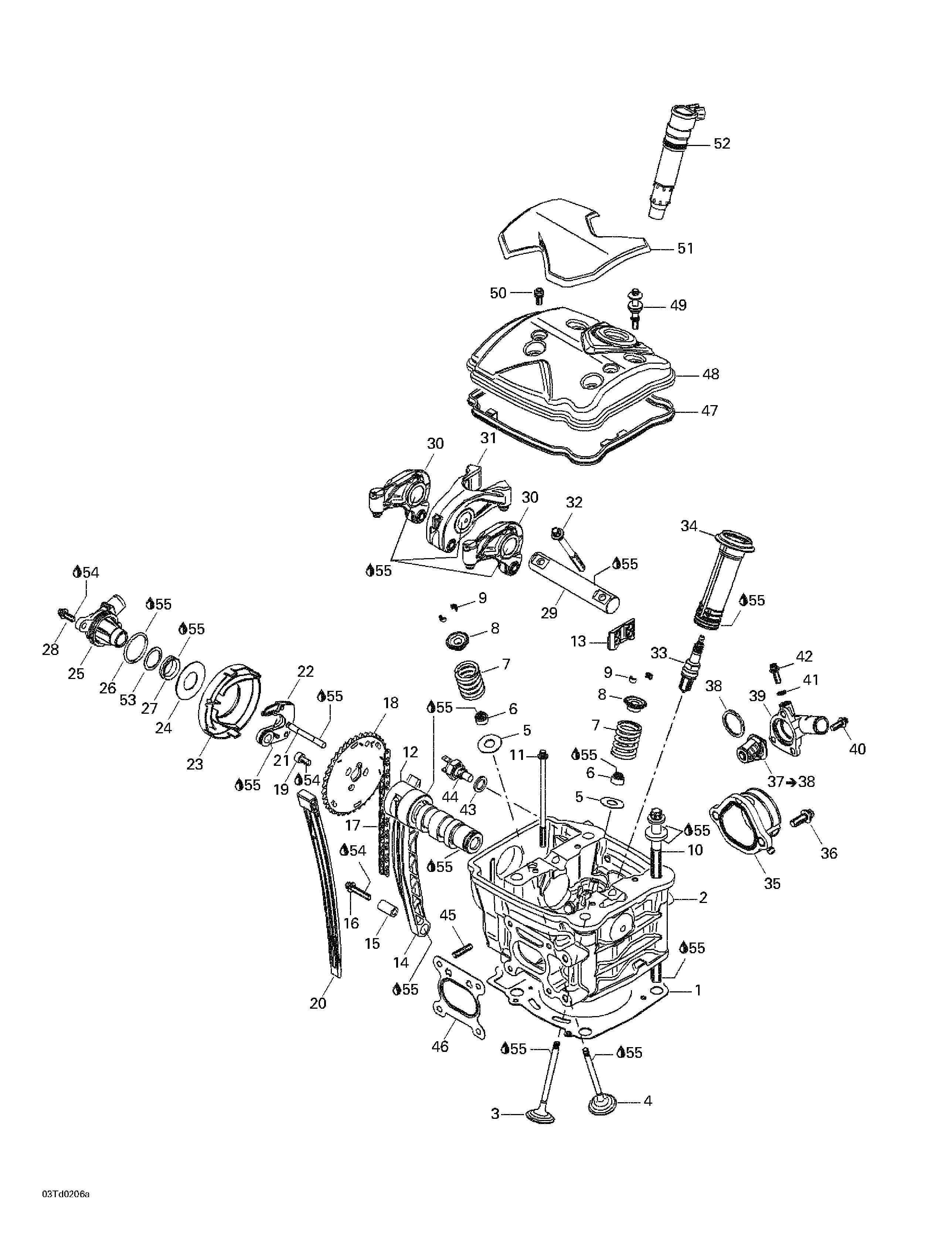

01- Cylinder Head для BRP Quest, Green/vert - 2002
-
№АртикулНазвание
-
1711950660 GasketGasket
-
2711613476 Cylinder HeadCylinder Head
-
3711254290 Intake Valve 38 mmIntake Valve 38 mm
-
4711254027 Exhaust Valve 31 mmExhaust Valve 31 mm
-
5711627520 Thrust WasherThrust Washer
-
6711230510 Valve SealValve Seal
-
7711238180 Valve SpringValve Spring
-
8711254280 Valve Spring RetainerValve Spring Retainer
-
9711253645 Cotter ValveCotter Valve
-
10711641020 Torx Screw M11 x 215Torx Screw M11 x 215
-
11711641333 Torx Screw M6 x 105Torx Screw M6 x 105
-
12711220770 CamshaftCamshaft
-
13711851692 Camshaft GuideCamshaft Guide
-
14711236540 Chain Tension GuideChain Tension Guide
-
15711247100 Distance SleeveDistance Sleeve
-
16711641253 Torx Screw M6 x 35Torx Screw M6 x 35
-
17711297957 Camshaft ChainCamshaft Chain
-
18711254301 Camshaft Sprocket (38 Teeth)Camshaft Sprocket (38 Teeth)
-
19711841334 Socket Head Screw M6 x 12Socket Head Screw M6 x 12
-
20711236500 Chain GuideChain Guide
-
21711220792 Deko ShaftDeko Shaft
-
22711231061 Centrifugal WeightCentrifugal Weight
-
23711660032 CoverCover
-
24711627490 Thrust WasherThrust Washer
-
25711610270 Camshaft CoverCamshaft Cover
-
26711950872 O-RingO-Ring
-
27711630125 V-RingV-Ring
-
28711241751 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
29711854599 Rocker Arm ShaftRocker Arm Shaft
-
30711254326 Exhaust Rocker ArmExhaust Rocker Arm
-
31711254315 Inlet Rocker ArmInlet Rocker Arm
-
32711641080 Torx Screw M8 x 72Torx Screw M8 x 72
-
33707000246 Spark Plug (NGK DCP-R8E)Spark Plug (NGK DCP-R8E)
-
34711851750 Spark Plug TubeSpark Plug Tube
-
35711267270 Rubber FlangeRubber Flange
-
36711641243 Torx Flanged Screw M8 x 25Torx Flanged Screw M8 x 25
-
37711222495 Thermostat Ass'y. Includes 37 - 38.Thermostat Ass'y. Includes 37 - 38.
-
38711650300 Thermostat GasketThermostat Gasket
-
39711222660 Thermostat CoverThermostat Cover
-
40711641043 Torx Flanged Screw M6 x 16Torx Flanged Screw M6 x 16
-
41404146600 Sealing WasherSealing Washer
-
42711641043 Torx Flanged Screw M6 x 16Torx Flanged Screw M6 x 16
-
43711250640 GasketGasket
-
44711897939 Temperature SwitchTemperature Switch
-
45711240010 Stud M6 x 16Stud M6 x 16
-
46711950680 GasketGasket
-
47711630070 Sealing RingSealing Ring
-
48711610185 Valve CoverValve Cover
-
49711641269 Torx Screw M6 x 30.5Torx Screw M6 x 30.5
-
50711641483 Torx Screw M6 x 10Torx Screw M6 x 10
-
51711660200 Valve CoverValve Cover
-
52711664025 Ignition CoilIgnition Coil
-
53711227440 Thrust WasherThrust Washer
-
54293800060 Loctite 243, 10 mlLoctite 243, 10 ml
