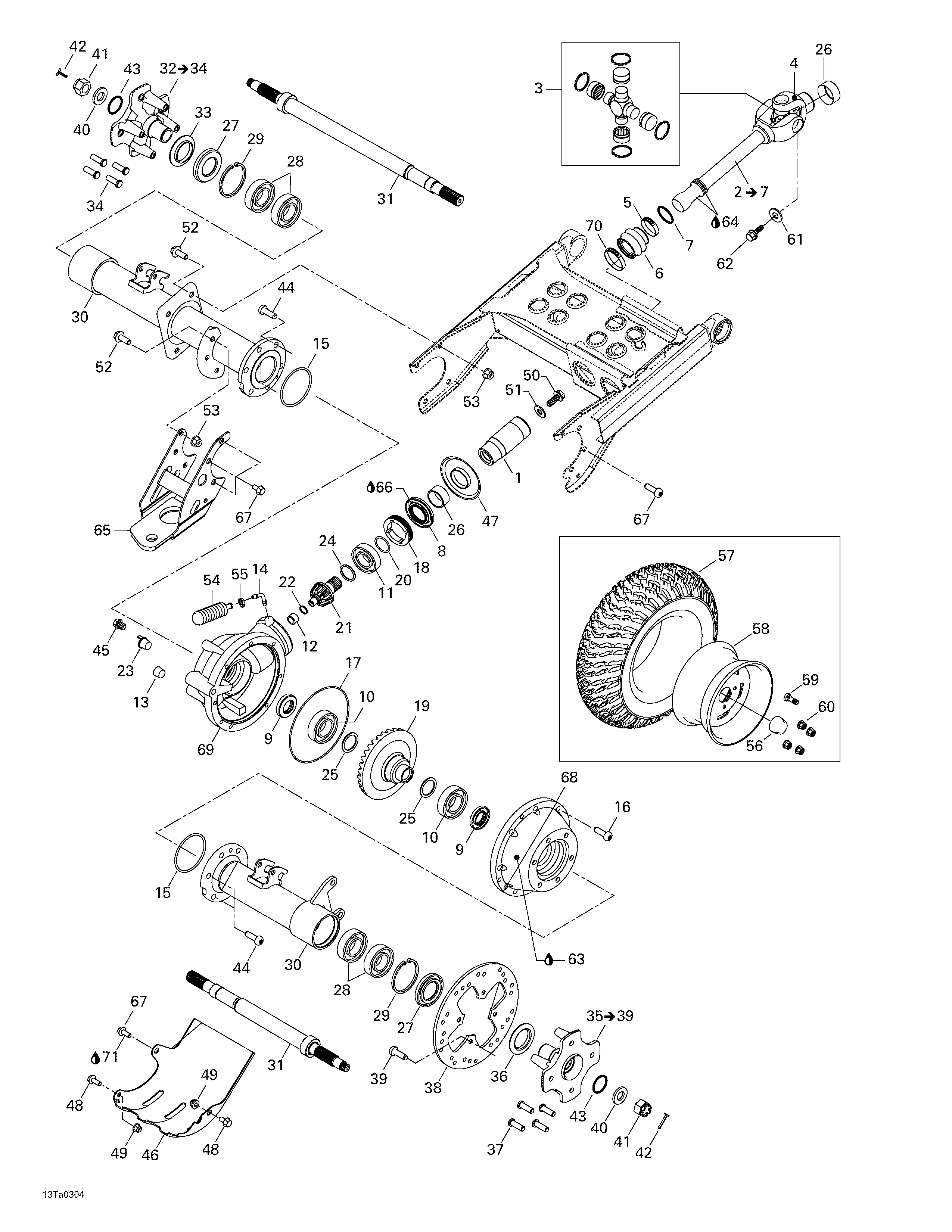

05- Drive System, Rear для BRP Traxter Autoshift Std - 2003
-
№АртикулНазвание
-
1705400149 Coupling SleeveCoupling Sleeve
-
2705500405 Drive Axle Ass'y. Includes 2 to 7Drive Axle Ass'y. Includes 2 to 7
-
3703500002 Unit Pack KitUnit Pack Kit
-
4705500348 Fix JointFix Joint
-
5705400148 CollarCollar
-
6705400147 ProtectorProtector
-
7705500315 Sealing RingSealing Ring
-
8705500248 Oil SealOil Seal
-
9705500255 Oil SealOil Seal
-
10705500259 Ball BearingBall Bearing
-
11705500260 Ball BearingBall Bearing
-
12705500261 Needle BearingNeedle Bearing
-
13705500245 Drain PlugDrain Plug
-
14705500262 Vent ValveVent Valve
-
15705500263 O-RingO-Ring
-
16705500264 ScrewScrew
-
17705500265 SealSeal
-
18705500266 NutNut
-
19705500223 Gear (36 Teeth)Gear (36 Teeth)
-
20705500267 O-RingO-Ring
-
21705500268 Gear (10 Teeth)Gear (10 Teeth)
-
22705500269 Retaining RingRetaining Ring
-
23705500246 Protector PlugProtector Plug
-
24703500049 Pinion gear shim kit.022''Pinion gear shim kit.022''
-
25703500050 Differential Shim KitDifferential Shim Kit
-
26705400036 Wear RingWear Ring
-
27705500099 Oil SealOil Seal
-
28705500251 Ball BearingBall Bearing
-
29705500249 Retaining RingRetaining Ring
-
30705500250 R.H. Axle TubeR.H. Axle Tube
-
705500182 LH Axle TubeLH Axle Tube
-
31705500183 R.H. Axle Ass'yR.H. Axle Ass'y
-
705500184 LH Axle Ass'yLH Axle Ass'y
-
32705500254 LH Wheel Hub Ass'y. Includes 32 - 34.LH Wheel Hub Ass'y. Includes 32 - 34.
-
33705500100 Wear SleeveWear Sleeve
-
34250300020 Wheel StudWheel Stud
-
35705500256 R.H. Rear Wheel Hub. Includes 35 - 39.R.H. Rear Wheel Hub. Includes 35 - 39.
-
36705500100 Wear RingWear Ring
-
37250300020 Wheel StudWheel Stud
-
38705600167 Disc BrakeDisc Brake
-
39235381646 Torx Screw M8 x 16. (Scotch Grip)Torx Screw M8 x 16. (Scotch Grip)
-
40250200019 WasherWasher
-
41232291413 Hex. Nut M18Hex. Nut M18
-
42250400016 Cotter PinCotter Pin
-
43705500271 O-RingO-Ring
-
44250000085 Torx Screw M10Torx Screw M10
-
45705500228 Fill Level PlugFill Level Plug
-
46705500185 Rear Differential ProtectorRear Differential Protector
-
47705500214 ProtectorProtector
-
48207681644 Hex. Flanged Screw M8 x 16Hex. Flanged Screw M8 x 16
-
49233181414 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
50250000060 Hex. Flanged Screw M10 x 16. (Scotch Grip)Hex. Flanged Screw M10 x 16. (Scotch Grip)
-
51250200014 Flat WasherFlat Washer
-
52207602544 Hex. Flanged Screw M10 x 25Hex. Flanged Screw M10 x 25
-
53233201414 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
54705400066 Rubber BellowRubber Bellow
-
55293750001 Tie Rap 94mmTie Rap 94mm
-
56705400012 Wheel CapWheel Cap
-
57705500314 Rear TireRear Tire
-
58705500239 Rear RimRear Rim
-
59705400053 Rim ValveRim Valve
-
60705400013 Hex. Nut M10Hex. Nut M10
-
61211200041 WasherWasher
-
62207681686 Hex. Flanged Screw M8 x 16 (Scotch Grip)Hex. Flanged Screw M8 x 16 (Scotch Grip)
-
63293600011 Redline Pump Oil, 75W90, 12 x 6ozRedline Pump Oil, 75W90, 12 x 6oz
-
64293550019 GreaseGrease
-
65705500244 Trailer HitchTrailer Hitch
-
66293550010 Synthetic GreaseSynthetic Grease
-
67250000085 Torx Screw M10Torx Screw M10
-
68705500175 Differential CapDifferential Cap
-
69705500233 Differential CarrierDifferential Carrier
-
70293650138 Oetiker ClampOetiker Clamp
-
71413703100 Loctite 609Loctite 609
