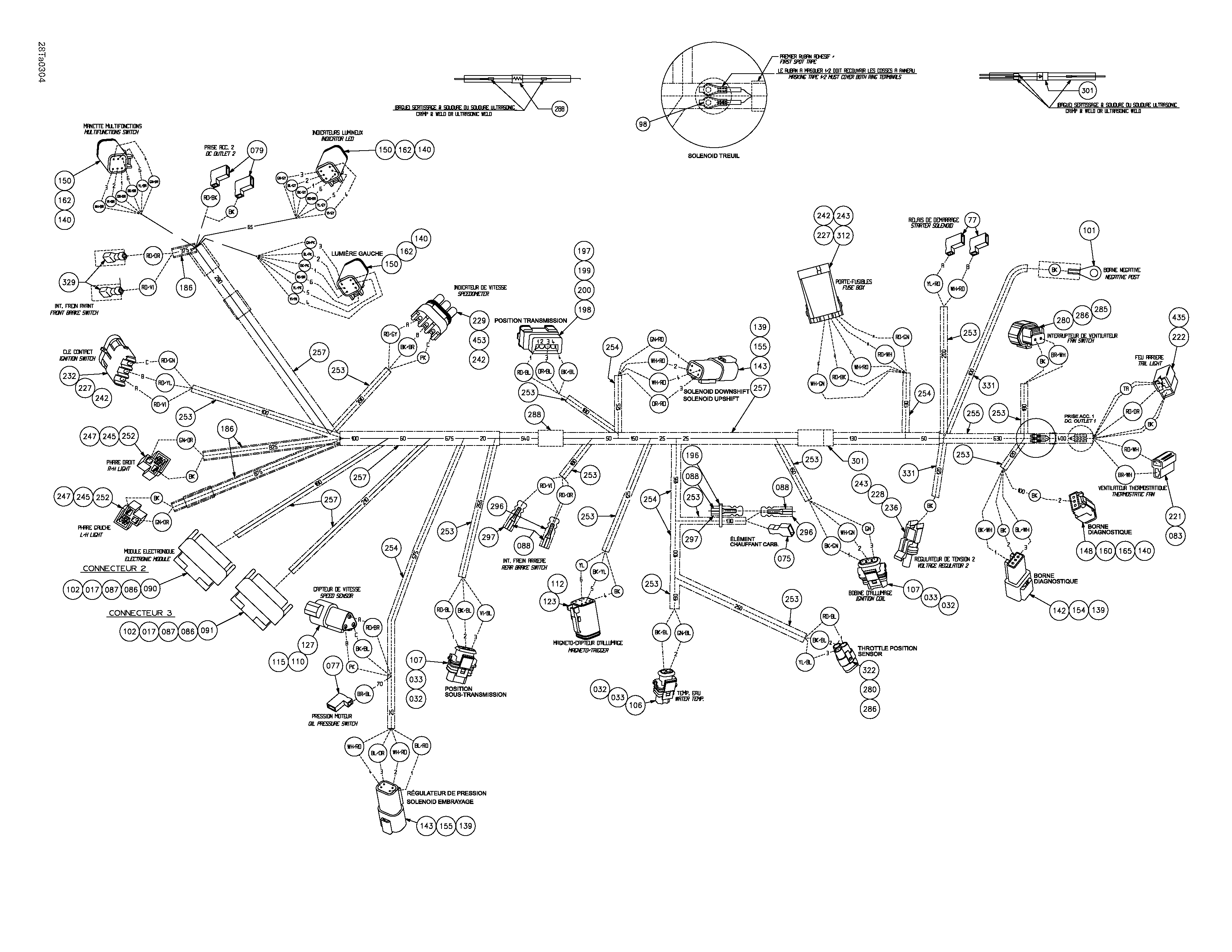

10- Main Harness для BRP Traxter Autoshift Std - 2003
-
№АртикулНазвание
-
17710000349 Harness ass'y. Includes 17 - 453.Harness ass'y. Includes 17 - 453.
-
17278000996 SealSeal
-
32278000998 Female TerminalFemale Terminal
-
33278000999 Wire SealWire Seal
-
75409010700 Female TerminalFemale Terminal
-
77409010300 Female TerminalFemale Terminal
-
79710000038 Female TerminalFemale Terminal
-
83515175252 Female TerminalFemale Terminal
-
85710000036 Female TerminalFemale Terminal
-
86278000995 Female TerminalFemale Terminal
-
87278000994 Female TerminalFemale Terminal
-
88278001009 Female TerminalFemale Terminal
-
90278001062 Female Terminal Housing (26 circuits)Female Terminal Housing (26 circuits)
-
10278001307 Wire SealWire Seal
-
91278001063 Female Terminal Housing (26 circuits)Female Terminal Housing (26 circuits)
-
10278001307 Wire SealWire Seal
-
92710000035 Female Terminal Housing (8 circuits)Female Terminal Housing (8 circuits)
-
98515175330 Open BarrelOpen Barrel
-
101409012600 Open BarrelOpen Barrel
-
102293000070 Sealing CapSealing Cap
-
106278001005 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
107278000997 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
115409207000 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
123278000736 Female Terminal Housing (6 circuits)Female Terminal Housing (6 circuits)
-
127409207600 Male Lock (3 circuits)Male Lock (3 circuits)
-
139409014800 Male TerminalMale Terminal
-
140409015100 Female TerminalFemale Terminal
-
142710000044 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
143710000045 Male Terminal Housing (4 circuits)Male Terminal Housing (4 circuits)
-
148515175249 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
150409015400 Female Terminal Housing (6 circuits)Female Terminal Housing (6 circuits)
-
154710000043 (Male) Secondary Lock (3 Circuits) (Deutsch)(Male) Secondary Lock (3 Circuits) (Deutsch)
-
155710000046 Male Lock (4 circuits)Male Lock (4 circuits)
-
160515175248 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
162409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
165515175303 PlugPlug
-
186515175332 InylInyl
-
196293750002 Tie-rap 130 mmTie-rap 130 mm
-
197710000051 Female TerminalFemale Terminal
-
198710000032 Male Terminal Housing (4 circuits)Male Terminal Housing (4 circuits)
-
199710000050 Wire SealWire Seal
-
200710000049 CapCap
-
221409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
222409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
227409004300 Male TerminalMale Terminal
-
228409007300 Female TerminalFemale Terminal
-
229278000223 Female TerminalFemale Terminal
-
232278000281 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
236278000219 Female Terminal Housing (1 circuits)Female Terminal Housing (1 circuits)
-
242278000218 Wire SealWire Seal
-
243710000048 Wire SealWire Seal
-
245710000028 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
247710000027 Female TerminalFemale Terminal
-
252710000026 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
253409902100 HousingHousing
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 TubingTubing
-
257409901600 TubingTubing
-
280409012100 Female TerminalFemale Terminal
-
285710000078 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
286409012300 SealSeal
-
288710000076 ResistanceResistance
-
296278000770 Insulation SheathInsulation Sheath
-
297278001007 Insulation SheathInsulation Sheath
-
301409012700 DiodeDiode
-
312710000107 Female Terminal Housing (5 circuits)Female Terminal Housing (5 circuits)
-
322710000153 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
329710000082 Female TerminalFemale Terminal
-
435409009500 ReceptacleReceptacle
-
453710000347 Female Terminal HousingFemale Terminal Housing
