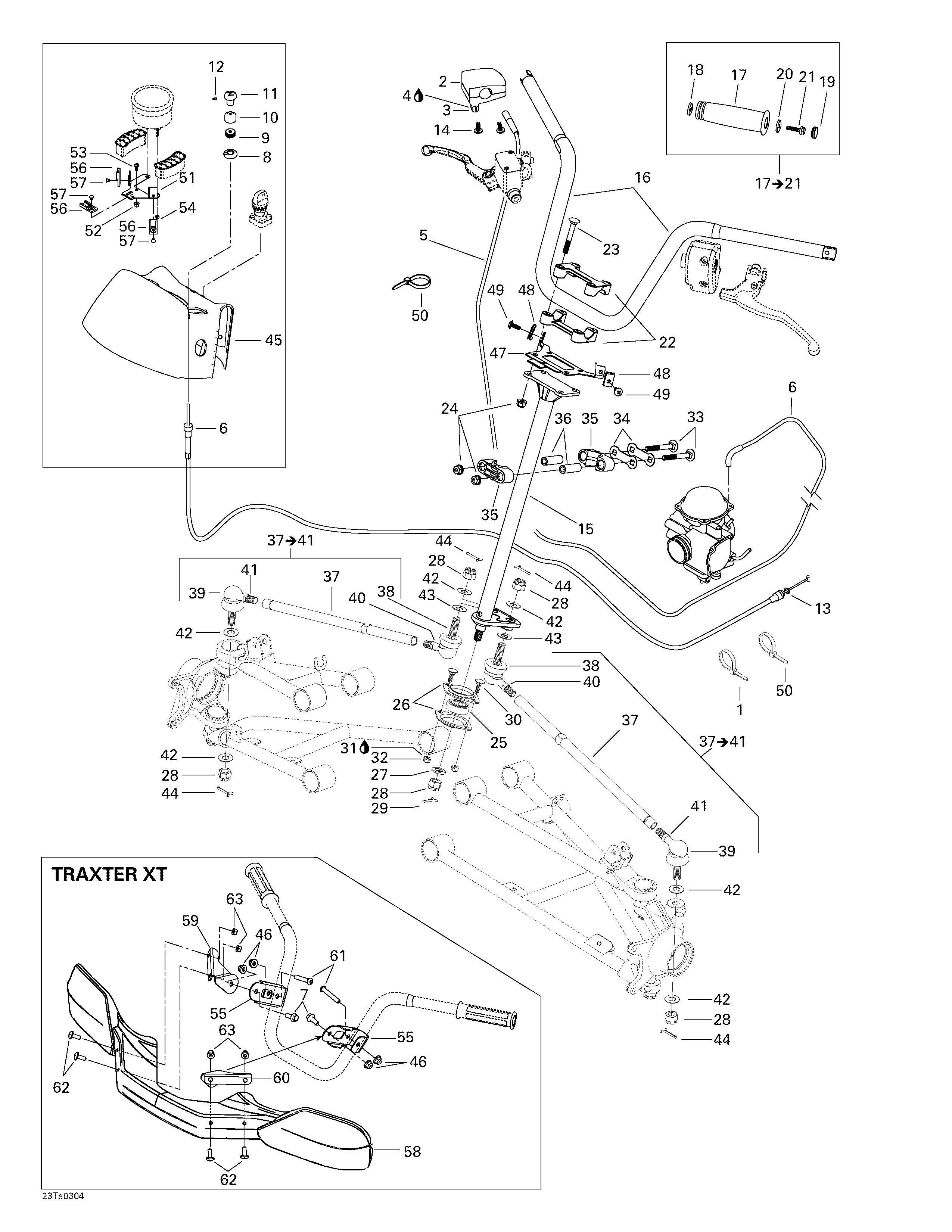

07- Steering System для BRP Traxter Autoshift Std - 2003
-
№АртикулНазвание
-
1293750009 Tie Rap 160 mmTie Rap 160 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
2709400016 Throttle HandleThrottle Handle
-
3250000017 Set Screw M5 x 20 (S.Grip)Set Screw M5 x 20 (S.Grip)
-
4293800061 Loctite 18398, 20 gLoctite 18398, 20 g
-
5707000097 Throttle CableThrottle Cable
-
6707000264 Choke CableChoke Cable
-
7207682044 Hex. Screw M8. P-XT.Hex. Screw M8. P-XT.
-
8707000067 Washer ''D''Washer ''D''
-
9707000087 Cap HolderCap Holder
-
10707000088 Rubber CapRubber Cap
-
11707000089 ButtonButton
-
12250000108 Pan Screw M3 x 5Pan Screw M3 x 5
-
13293300075 O-RingO-Ring
-
14205353060 Socket Head Screw M5 x 30Socket Head Screw M5 x 30
-
15709400089 Main TubeMain Tube
-
16709400005 HandlebarHandlebar
-
17295500691 Handlebar Grip Kit (Black). Includes 17 - 21.Handlebar Grip Kit (Black). Includes 17 - 21.
-
19277000203 Grip CapGrip Cap
-
20234062600 Flat Washer 6 mmFlat Washer 6 mm
-
21250000002 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
22709400028 Steering ClampSteering Clamp
-
23207786544 Carriage Bolt M8 x 65Carriage Bolt M8 x 65
-
24233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
25709400012 Thrust BearingThrust Bearing
-
26709400013 Thrust WasherThrust Washer
-
27234021410 Flat Washer 12 mmFlat Washer 12 mm
-
28232221414 Hex. Castellated Nut M12Hex. Castellated Nut M12
-
29211400017 Cotter PinCotter Pin
-
30207762544 Carriage Bolt M6 x 25Carriage Bolt M6 x 25
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
33207787044 Carriage Bolt M8 x 70Carriage Bolt M8 x 70
-
34506150600 Stopper PlateStopper Plate
-
35709400034 Half HousingHalf Housing
-
36506150500 Housing BushingHousing Bushing
-
37709400064 Tie Rod Ass'y. Includes 37 - 41.Tie Rod Ass'y. Includes 37 - 41.
-
38709400065 R.H. Ball JointR.H. Ball Joint
-
39709400066 LH Ball JointLH Ball Joint
-
40732610019 R.H. Hex. Jam Nut M12R.H. Hex. Jam Nut M12
-
41732610020 LH Hex. Jam Nut M12LH Hex. Jam Nut M12
-
42706200281 Hardened WasherHardened Washer
-
43503189276 WasherWasher
-
44211400013 Cotter PinCotter Pin
-
45703500205 Steering CoverSteering Cover
-
46233281414 Elastic Flanged Stop Nut M8. P-XT.Elastic Flanged Stop Nut M8. P-XT.
-
47709400077 Steering Cover SupportSteering Cover Support
-
48211100050 Speednut M6Speednut M6
-
49211000123 Screw M6 x 20Screw M6 x 20
-
50414115200 Tie RapTie Rap
-
51710000159 Housing SupportHousing Support
-
52232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
53208651241 Screw M5 x 12Screw M5 x 12
-
54211100051 NutNut
-
55709400118 U'' Shape Bracket`P-XT.``U'' Shape Bracket`P-XT.``
-
56270000141 ClipClip
-
57390402400 RivetRivet
-
58705000183 Hand Protector. P-XT.Hand Protector. P-XT.
-
59709400116 R.H. Support. P-XT.R.H. Support. P-XT.
-
60709400117 LH Support. P-XT.LH Support. P-XT.
-
61205484546 Socket Screw M8 x 45. P-XT.Socket Screw M8 x 45. P-XT.
-
62211000123 Screw M6 x 20. P-XT.Screw M6 x 20. P-XT.
-
63233261414 Elastic Flanged Stop Nut M8. P-XT.Elastic Flanged Stop Nut M8. P-XT.
