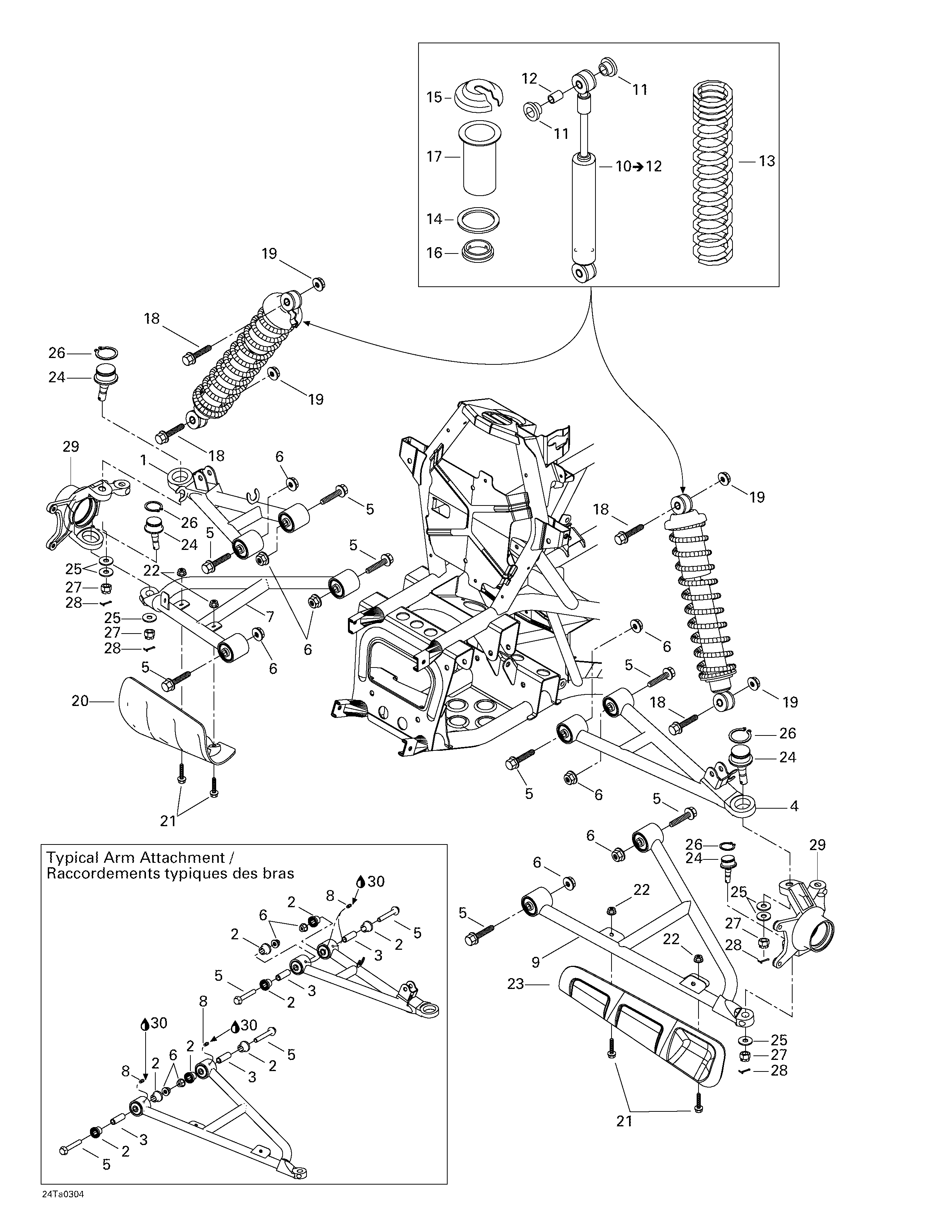

07- Front Suspension для BRP Traxter Autoshift Std - 2003
-
№АртикулНазвание
-
1706200187 R.H. Upper ArmR.H. Upper Arm
-
2706200181 CushionCushion
-
3706200182 Interior BushingInterior Bushing
-
4706200193 LH Upper ArmLH Upper Arm
-
5207607046 Hex. Flanged Screw M10 x 70Hex. Flanged Screw M10 x 70
-
6233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
7706200196 R.H. Lower ArmR.H. Lower Arm
-
8408200700 Grease FittingGrease Fitting
-
9706200200 LH Lower ArmLH Lower Arm
-
10706200137 Front Shock. Includes 10 - 12.Front Shock. Includes 10 - 12.
-
11706200185 CushionCushion
-
12706200186 BushingBushing
-
13706200006 Front SpringFront Spring
-
14706000028 Ring HolderRing Holder
-
15503140600 Spring StopperSpring Stopper
-
16706000007 Seat SpringSeat Spring
-
17503139800 ProtectorProtector
-
18207604544 Hex. Flanged Screw M10 x 45Hex. Flanged Screw M10 x 45
-
19233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
20706200179 R.H. Arm ProtectorR.H. Arm Protector
-
21207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
22233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
23706200180 LH Arm ProtectorLH Arm Protector
-
24706200091 Ball JointBall Joint
-
25706200281 Hardened WasherHardened Washer
-
26293370009 CirclipCirclip
-
27232221414 Hex. Castellated Nut M12Hex. Castellated Nut M12
-
28211400017 Cotter PinCotter Pin
-
29709400095 R.H. KnuckleR.H. Knuckle
-
709400097 LH KnuckleLH Knuckle
-
30293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
