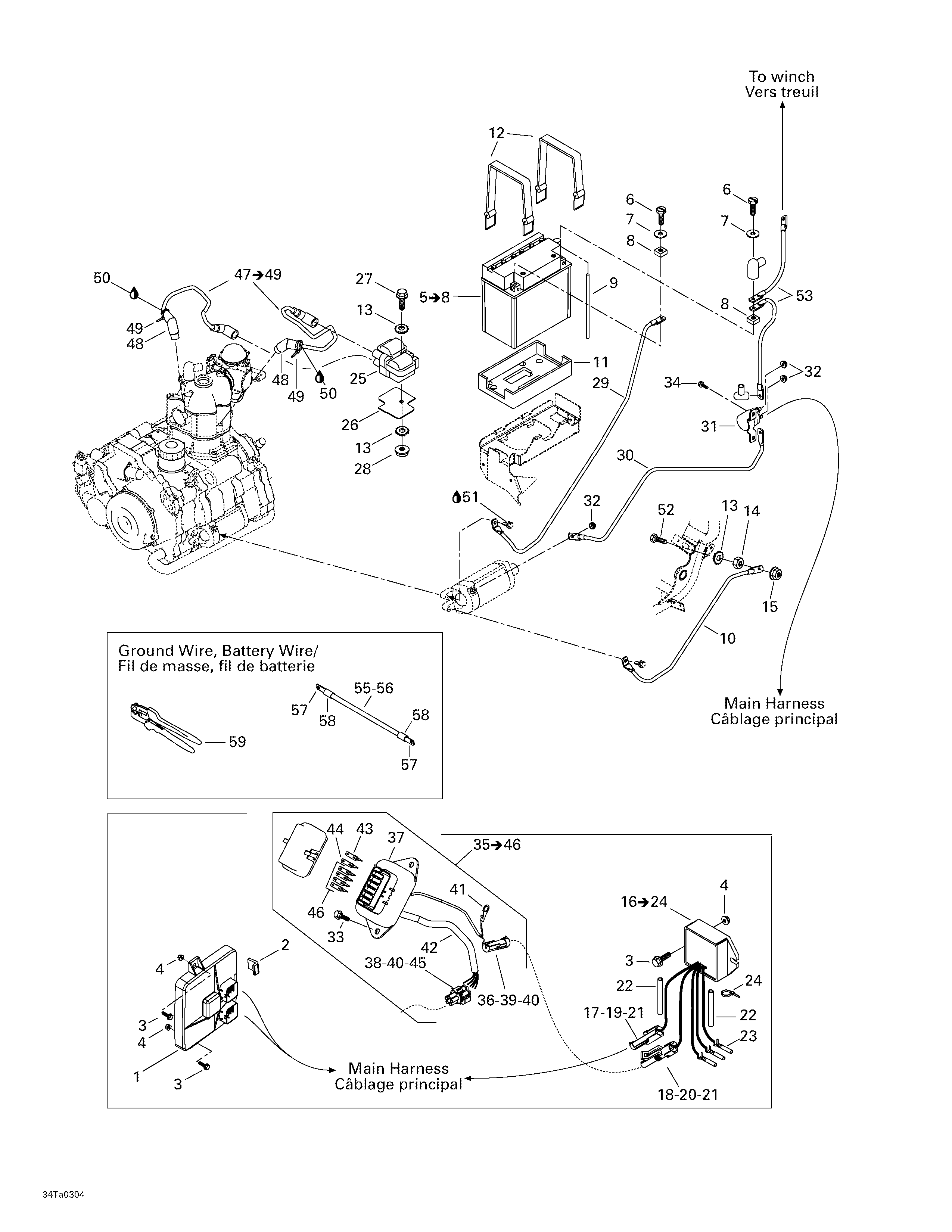

10- Battery And Electrical Accessories для BRP Traxter Autoshift Std - 2003
-
№АртикулНазвание
-
1710000315 Electronic ModuleElectronic Module
-
2278001166 Module ProtectorModule Protector
-
3207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
4233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
5278001756 Battery. Includes 5 - 8.Battery. Includes 5 - 8.
-
6211000045 Hex. ScrewHex. Screw
-
7211200018 Flat Washer 6 mmFlat Washer 6 mm
-
8211100022 Nut M6Nut M6
-
9415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
10710000022 Ground CableGround Cable
-
11278001746 Battery Lower PadBattery Lower Pad
-
12293850021 Rubber StrapRubber Strap
-
13234461608 External Tooth Lock Washer 6 mmExternal Tooth Lock Washer 6 mm
-
14232061414 Nut M6Nut M6
-
15233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
16710000100 Voltage Regulator. Includes 16 - 24.Voltage Regulator. Includes 16 - 24.
-
17278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
18278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
19278000161 Female Housing (1 Circuit)Female Housing (1 Circuit)
-
20278000219 Male Housing (1 Circuit)Male Housing (1 Circuit)
-
21278000218 Wire Seal (16-18 Gauge)(Green)Wire Seal (16-18 Gauge)(Green)
-
22409901300 Vinyl TempVinyl Temp
-
23710000034 Female Terminal (14-16 Gauge)Female Terminal (14-16 Gauge)
-
24293750001 Tie RapTie Rap
-
25278001546 Ignition CoilIgnition Coil
-
26710000073 Insulator PadInsulator Pad
-
27207665044 Hex. Flanged Screw M6 x 50Hex. Flanged Screw M6 x 50
-
28233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
29710000211 Ground CableGround Cable
-
30710000136 Positive CablePositive Cable
-
31710000111 Starter RelayStarter Relay
-
32232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
33210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
34250000061 Hex. Tapping Screw 1/4''-20 x 3/4''Hex. Tapping Screw 1/4''-20 x 3/4''
-
35710000212 Fuse Holder. Includes 35 - 46.Fuse Holder. Includes 35 - 46.
-
36409004300 Male Terminal (16 Gauge)Male Terminal (16 Gauge)
-
37710000213 Fuse BoxFuse Box
-
38409007300 Female Terminal (14 Gauge)Female Terminal (14 Gauge)
-
39278000161 Female Housing (1 Circuit)Female Housing (1 Circuit)
-
40278000218 Wire Seal (16-18 Gauge)(Green)Wire Seal (16-18 Gauge)(Green)
-
710000048 Wire SealWire Seal
-
41278001392 Open BarrelOpen Barrel
-
42515175442 HousingHousing
-
43410917200 Fuse 30 AmpFuse 30 Amp
-
44278001143 Fuse 20 AmpFuse 20 Amp
-
45710000106 Female Housing (5 Circuits)Female Housing (5 Circuits)
-
46278000343 Fuse 15 AmpFuse 15 Amp
-
47710000039 Spark Plug Wire. Includes 47 - 49.Spark Plug Wire. Includes 47 - 49.
-
48710000041 Spark Plug CapSpark Plug Cap
-
49293750001 Tie Rap 94 mmTie Rap 94 mm
-
50293550004 Dielectric Grease,150 gDielectric Grease,150 g
-
51293800060 Loctite 243Loctite 243
-
52207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
53710000135 Battery Cable. P-XT.Battery Cable. P-XT.
