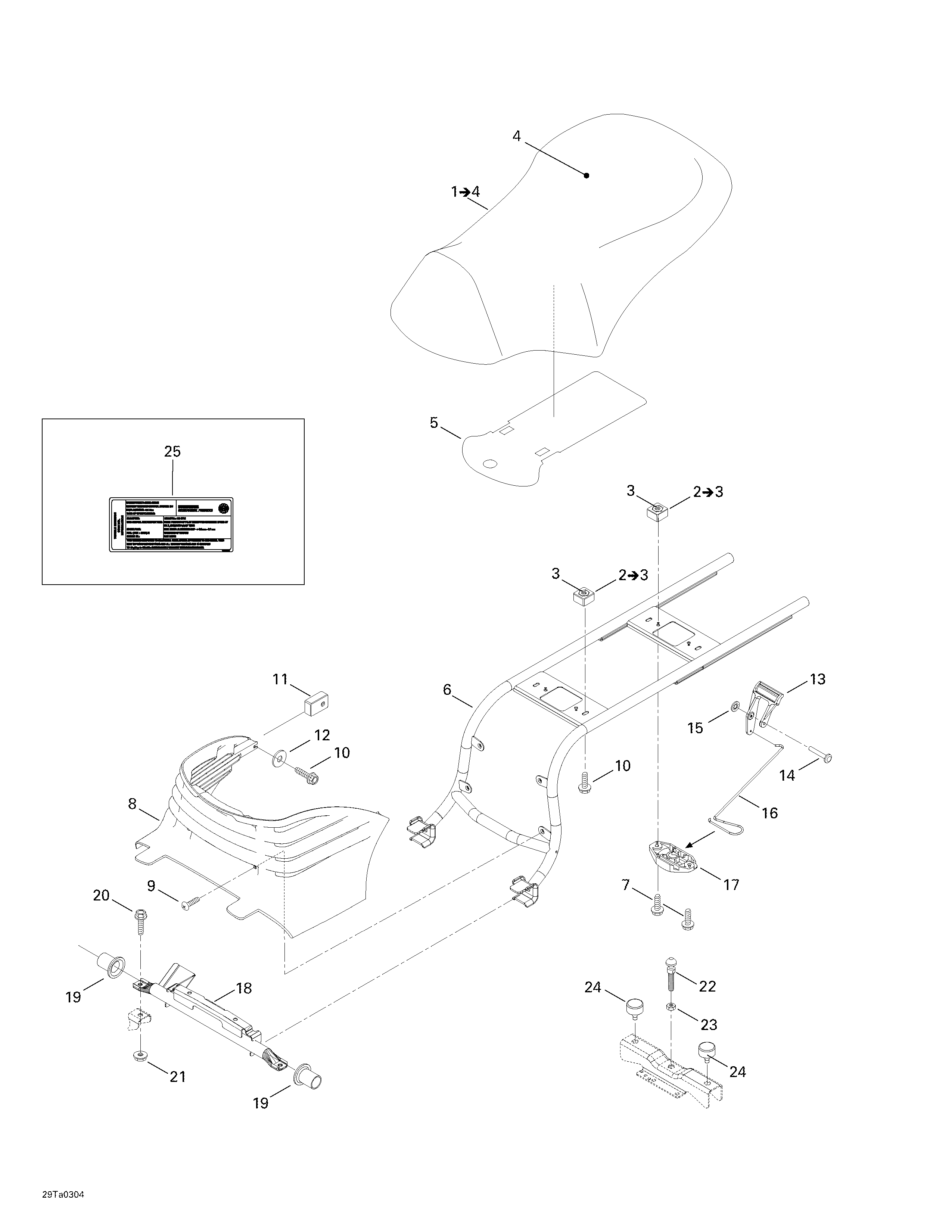

09- Seat для BRP Traxter Autoshift Std - 2003
-
№АртикулНазвание
-
1708000147 Seat Ass'y. Includes 1 - 4. P-XT.Seat Ass'y. Includes 1 - 4. P-XT.
-
708000149 Seat Ass'y. P-STD.Seat Ass'y. P-STD.
-
2708000046 Nut Housing Ass'y. Includes 2 - 3.Nut Housing Ass'y. Includes 2 - 3.
-
3232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4708000148 Seat Cover. P-XT.Seat Cover. P-XT.
-
708000150 Seat Cover. P-STD.Seat Cover. P-STD.
-
5708000029 Reflective SheetReflective Sheet
-
6708000003 Seat SupportSeat Support
-
7207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
8705000609 Engine CoverEngine Cover
-
9210261080 Screw M6 x 10Screw M6 x 10
-
10207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
11708000042 Nut HousingNut Housing
-
12224061201 Flat WasherFlat Washer
-
13708000010 Latch LeverLatch Lever
-
14293150062 RivetRivet
-
15389804300 Push NutPush Nut
-
16708000015 SpringSpring
-
17708000034 Latch BaseLatch Base
-
18708000044 Seat PivotSeat Pivot
-
19708000019 Seat BushingSeat Bushing
-
20207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
21233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
22291000945 Latch StudLatch Stud
-
23232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
24708000006 Rubber StopperRubber Stopper
-
25704900314 Emission LabelEmission Label
