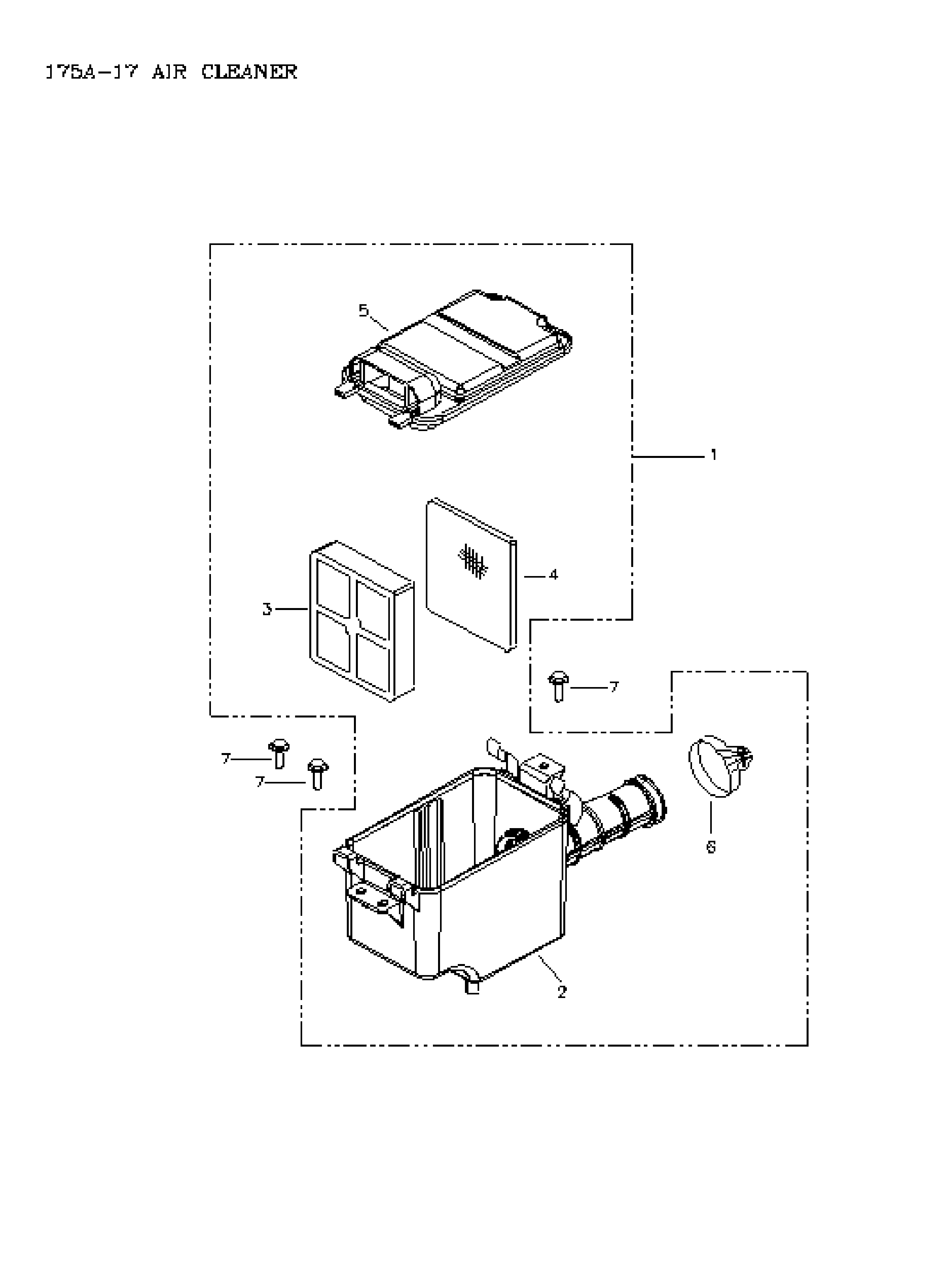

01- Air Cleaner для BRP Mini DS 90 4-strokes - 2006
-
№АртикулНазвание
-
1A17200175000 Silencieux Adm.*silencer-airSilencieux Adm.*silencer-air
-
2A17206175000 Silencieux Adm.*silencer-airSilencieux Adm.*silencer-air
-
3A17205175000 Air Cleaner Element SetAir Cleaner Element Set
-
4A17210175000 Filtre A Air *filter-airFiltre A Air *filter-air
-
5A17207175000 Couvert Silen. *cover MufflerCouvert Silen. *cover Muffler
-
6A14110175000 Bride *clampBride *clamp
-
7A920000601410 Hex Bolt M6 X 14Hex Bolt M6 X 14
