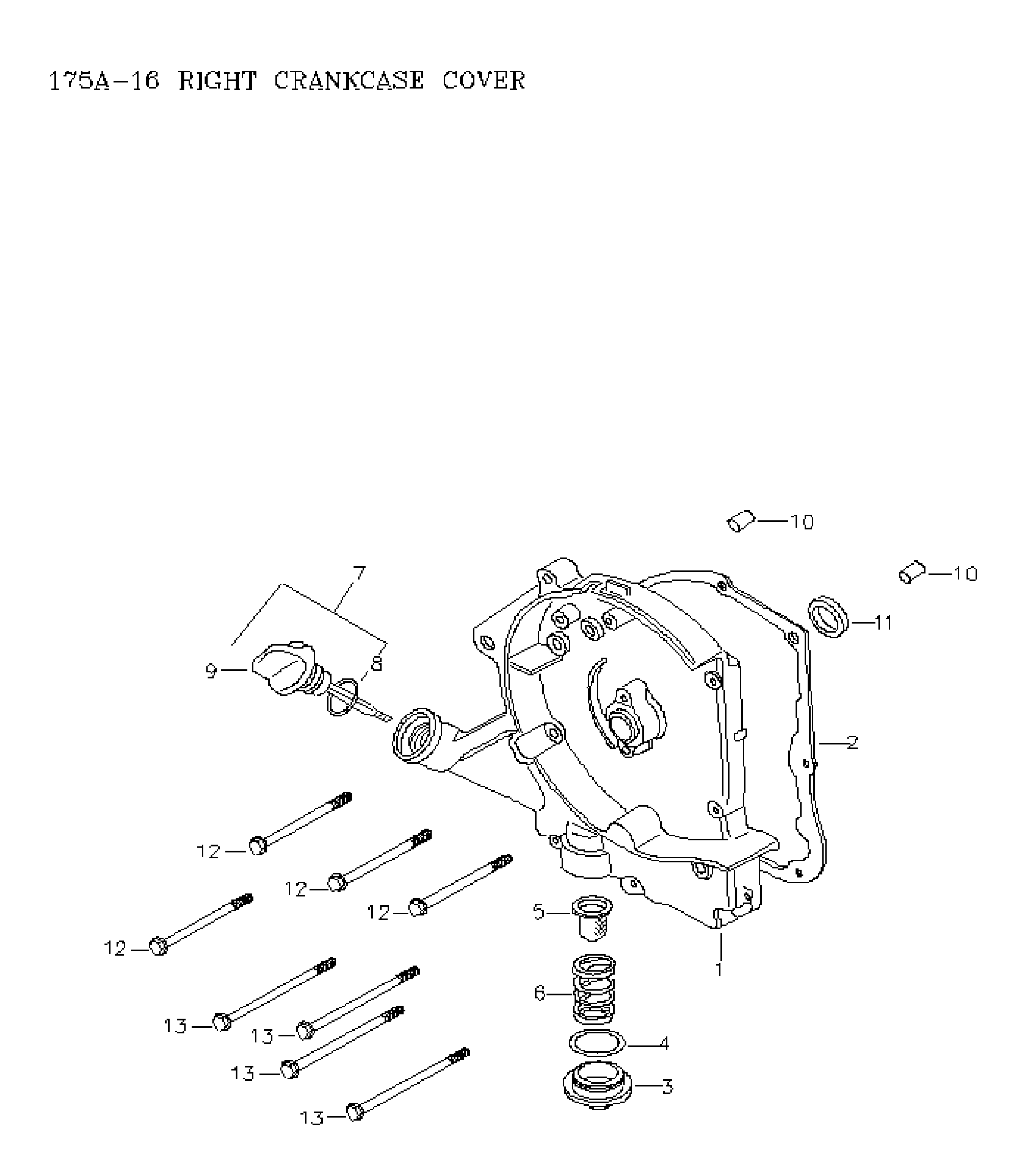

01- Crankcase Cover для BRP Mini DS 90 4-strokes - 2006
-
№АртикулНазвание
-
1A11330133000 Rh.crankcase CoverRh.crankcase Cover
-
2A11393133000 Crankcase GasketCrankcase Gasket
-
3A12361120000 Tappet Adjusting Hole Cap Ass'YTappet Adjusting Hole Cap Ass'Y
-
4A91330120000 Oil Ring (30.8 mm)Oil Ring (30.8 mm)
-
5A15421120000 Oil Filter ScreenOil Filter Screen
-
6A15426120000 Oil Filter SpringOil Filter Spring
-
7A1565A120000 Oil Level GaugeOil Level Gauge
-
8A91318108000 Oil RingOil Ring
-
10A9430108140 Dowel Pin (8 X 14)Dowel Pin (8 X 14)
-
11A9650016305 Anneau Etanche *seal-oilAnneau Etanche *seal-oil
-
12A960000608508 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
13A960000610008 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
