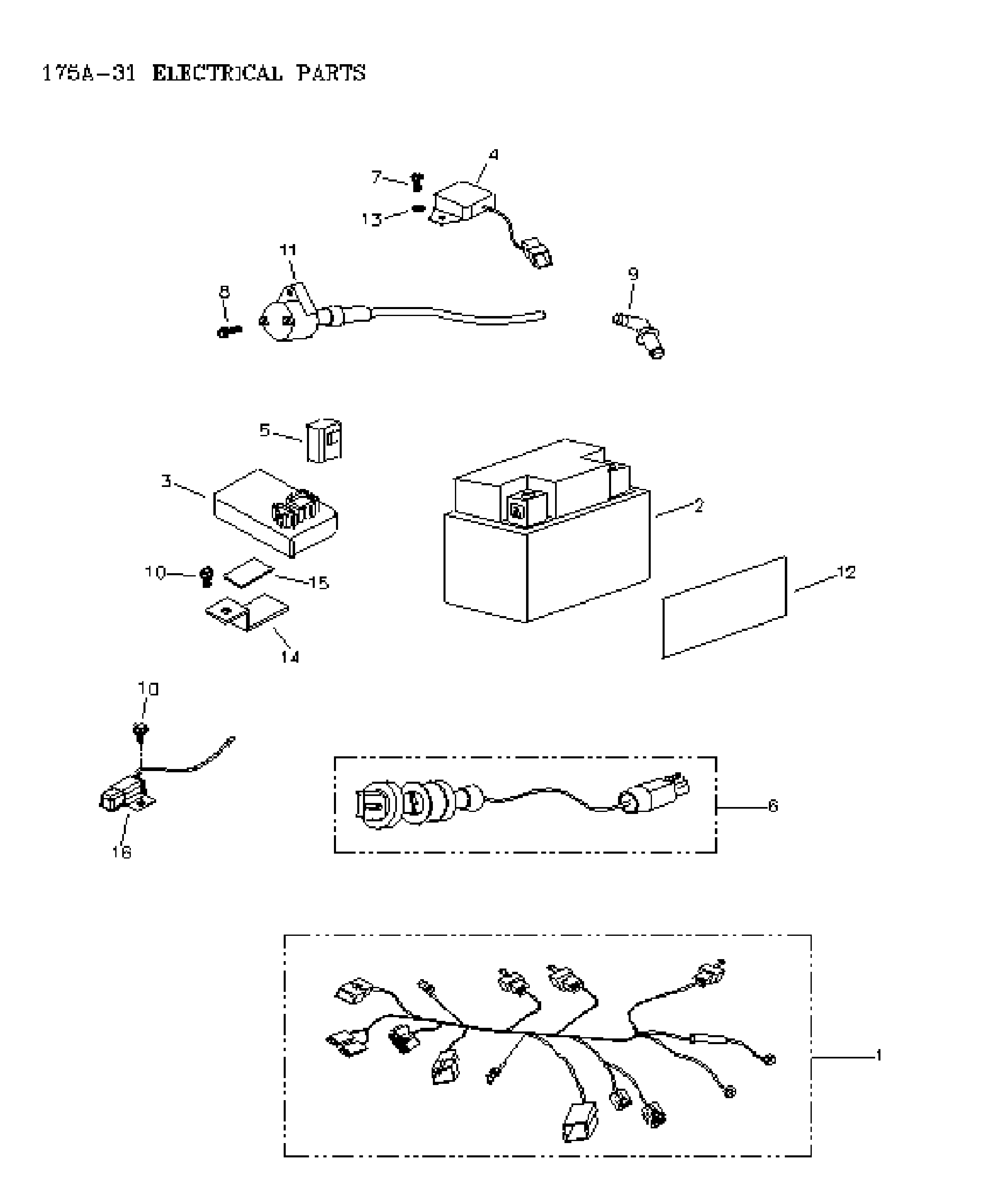

10- Electrical System для BRP Mini DS 90 4-strokes - 2006
-
№АртикулНазвание
-
1A32100238000 Main Wire HarnessMain Wire Harness
-
2A31500166000 BatteryBattery
-
3A3041017500A C.d.i. UnitC.d.i. Unit
-
4A31600110000 Regulator RectifierRegulator Rectifier
-
5A38501152000 Starting RelayStarting Relay
-
6A3510016600A Main Switch Ass'YMain Switch Ass'Y
-
7A9350005012 Pan Head Phillips Bolt M5x12Pan Head Phillips Bolt M5x12
-
8A960000502408 Hex Washer Face Bolt M5 X 24Hex Washer Face Bolt M5 X 24
-
9A30700168000 Spark Plug CapSpark Plug Cap
-
10A960000601210G Hex Washer Face Bolt M6 X 12Hex Washer Face Bolt M6 X 12
-
11A30510175000 High Tension CoilHigh Tension Coil
-
12A87723116000 ''Warning Label Battery''Warning Label Battery
-
13A941110612015 Spring Washer (6 X 12 X 1.5)Spring Washer (6 X 12 X 1.5)
-
14A54317175000 Battery BracketBattery Bracket
-
15A30414175000 Sponge PadSponge Pad
