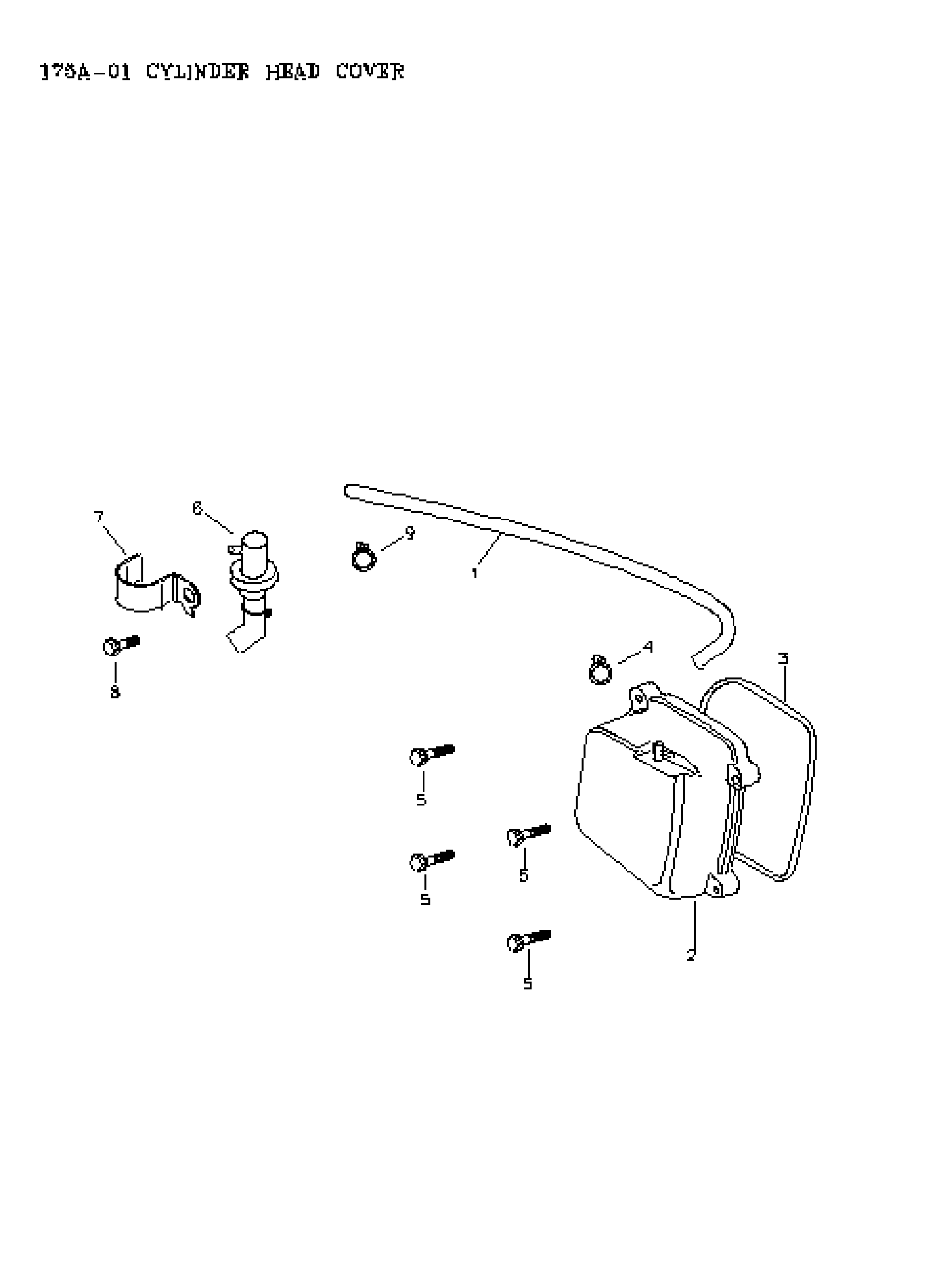

01- Cylinder Head Cover для BRP Mini DS 90 4-strokes - 2006
-
№АртикулНазвание
-
1A11210120000 Breather TubeBreather Tube
-
2A12310133000 Cylinder Head CoverCylinder Head Cover
-
3A12391133000 Cylinder Head Cover GasketCylinder Head Cover Gasket
-
4A9451008000 ClipClip
-
5A960000602508 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
6A1736A175000 Catch Tank Compover GasketCatch Tank Compover Gasket
-
7A17371175000 ClipClip
-
8A9600006012 Hex Washer Face Bolt M6 X 12Hex Washer Face Bolt M6 X 12
-
9A9451012000 ClipClip
Все узлы модели:
- 01- Air Cleaner
- 01- Camshaft, Valve
- 01- Crankcase
- 01- Crankcase Cover
- 01- Crankcase Cover
- 01- Crankshaft And Pistons
- 01- Crankshaft, Piston And Cylinder
- 01- Cylinder Head
- • 01- Cylinder Head Cover
- 01- Exhaust System
- 01- Fan Cover
- 02- Carburetor
- 02- Fuel System
- 02- Oil Pump
- 03- Magneto
- 04- Electric Starter
- 05- Chain Tensioner
- 05- Drive Pulley, Kick Start
- 05- Pulley System
- 05- Transmission
- 06- Front Brake
- 06- Rear Brake
- 07- Front Suspension
- 07- Steering System
- 07- Steering System
- 08- Drive System, Rear
- 08- Rear Wheel
- 09- Body And Accessories
- 09- Frame
- 09- Frame, System
- 10- Electrical System
