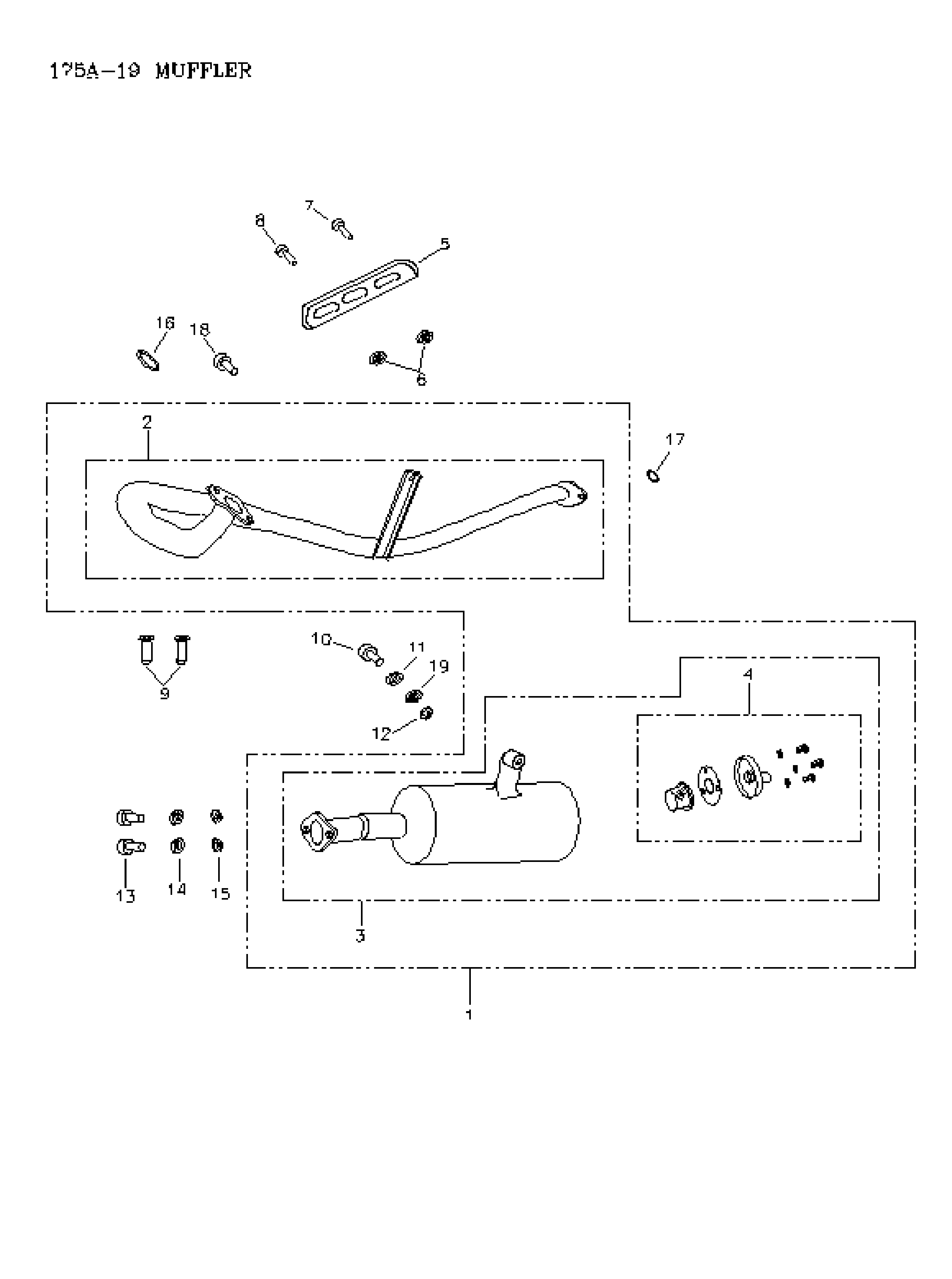

01- Exhaust System для BRP Mini DS 90 4-strokes - 2006
-
№АртикулНазвание
-
1A18300238000 MufflerMuffler
-
2A18311238000 Exhaust Pipe FrontExhaust Pipe Front
-
3A1832117500A Muffler + Spark ArrMuffler + Spark Arr
-
4A18330152000 Spark ArresterSpark Arrester
-
5A18319152000 Protective CoverProtective Cover
-
6A18292104000 Muffler Shroud PackingMuffler Shroud Packing
-
7A960000603008L Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
8A960000602008L Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
9A9030106000 Cap NutCap Nut
-
10A960000803512G Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
11A941010814020G Washer PlainWasher Plain
-
12A9035008000 Nylon Insert Lock Nut M8Nylon Insert Lock Nut M8
-
13A960000602210G Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
14A941010614020G Washer PlainWasher Plain
-
15A9405006000G Hex.flange Nut With SerrationHex.flange Nut With Serration
-
16A18291133000 Joint De Tuyau *gasket-pipeJoint De Tuyau *gasket-pipe
-
17A18291101000 Exhaust Pipe GasketExhaust Pipe Gasket
-
18207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
19A941110814520 Spring WasherSpring Washer
