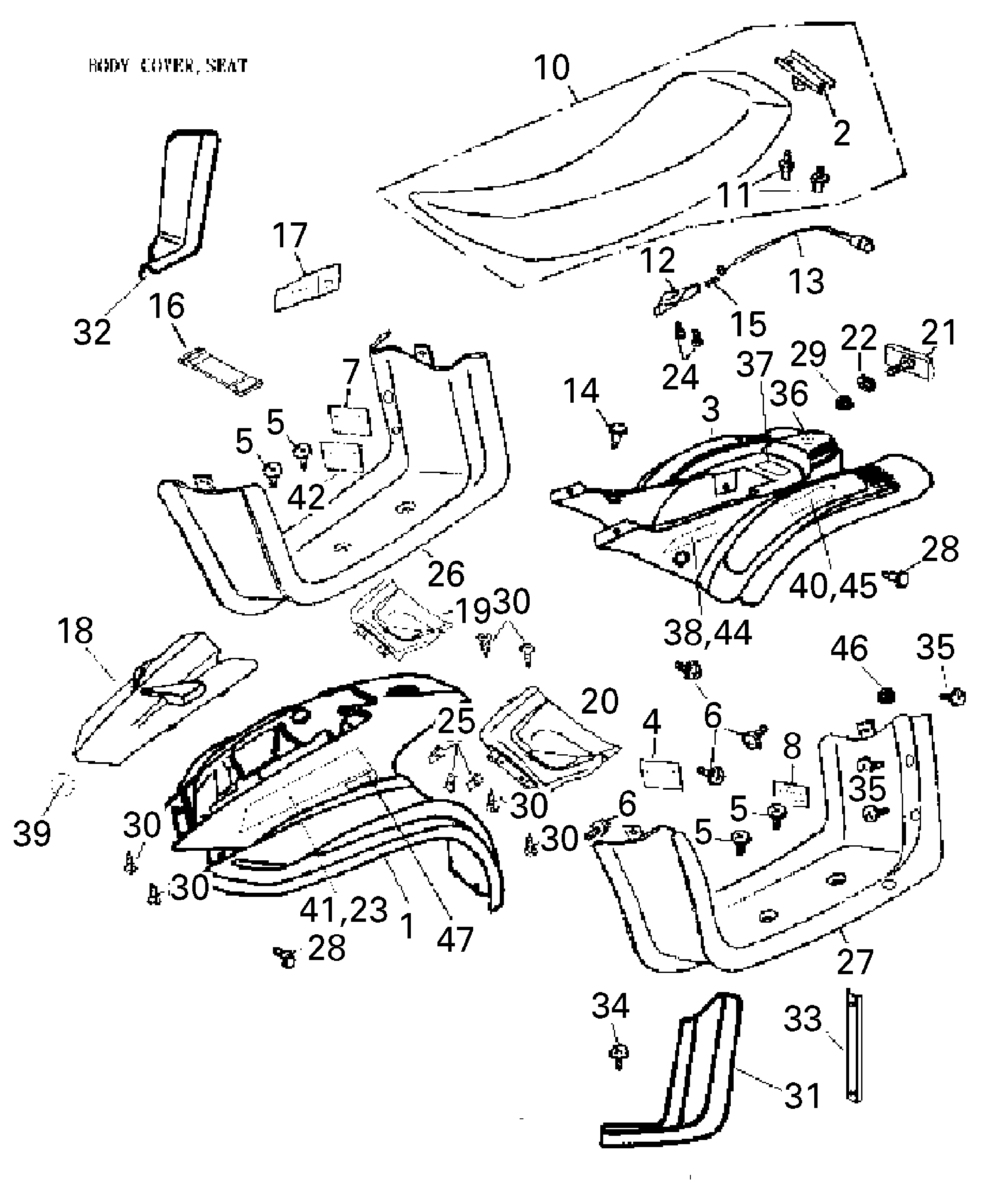

09- Body And Accessories для BRP Mini DS 90 4-strokes - 2006
-
№АртикулНазвание
-
1A64301166000RD Front CoverFront Cover
-
2A77201145000 Seat BracketSeat Bracket
-
3A83400172000RD Rear CoverRear Cover
-
4704900302 ''Warning Decal Atv General''Warning Decal Atv General
-
5A9370106015S Pan Flat Head Phillips Bolt M6 X 15Pan Flat Head Phillips Bolt M6 X 15
-
6A9380006020S Pan Head Phillips Bolt M6 X 20Pan Head Phillips Bolt M6 X 20
-
7704900294 ''Warning Label Under 12''Warning Label Under 12
-
8704900005 Warning Label, PassengerWarning Label, Passenger
-
9A903440600A U Plate Nut (6 mm)U Plate Nut (6 mm)
-
10A77200166000 Seat Ass'YSeat Ass'Y
-
11A77203145000 Seat BoltSeat Bolt
-
12A77230145000 Seat Lock Ass'YSeat Lock Ass'Y
-
13A77212145000 Seat Release CableSeat Release Cable
-
14A901110601218C Ladder Bolt (6 X 14 X 2.5)Ladder Bolt (6 X 14 X 2.5)
-
15A77213145000 Reset SpringReset Spring
-
16A91350145001 Rubber StripRubber Strip
-
17A50120120000 Tool BagTool Bag
-
18A64302166001BK Front Visor, BlackFront Visor, Black
-
19A83504166000BK RH Body Cover TrimRH Body Cover Trim
-
20A83604166000BK LH Body Cover TrimLH Body Cover Trim
-
21A33741133000 ReflectorReflector
-
22A941010615010 Plain Washer (6 X 15 X 1)Plain Washer (6 X 15 X 1)
-
23A8770017200B Sticker SetSticker Set
-
24A960000601210G Hex Washer Face Bolt M6 X 12Hex Washer Face Bolt M6 X 12
-
25A903440500A U Plate Nut (4 mm)U Plate Nut (4 mm)
-
26A64312166000 RH Floor PanelRH Floor Panel
-
27A64313166000 LH Floor PanelLH Floor Panel
-
28A901110601418G Ladder BoltLadder Bolt
-
29A9035006000 Nylon Nut M6Nylon Nut M6
-
30A9390305012 Tapping Screw Truss Head Phillips M5 X 1Tapping Screw Truss Head Phillips M5 X 1
-
31A64331166000 LH Floor Panel Protect CoverLH Floor Panel Protect Cover
-
32A64332166000 RH Floor Panel Protect CoverRH Floor Panel Protect Cover
-
33A64333166000 Floor Protect Cover BracketFloor Protect Cover Bracket
-
34A9370106037G Pan Flat Head Phillips Bolt M6 X 37Pan Flat Head Phillips Bolt M6 X 37
-
35A9370106015G Pan Flat Head Phillips Bolt M6 X 15Pan Flat Head Phillips Bolt M6 X 15
-
36219902468 Logo BRPLogo BRP
-
38A8770017200B Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47
-
39A8770017200B Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47
-
40A8770017200B Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47
-
41A8770017200B Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47
-
42704900293 ''Warning Label Tire Pressure''Warning Label Tire Pressure
-
43A8770017200B Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47
-
44A8770017200B Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47
-
45A8770017200B Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47
-
46233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
47A8770017200B Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47Decal Kit. Includes 38, 39, 40, 41, 43, 44, 45 et 47
