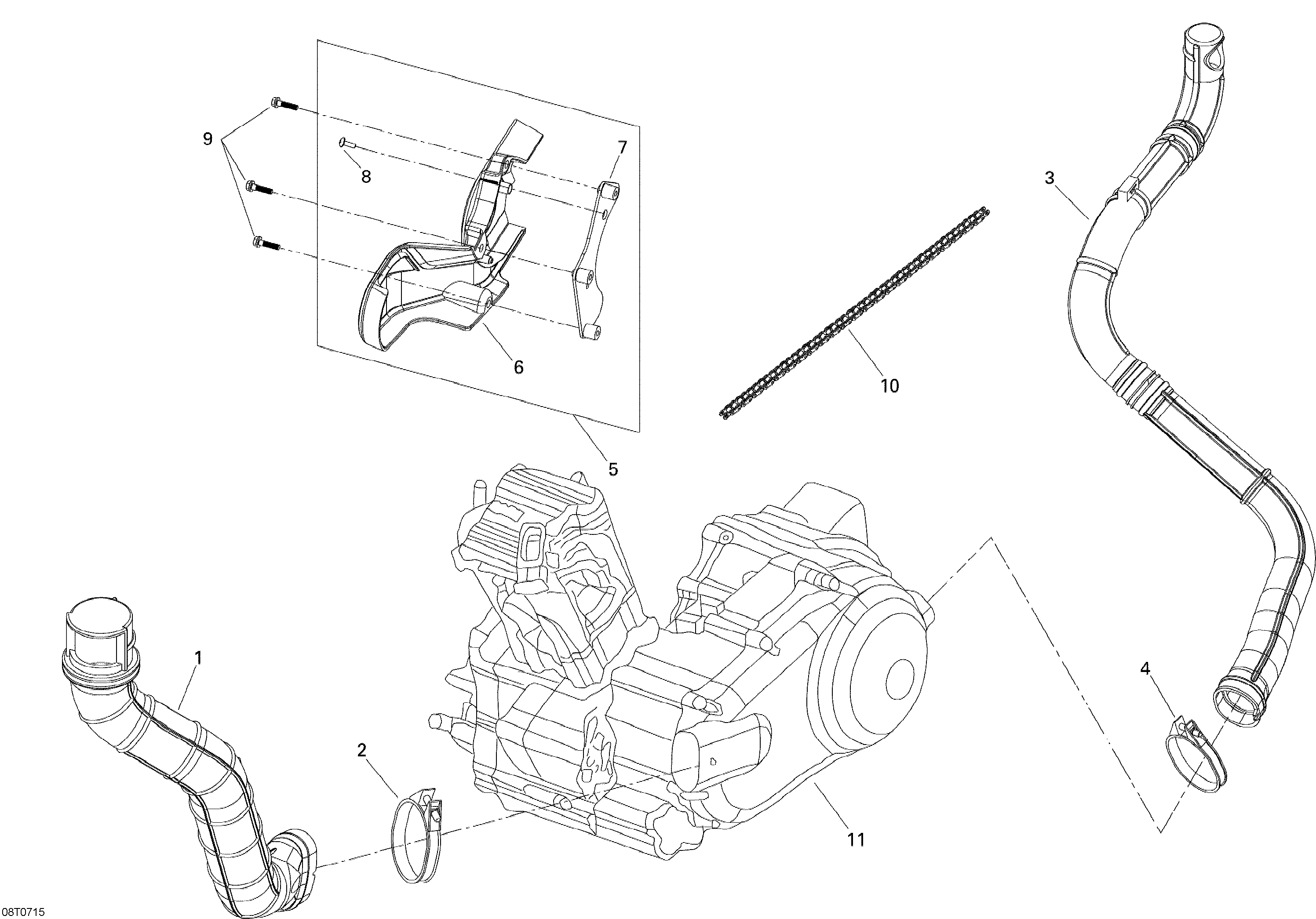

01- Engine для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
1S11345RCA000 Primary Air IntakePrimary Air Intake
-
2S11346M9Q000 Gemi ClampGemi Clamp
-
3S11346RB1000 Air OutletAir Outlet
-
4293650090 Norma Gear ClampNorma Gear Clamp
-
6S40105RCA000 Chain ProtectorChain Protector
-
7S40106RCA000 Chain Protector SupportChain Protector Support
-
8S9390334380 Tapping Screw M4 X 12Tapping Screw M4 X 12
-
9S938910502807 Flanged Bolt M5 X 28Flanged Bolt M5 X 28
-
10S40100RCA000 Drive ChainDrive Chain
-
11SUB25AAENGINE Engine Ds 250Engine Ds 250
