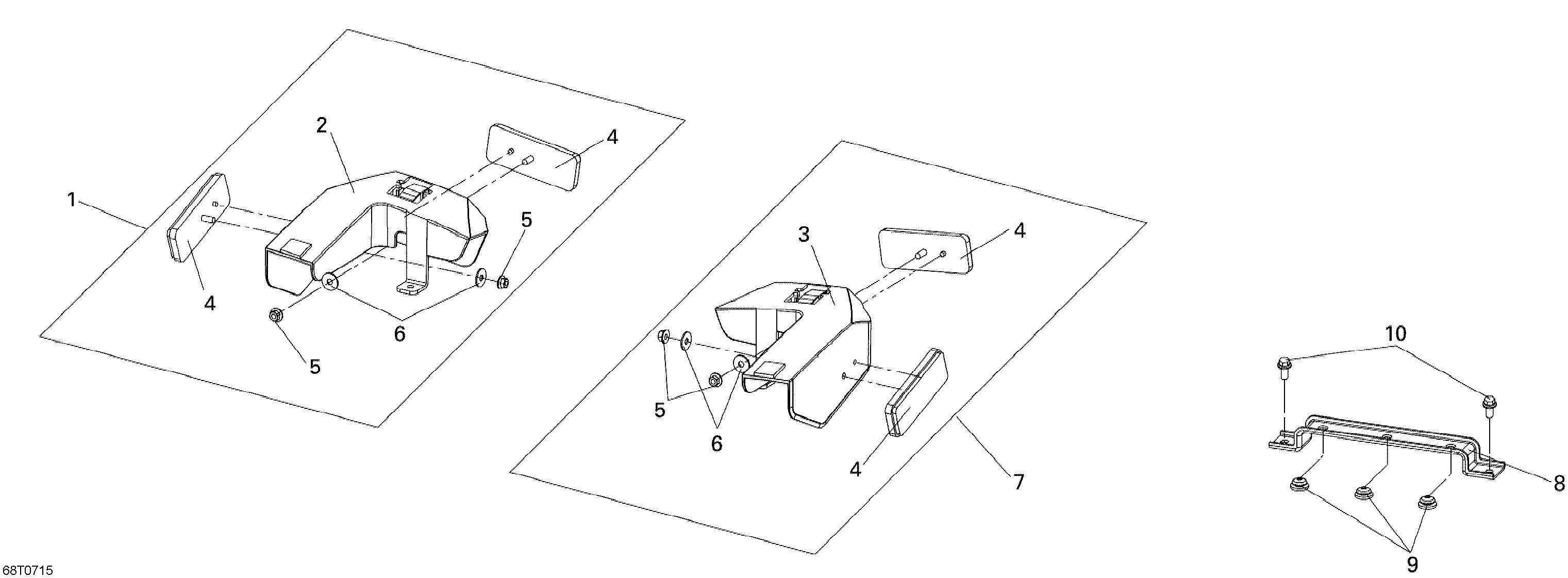

09- Rear Reflectors для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
2S8031ARCB000 RH Reflector SupportRH Reflector Support
-
3S8031BRCB000 GA Reflector SupportGA Reflector Support
-
4S33741M9A000 Rear Reflex ReflectorRear Reflex Reflector
-
5S9405005000 Flanged Nut 5 mmFlanged Nut 5 mm
-
6S9410305800 WasherWasher
-
8S50324RCA000 Battery BracketBattery Bracket
-
9S83618MKA000 Battery GrommetBattery Grommet
-
10S934040601607 Washer Bolt M6 X 16Washer Bolt M6 X 16
