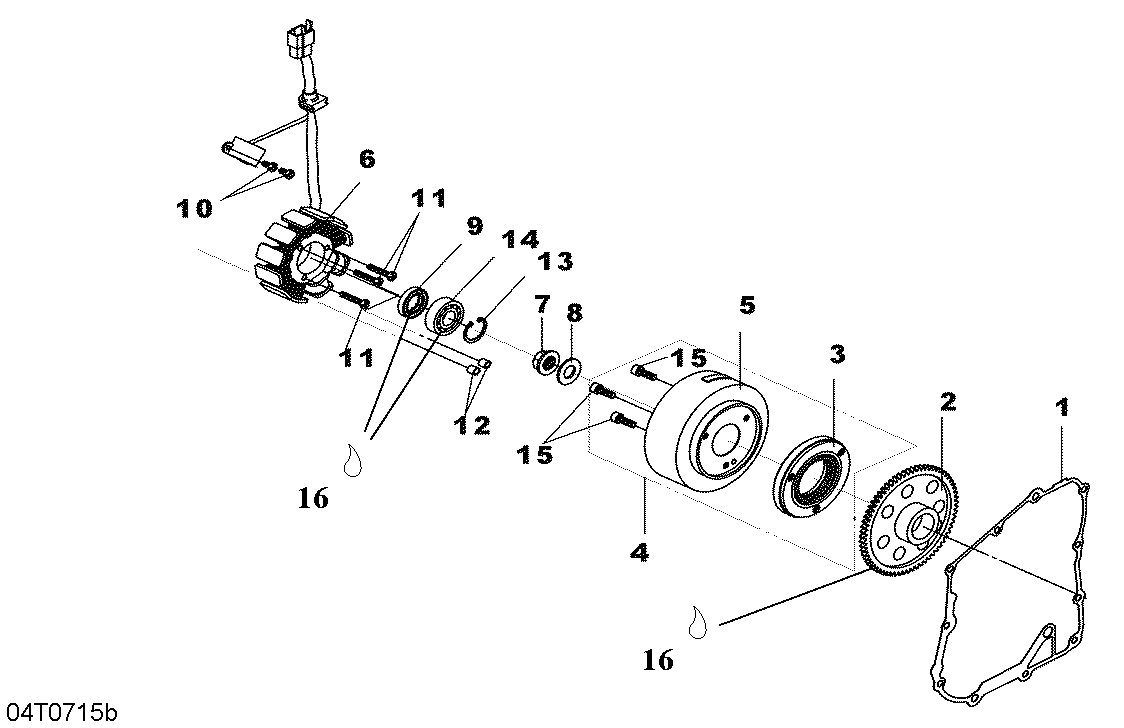

03- Magneto для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
1S11394RB1000 Cover GasketCover Gasket
-
2S28110HMA000 Starter WheelStarter Wheel
-
3S2812AHMA000 One Way ClutchOne Way Clutch
-
4S3110ARB1000 Generator Flywheel Ass'yGenerator Flywheel Ass'y
-
6S31120RB1000 Stator Ass'yStator Ass'y
-
7S90201KR8751 Flanged Nut 14 mmFlanged Nut 14 mm
-
8S90401KJ9000 Thrust WasherThrust Washer
-
9S91202HMA000 Oil SealOil Seal
-
11S93500060400A Pan Screw M5 X 16Pan Screw M5 X 16
-
12S9430108140 Dowel PinDowel Pin
-
13S9452032000 CirclipCirclip
-
14S961406201310 Ball BearingBall Bearing
