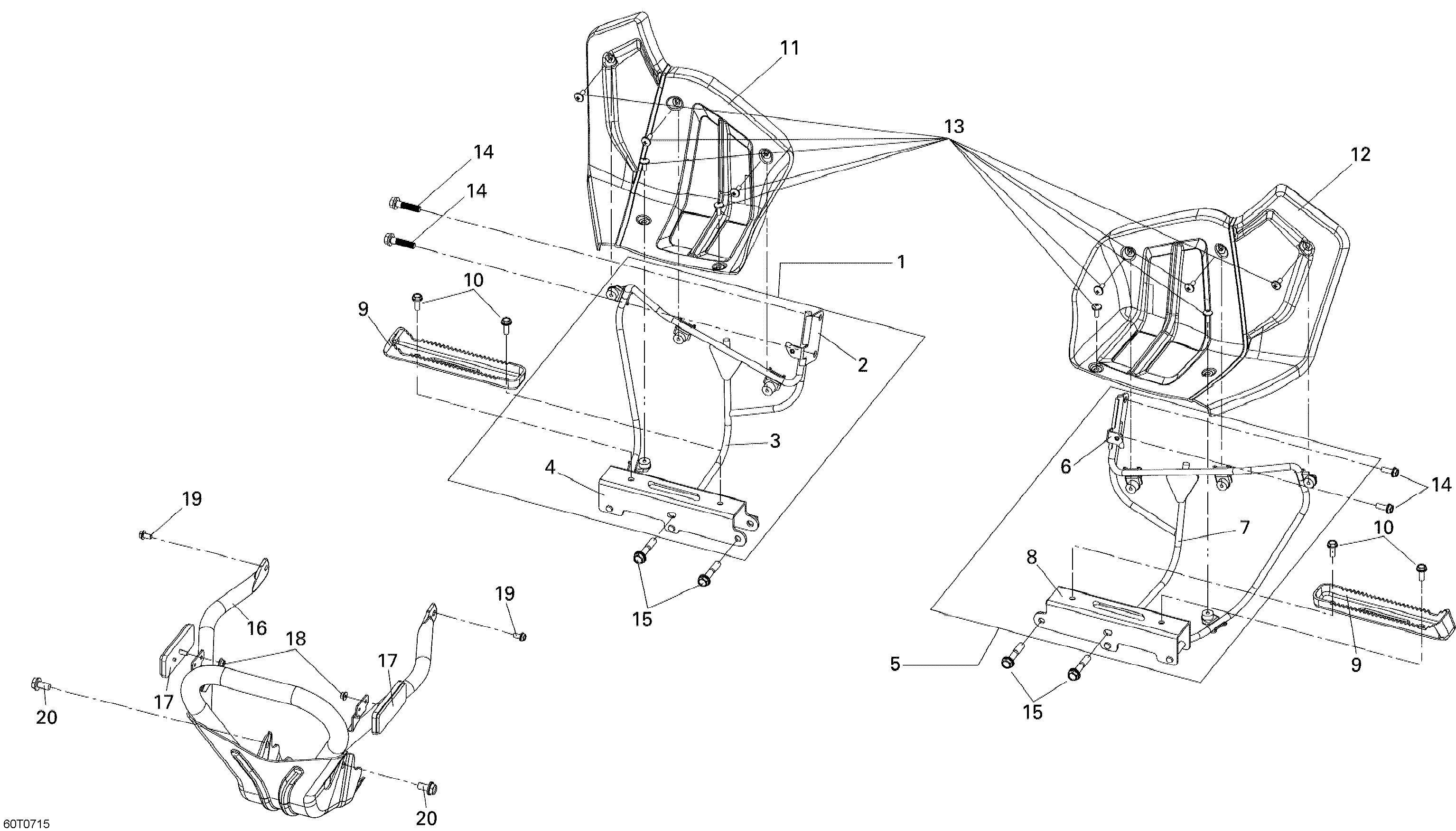

09- Front Bumper And Footrests для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
1S5054ARCA000 RH Footrest BarRH Footrest Bar
-
5S5055ARCA000 LH Footrest BarLH Footrest Bar
-
9S50620RCA000 Foot PegFoot Peg
-
10S958010601607 Flanged Bolt M6 X 16Flanged Bolt M6 X 16
-
11S64310RCA000 RH FootrestRH Footrest
-
12S64410RCA000 LH FootrestLH Footrest
-
13S90117H9A000 Washer Screw M5 X 14Washer Screw M5 X 14
-
14S958010601607 Flanged Bolt M6 X 16Flanged Bolt M6 X 16
-
15S958010805007 Flanged Bolt M8 X 50Flanged Bolt M8 X 50
-
16S50400RCB000 Front BumperFront Bumper
-
17S33741M9A000 ReflectorReflector
-
18S9405050000 Hex. Flanged Nut 5 mmHex. Flanged Nut 5 mm
-
19S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
20S958010801407 Flanged Bolt M8 X 14Flanged Bolt M8 X 14
