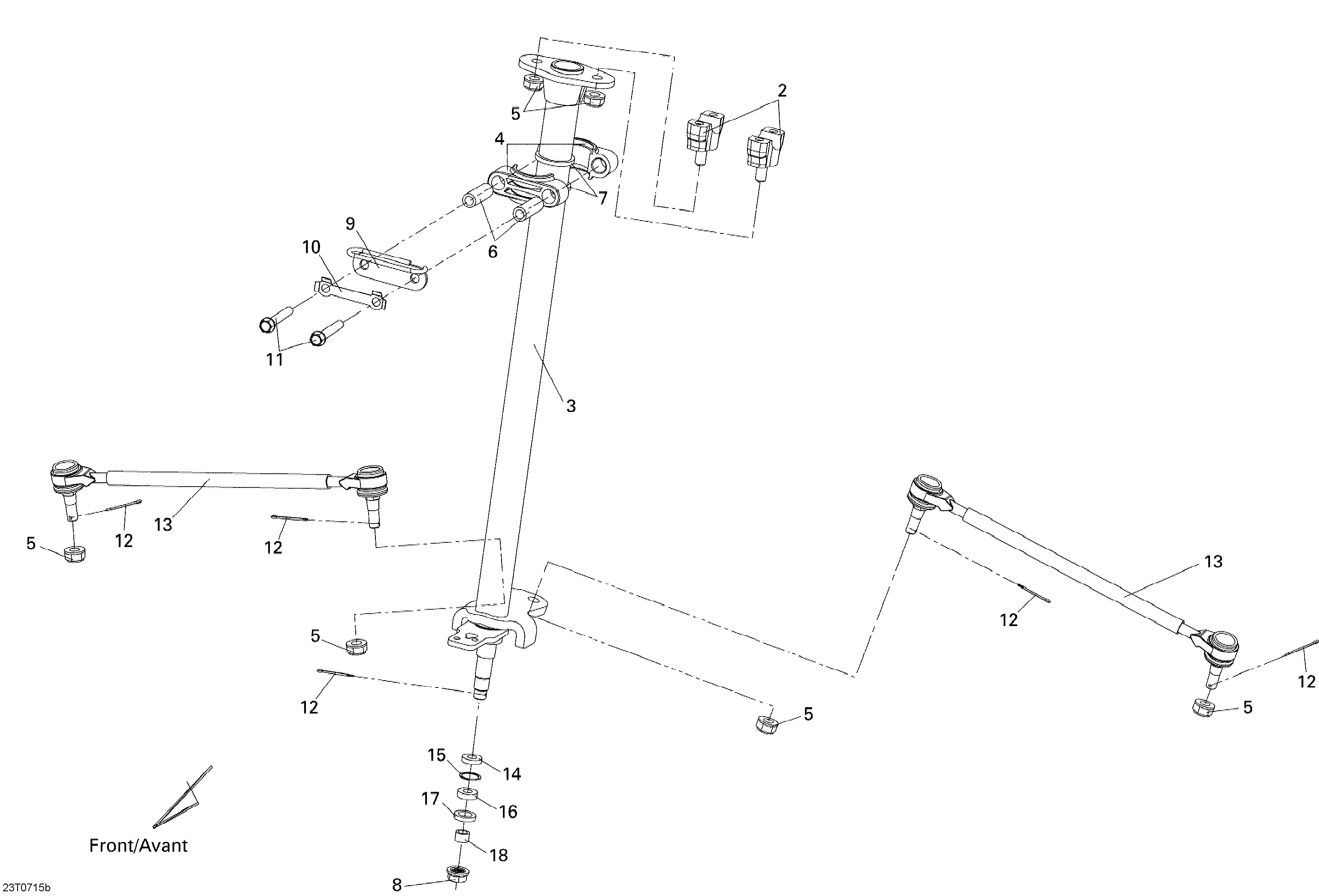

07- Steering Linkage для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
2S53121RCA000 Handle Bar Bottom ClampHandle Bar Bottom Clamp
-
3S53200RCA000 Steering ColumnSteering Column
-
4S53202RCA000 Half BushingHalf Bushing
-
5S90304M9Q800 Hex. Flanged Nut 10 mmHex. Flanged Nut 10 mm
-
6S53203RCA000 BushingBushing
-
7S91208RCA000 Oil SealOil Seal
-
8S90305GW0901A Self Lock Nut 14 mmSelf Lock Nut 14 mm
-
9S53204RCA000 Steering Column Holder PlateSteering Column Holder Plate
-
10S53206RCA000 Lock TabLock Tab
-
11S958010806007 Flanged Bolt M8 X 60Flanged Bolt M8 X 60
-
12S9420125250 Split PinSplit Pin
-
13S50258RCA000 Tie-rod Ass'yTie-rod Ass'y
-
14S91210RCA000 Oil SealOil Seal
-
15S9452032000 CirclipCirclip
-
16S961306002310 Ball BearingBall Bearing
-
17S91211RCA000 Oil SealOil Seal
-
18S53207RCA000 Steering Column CollarSteering Column Collar
