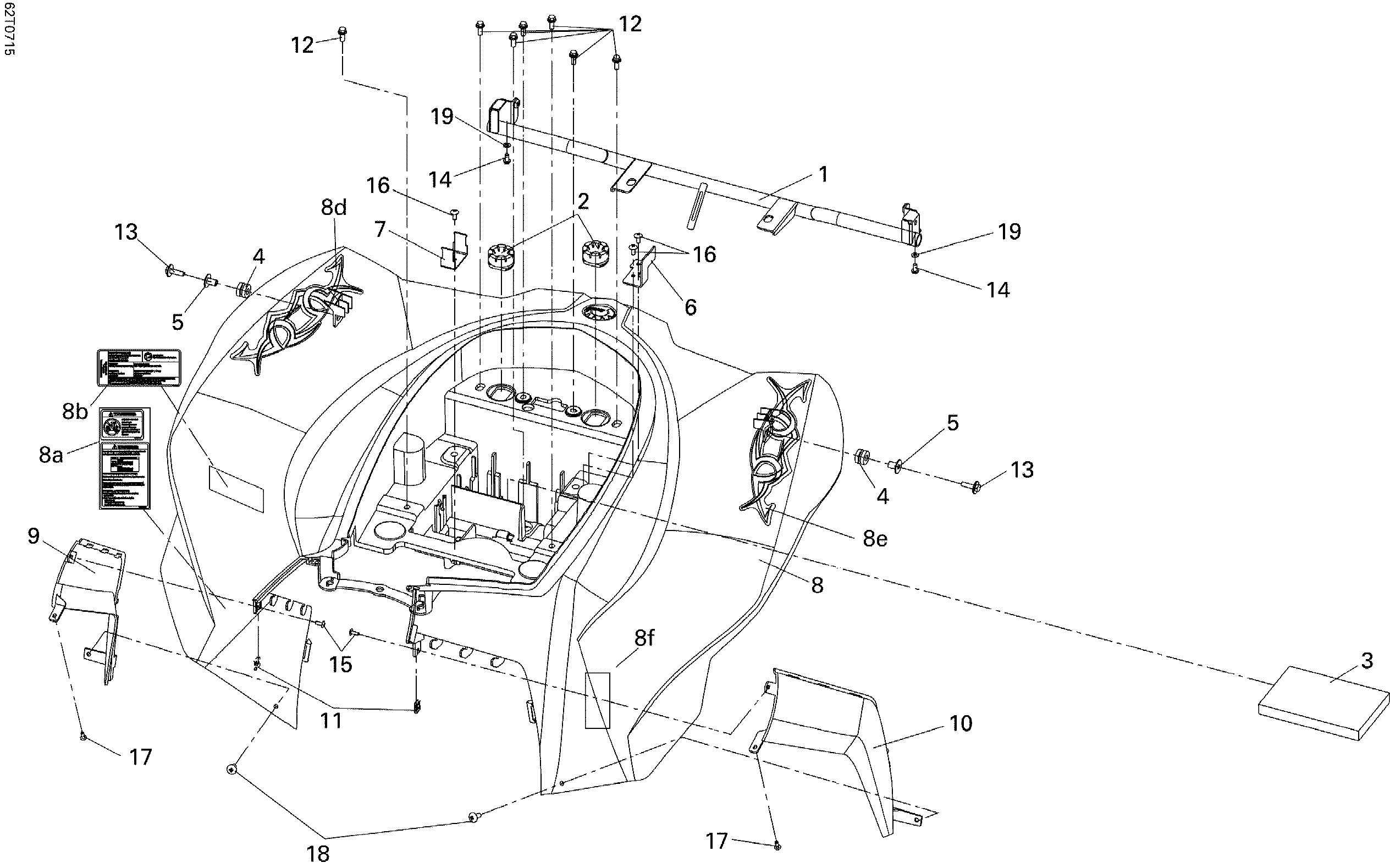

09- Rear Fender для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
1S50530RCB000 Rear Fender SupportRear Fender Support
-
2S77212RCA000 Rubber CushionRubber Cushion
-
3S80108RCA000 Sponge RubberSponge Rubber
-
4S80103X01000 Rubber WasherRubber Washer
-
5S80104X01000 Fender CollarFender Collar
-
6S80107RCA000 Cdi StayCdi Stay
-
7S80109RB1000 Mag StayMag Stay
-
8S8010GRCB700 Rear Fender Ass'y. NA, Includes 8a,b,c,d,eRear Fender Ass'y. NA, Includes 8a,b,c,d,e
-
8S8010GRCC700 Rear Fender Ass'y. International, Includes 8a,b,c,d,e,fRear Fender Ass'y. International, Includes 8a,b,c,d,e,f
-
8aS8750BRCA000 Warning Label BWarning Label B
-
8bS87514RCA700 Emission Control LabelEmission Control Label
-
8dS87133RCA000 RH Rear Fender DecalRH Rear Fender Decal
-
8eS87132RCA000 LH Rear Fender DecalLH Rear Fender Decal
-
8fS87506RCA000 International Warning Decal. InternationalInternational Warning Decal. International
-
9S83525RCA000 RH Side CoverRH Side Cover
-
10S83625RCA000 LH Side CoverLH Side Cover
-
11S90302V02000 Clip NutClip Nut
-
12S934020501207 Washer Bolt M5 X 12Washer Bolt M5 X 12
-
13S934040602507 Washer BoltWasher Bolt
-
14S938910501207 Flanged Bolt M5 X 12Flanged Bolt M5 X 12
-
15S9390334380 Tapping Screw M4 X 12Tapping Screw M4 X 12
-
16S9390335280 Tapping Screw M5 X 12Tapping Screw M5 X 12
-
17S9390344380 Tapping ScrewTapping Screw
-
18S90199G03000 Washer Screw M5 X 22Washer Screw M5 X 22
-
19S9411105800 Spring Washer 5 mmSpring Washer 5 mm
