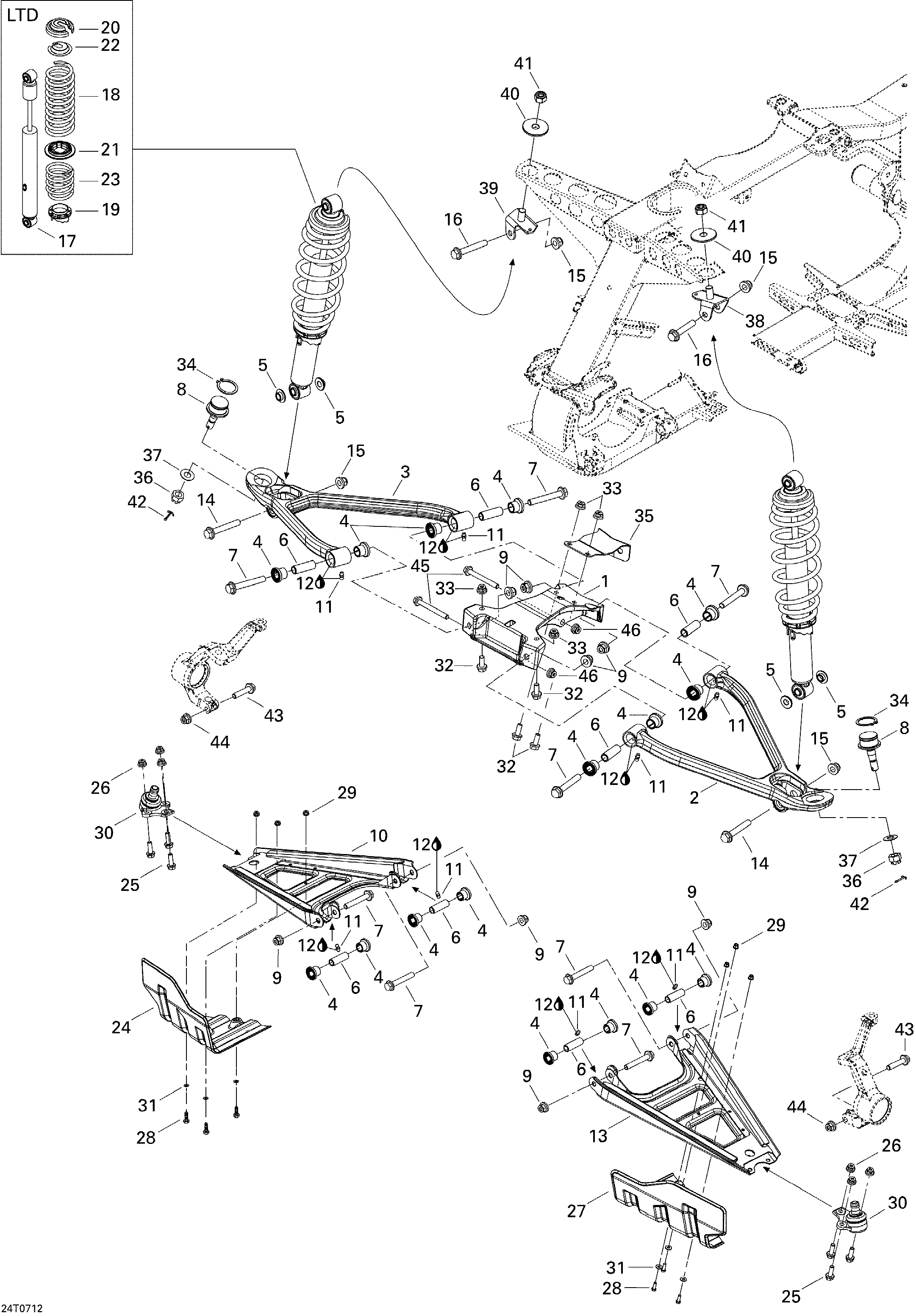

07- Front Suspension для BRP Outlander MAX 800 LTD 4 X 4 - 2007
-
№АртикулНазвание
-
1706200476 Upper Arm BracketUpper Arm Bracket
-
2706200554 LH Upper ArmLH Upper Arm
-
3706200555 RH Upper ArmRH Upper Arm
-
4706200181 CushionCushion
-
5706200423 Spacer BushingSpacer Bushing
-
6706200182 Inner BushingInner Bushing
-
7207607046 Hex Flanged Screw M10 X 70Hex Flanged Screw M10 X 70
-
8706200091 Ball JointBall Joint
-
9233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
10706200509 LH Suspension Arm, BlackLH Suspension Arm, Black
-
11408200700 Grease FittingGrease Fitting
-
12293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
13706200509 LH Suspension Arm, BlackLH Suspension Arm, Black
-
14207606546 Hex Flanged Screw M10 X 65Hex Flanged Screw M10 X 65
-
15233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
16207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
17706200408 Front ShockFront Shock
-
18706200566 Front SpringFront Spring
-
19706000294 Adjuster RingAdjuster Ring
-
20503140600 Spring StopperSpring Stopper
-
21706000472 Spring SpacerSpring Spacer
-
22503141600 CapCap
-
23706200590 Front SpringFront Spring
-
24706200214 RH ProtectorRH Protector
-
25207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
26233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
27706200213 LH ProtectorLH Protector
-
28207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
29233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
30706200444 Joint AttachmentJoint Attachment
-
31391301700 WasherWasher
-
32207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
33233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
34293370009 Circlip 32 mmCirclip 32 mm
-
35706200405 Upper Arm BracketUpper Arm Bracket
-
36250100045 Nut M12Nut M12
-
37706200281 Hardened WasherHardened Washer
-
38706200440 LH Upper BracketLH Upper Bracket
-
39706200441 RH Upper BracketRH Upper Bracket
-
40706200490 SpacerSpacer
-
41232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
42211400017 Cotter PinCotter Pin
-
43207604544 Hex Flanged Screw M10 X 45Hex Flanged Screw M10 X 45
-
44233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
45207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
46233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
