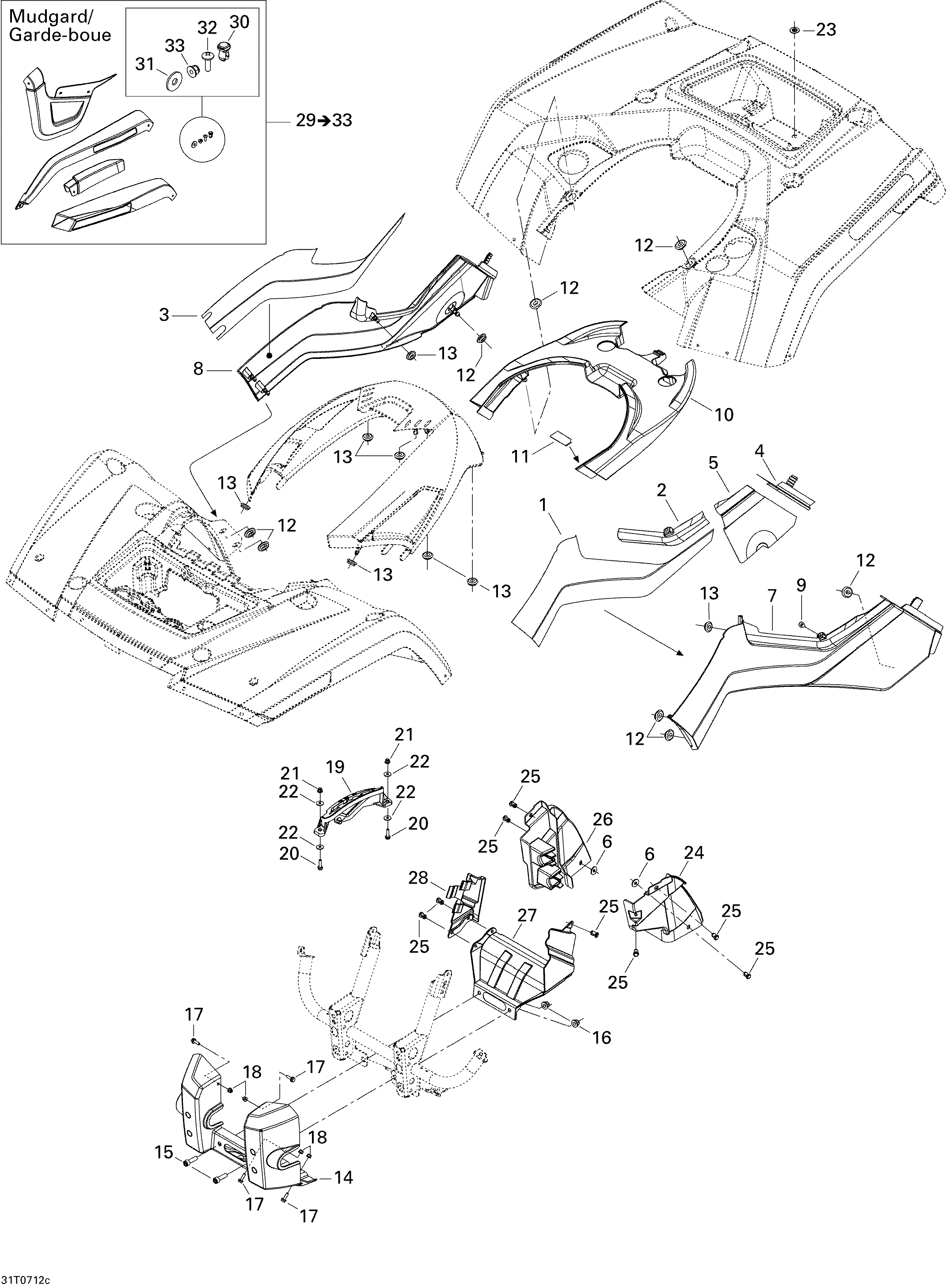

09- Body And Accessories 3 для BRP Outlander MAX 800 LTD 4 X 4 - 2007
-
№АртикулНазвание
-
1705001990 LH Reflective SheetLH Reflective Sheet
-
2705001989 Reflective SheetReflective Sheet
-
3705002126 RH Reflective SheetRH Reflective Sheet
-
4705002183 LH Reflective SheetLH Reflective Sheet
-
5705002184 LH Reflective SheetLH Reflective Sheet
-
6506151252 WasherWasher
-
7705002321 LH Lateral Panel, GrisLH Lateral Panel, Gris
-
8705002319 RH Lateral Panel, GrisRH Lateral Panel, Gris
-
9293830005 Rubber Plug, BlackRubber Plug, Black
-
10705002323 Storage Tray, GrisStorage Tray, Gris
-
11705002185 Reflective SheetReflective Sheet
-
12705005156 Oblong WasherOblong Washer
-
13705002149 GrommetGrommet
-
14705001531 Front Protection PlateFront Protection Plate
-
15205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
16233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19705001532 Lever IndicatorLever Indicator
-
20207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
21233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
22224061201 Flat WasherFlat Washer
-
23414859400 CapCap
-
24705002125 LH Inner FenderLH Inner Fender
-
25293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
26705002124 RH Inner FenderRH Inner Fender
-
27705002134 LH DeflectorLH Deflector
-
28705002135 RH DeflectorRH Deflector
-
29715000298 Mudguard Kit (With Reflectors). Includes 29 to 33Mudguard Kit (With Reflectors). Includes 29 to 33
-
30293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
31234082410 Flat Washer 8 mmFlat Washer 8 mm
-
32211000123 Phillips Screw M6 X 20Phillips Screw M6 X 20
-
33233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
