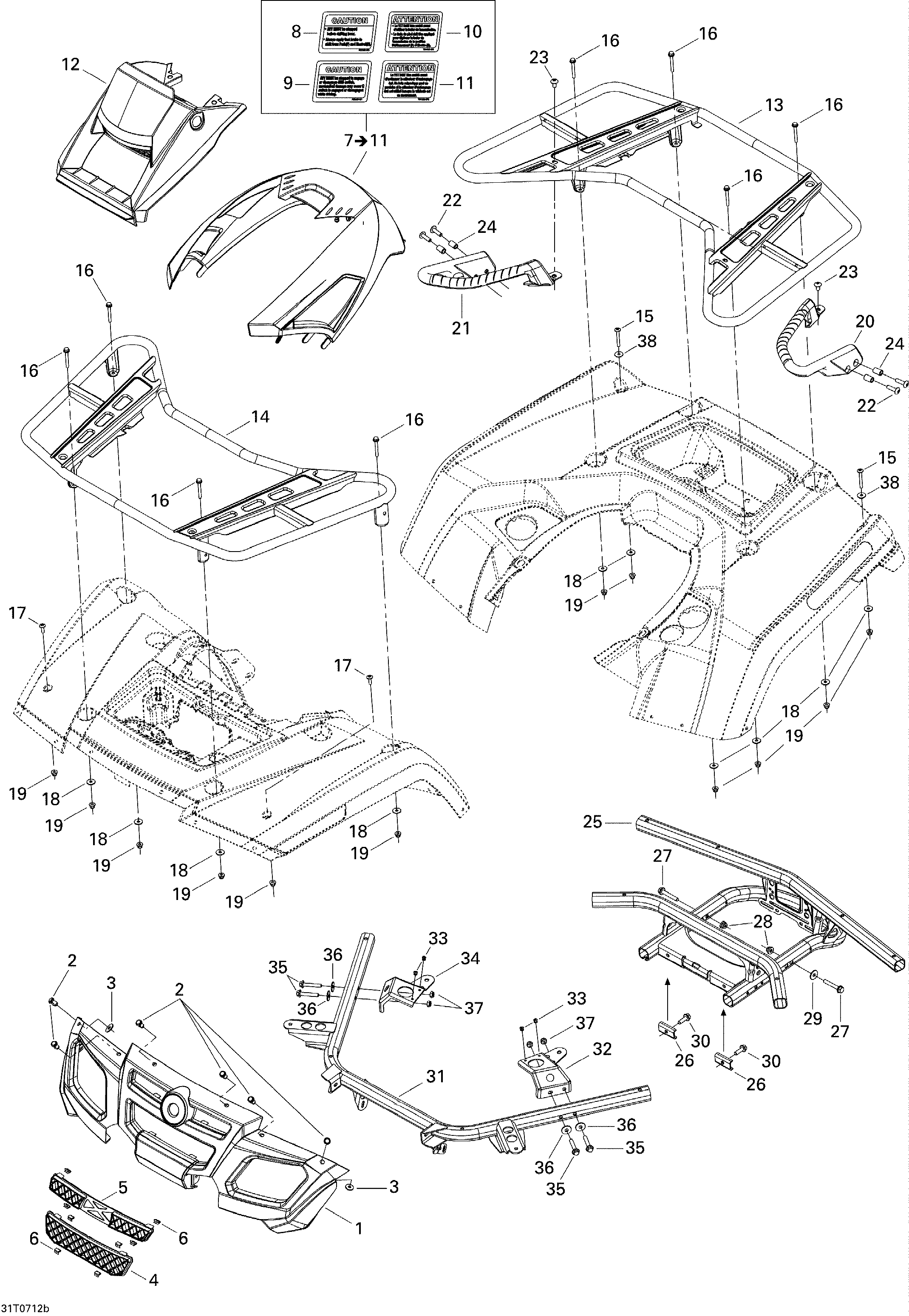

09- Body And Accessories 2 для BRP Outlander MAX 800 LTD 4 X 4 - 2007
-
№АртикулНазвание
-
1705002315 Front Fascia, Gray. Steel GrayFront Fascia, Gray. Steel Gray
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3506151252 WasherWasher
-
4705002283 Lower GrillLower Grill
-
5705002284 Upper GrillUpper Grill
-
6517302674 ClipClip
-
7703500665 Central Panel Kit, Gray. Includes 7 to 10, Steel GrayCentral Panel Kit, Gray. Includes 7 to 10, Steel Gray
-
7703500675 Central Panel Kit, Gray. Includes 7 to 10, Steel Gray, EuropeCentral Panel Kit, Gray. Includes 7 to 10, Steel Gray, Europe
-
8704900470 Caution Label, Shifting Lever. English VersionCaution Label, Shifting Lever. English Version
-
9704900471 Caution Label, 4wd Switch. English VersionCaution Label, 4wd Switch. English Version
-
10704900475 Caution Label, Shifting Lever. French VersionCaution Label, Shifting Lever. French Version
-
11704900476 Caution Label, 4wd Switch. French VersionCaution Label, 4wd Switch. French Version
-
12705001314 DashboardDashboard
-
12705002210 Dashboard. EuropeDashboard. Europe
-
13705001780 Rear Luggage RackRear Luggage Rack
-
14705001769 Front Luggage RackFront Luggage Rack
-
15250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
16207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
17250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
18224061201 Flat WasherFlat Washer
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20705001944 LH HandleLH Handle
-
21705001945 RH HandleRH Handle
-
22250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
23250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
24705002153 BushingBushing
-
25705001459 Rear SupportRear Support
-
26705001180 U ReinforcementU Reinforcement
-
27207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
28233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
29234082410 Flat Washer 8 mmFlat Washer 8 mm
-
30207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
31705001455 Front SupportFront Support
-
32705000692 LH Anchor PlateLH Anchor Plate
-
33390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
34705000693 RH Anchor PlateRH Anchor Plate
-
35207684544 Hex Flanged Screw M8 X 45Hex Flanged Screw M8 X 45
-
36234082410 Flat Washer 8 mmFlat Washer 8 mm
-
37232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
38250200040 Flat WasherFlat Washer
