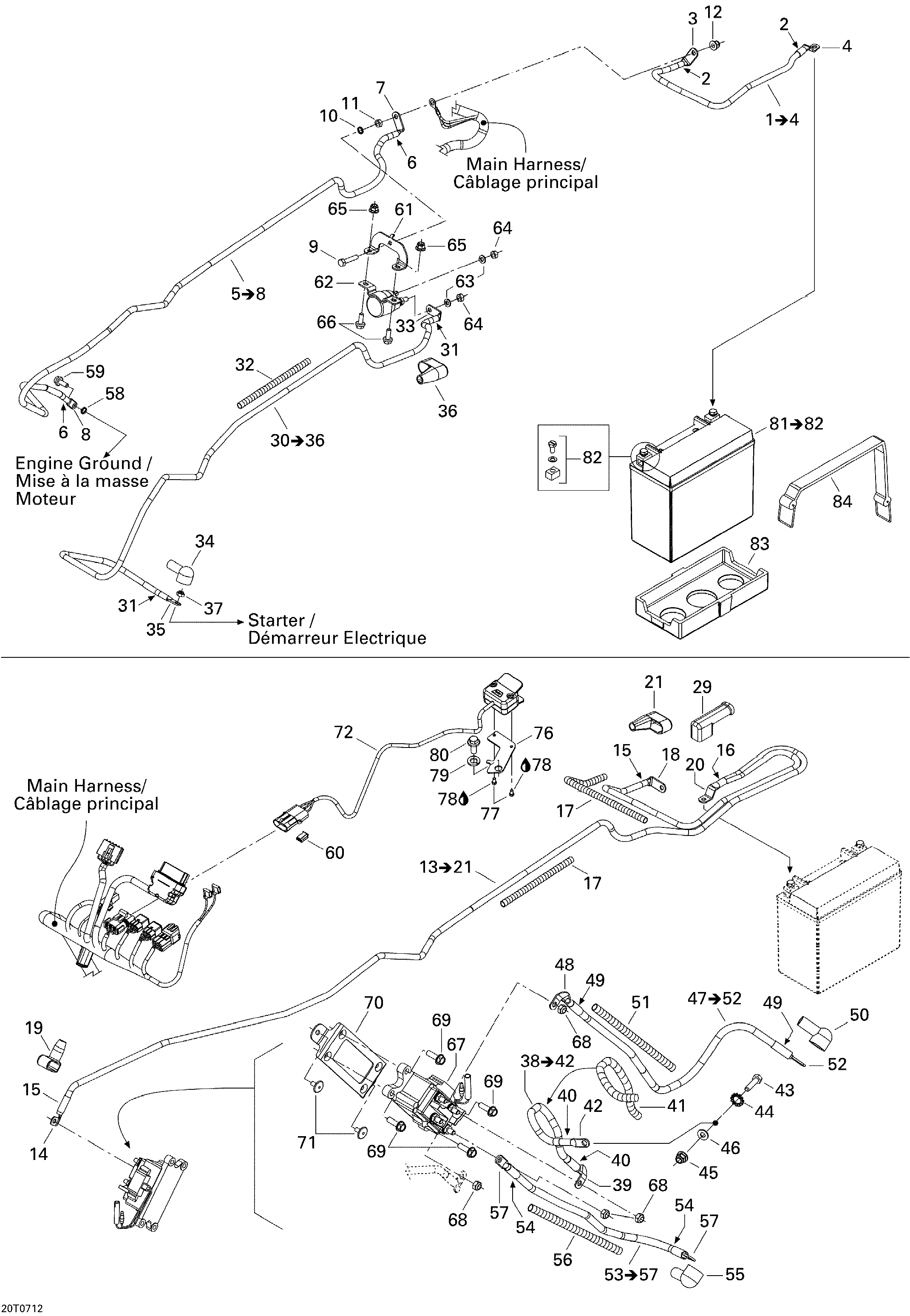

10- Electrical System для BRP Outlander MAX 800 LTD 4 X 4 - 2007
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 4Ground Cable, Battery/frame. Includes 1 to 4
-
2710000483 Shrink TubingShrink Tubing
-
3710000508 Open BarrelOpen Barrel
-
4710000518 Open BarrelOpen Barrel
-
5710000844 Ground Cable. Includes 5 to 8Ground Cable. Includes 5 to 8
-
6710000483 Shrink TubingShrink Tubing
-
7710000508 Open BarrelOpen Barrel
-
8710000530 TerminalTerminal
-
9207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
10234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
11232061414 Hex Nut M6Hex Nut M6
-
12233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
13710000843 Positive Cable. Includes 13 to 21Positive Cable. Includes 13 to 21
-
14710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
15710000483 Shrink TubingShrink Tubing
-
16275500578 Shrink TubingShrink Tubing
-
17710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
18710000508 Open BarrelOpen Barrel
-
19710000522 Protector CapProtector Cap
-
20710000519 Open BarrelOpen Barrel
-
21710000902 Protector CapProtector Cap
-
29710000516 Protector CapProtector Cap
-
30710000903 Positive Cable, Starter Relay/starter. Includes 30 to 36Positive Cable, Starter Relay/starter. Includes 30 to 36
-
31710000483 Shrink TubingShrink Tubing
-
32710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
33710000508 Open BarrelOpen Barrel
-
34710000526 Protector CapProtector Cap
-
35710000530 TerminalTerminal
-
36710000902 Protector CapProtector Cap
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38710000455 Negative Cable. Includes 38 to 42Negative Cable. Includes 38 to 42
-
39710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
40710000483 Shrink TubingShrink Tubing
-
41710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
42710000530 TerminalTerminal
-
43207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
44250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
45233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
46224061121 Flat WasherFlat Washer
-
47710000451 Winch Positive Cable, Blue. Includes 47 to 52Winch Positive Cable, Blue. Includes 47 to 52
-
48710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
49710000483 Shrink TubingShrink Tubing
-
50710000494 Protector CapProtector Cap
-
51710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
52710000530 TerminalTerminal
-
53710000454 Winch Positive Cable, Yellow. Includes 53 to 57Winch Positive Cable, Yellow. Includes 53 to 57
-
54710000483 Shrink TubingShrink Tubing
-
55710000494 Protector CapProtector Cap
-
56710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
57710000530 TerminalTerminal
-
58234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
59207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
60409014200 ClipClip
-
61705201325 Starter Relay SupportStarter Relay Support
-
62515176011 Starter RelayStarter Relay
-
63234161601 Lock Washer Helical M6Lock Washer Helical M6
-
64232061600 Hex Nut M6Hex Nut M6
-
65233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
66207661244 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
67710001000 Winch SolenoidWinch Solenoid
-
68232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
69210262080 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
70710000798 Relay Support, WinchRelay Support, Winch
-
71390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
72710001001 Winch InterrupterWinch Interrupter
-
76710000755 Winch Interrupter SupportWinch Interrupter Support
-
77250000153 Hex Cap Screw 6-32 X 1/4''Hex Cap Screw 6-32 X 1/4''
-
78293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
79234101601 Helicoidal Lock Washer M10Helicoidal Lock Washer M10
-
80250000029 Hex Screw M10 X 16Hex Screw M10 X 16
-
81410301203 Battery, 18 Amperes. Includes 81 to 82Battery, 18 Amperes. Includes 81 to 82
-
82295500849 Battery Fastener KitBattery Fastener Kit
-
83710000279 Insulator PadInsulator Pad
-
84293850097 Rubber StrapRubber Strap
