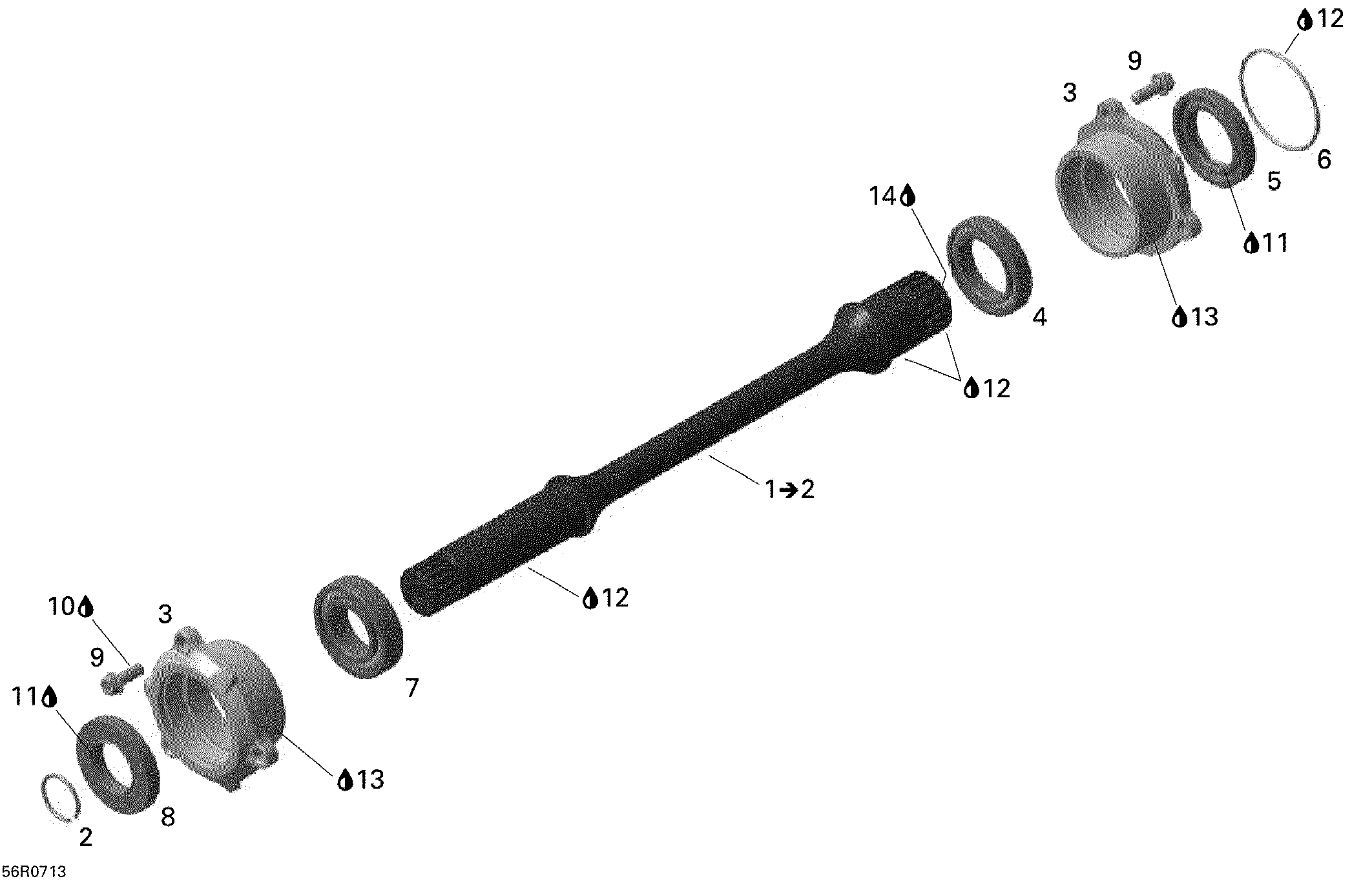

08- Drive Shaft для BRP Outlander MAX 800 LTD 4 X 4 - 2007
-
№АртикулНазвание
-
1420620515 Drive Shaft Ass'y. Includes 1 to 2Drive Shaft Ass'y. Includes 1 to 2
-
2420245010 CirclipCirclip
-
3420611221 Bearing CoverBearing Cover
-
4420632275 Ball BearingBall Bearing
-
5420850055 Oil SealOil Seal
-
6420230305 O-ringO-ring
-
7420232340 Ball BearingBall Bearing
-
8420430589 Oil SealOil Seal
-
9420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
11293550030 Grease, Super LubeGrease, Super Lube
-
13293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
14293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
