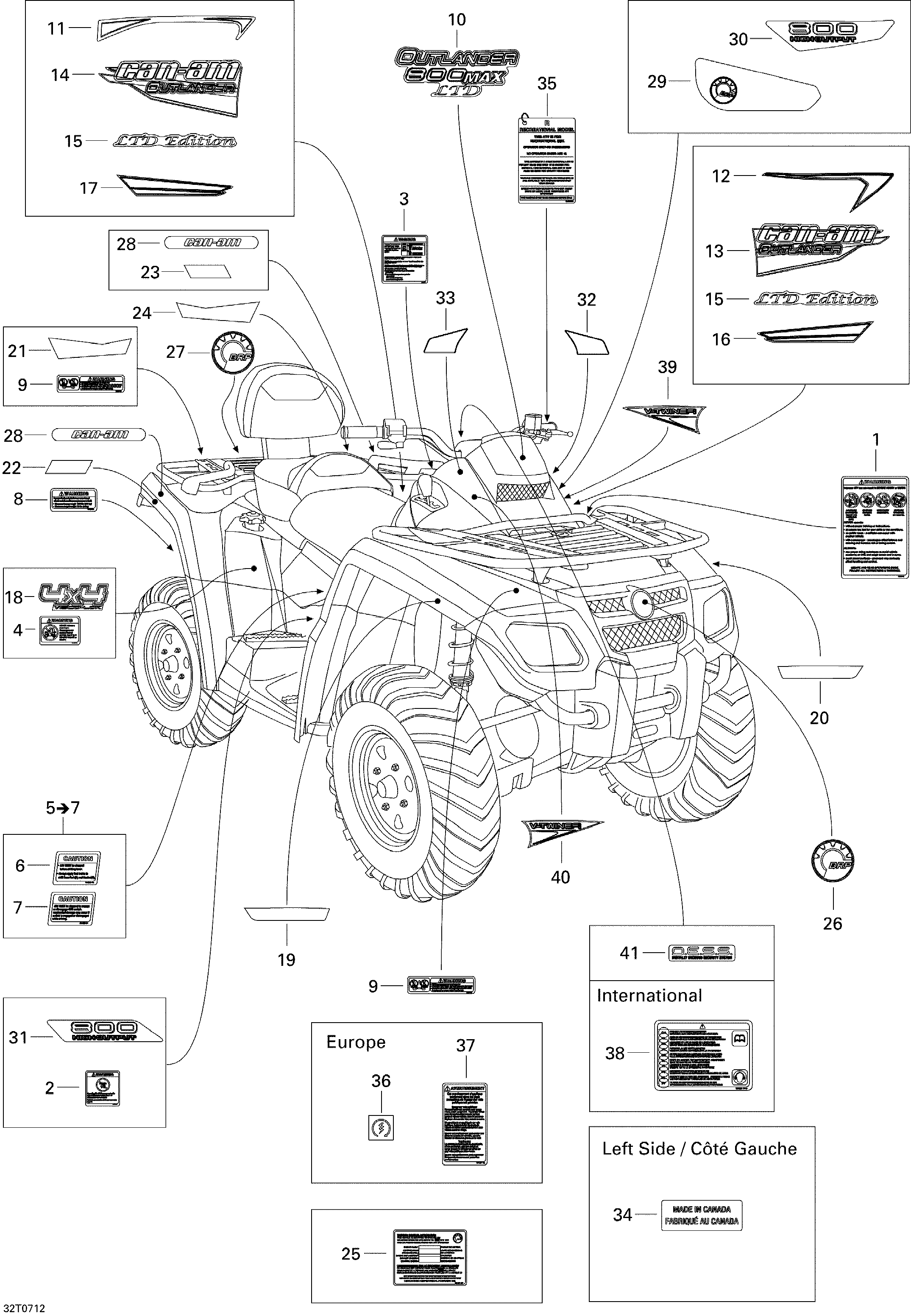

09- Decals для BRP Outlander MAX 800 LTD 4 X 4 - 2007
-
№АртикулНазвание
-
1704900904 Warning Label, Death And InjuriesWarning Label, Death And Injuries
-
2704900642 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
3704901119 Warning Label, Tire PressureWarning Label, Tire Pressure
-
4704901113 Warning Label, Under 12 Years OldWarning Label, Under 12 Years Old
-
5704900434 Caution Label, Lever And 4wd Switch. Includes 5 to 7Caution Label, Lever And 4wd Switch. Includes 5 to 7
-
6704900470 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
7704900471 Caution Label, 4wd SwitchCaution Label, 4wd Switch
-
8704901091 Ce Warning Label. EuropeCe Warning Label. Europe
-
8704901123 Warning Decal, TrailerWarning Decal, Trailer
-
9704901089 Warning Label, LoadWarning Label, Load
-
10704901322 Pod 800 Max Ltd DecalPod 800 Max Ltd Decal
-
11704901257 RH Panel DecalRH Panel Decal
-
12704901256 LH Panel DecalLH Panel Decal
-
13704901246 LH Front Lateral DecalLH Front Lateral Decal
-
14704901248 RH Front Lateral DecalRH Front Lateral Decal
-
15704901255 LH & RH Rearlateral DecalLH & RH Rearlateral Decal
-
16704901252 LH Rear Lateral DecalLH Rear Lateral Decal
-
17704901251 RH Rear Lateral DecalRH Rear Lateral Decal
-
18704901219 4x4 Decal4x4 Decal
-
19704901293 RH Front ReflectorRH Front Reflector
-
20704901292 LH Front ReflectorLH Front Reflector
-
21704900990 RH Rear ReflectorRH Rear Reflector
-
22704901266 RH Lateral ReflectorRH Lateral Reflector
-
23704901265 LH Lateral ReflectorLH Lateral Reflector
-
24704900991 LH Rear ReflectorLH Rear Reflector
-
25704901281 Emission Control LabelEmission Control Label
-
26219902469 Brp Logo 68 mmBrp Logo 68 mm
-
27219902469 Brp Logo 68 mmBrp Logo 68 mm
-
28704901271 Signature LabelSignature Label
-
29704900963 Cvt DecalCvt Decal
-
30704900964 Cvt 800 DecalCvt 800 Decal
-
31704901240 Engine Cover DecalEngine Cover Decal
-
32704901259 LH Pod Side DecalLH Pod Side Decal
-
33704901258 RH Pod Side DecalRH Pod Side Decal
-
34704900267 Canada DecalCanada Decal
-
35704900906 Warning Label, Vtt Deux PlacesWarning Label, Vtt Deux Places
-
36704900705 Symbol Label, Start. EuropeSymbol Label, Start. Europe
-
37704901112 Warning Label, Road Use. EuropeWarning Label, Road Use. Europe
-
38704901177 International Decal, Multilingual. InternationalInternational Decal, Multilingual. International
-
39704901115 LH Console DecalLH Console Decal
-
40704901116 RH Console DecalRH Console Decal
-
41704901117 DESS DecalDESS Decal
