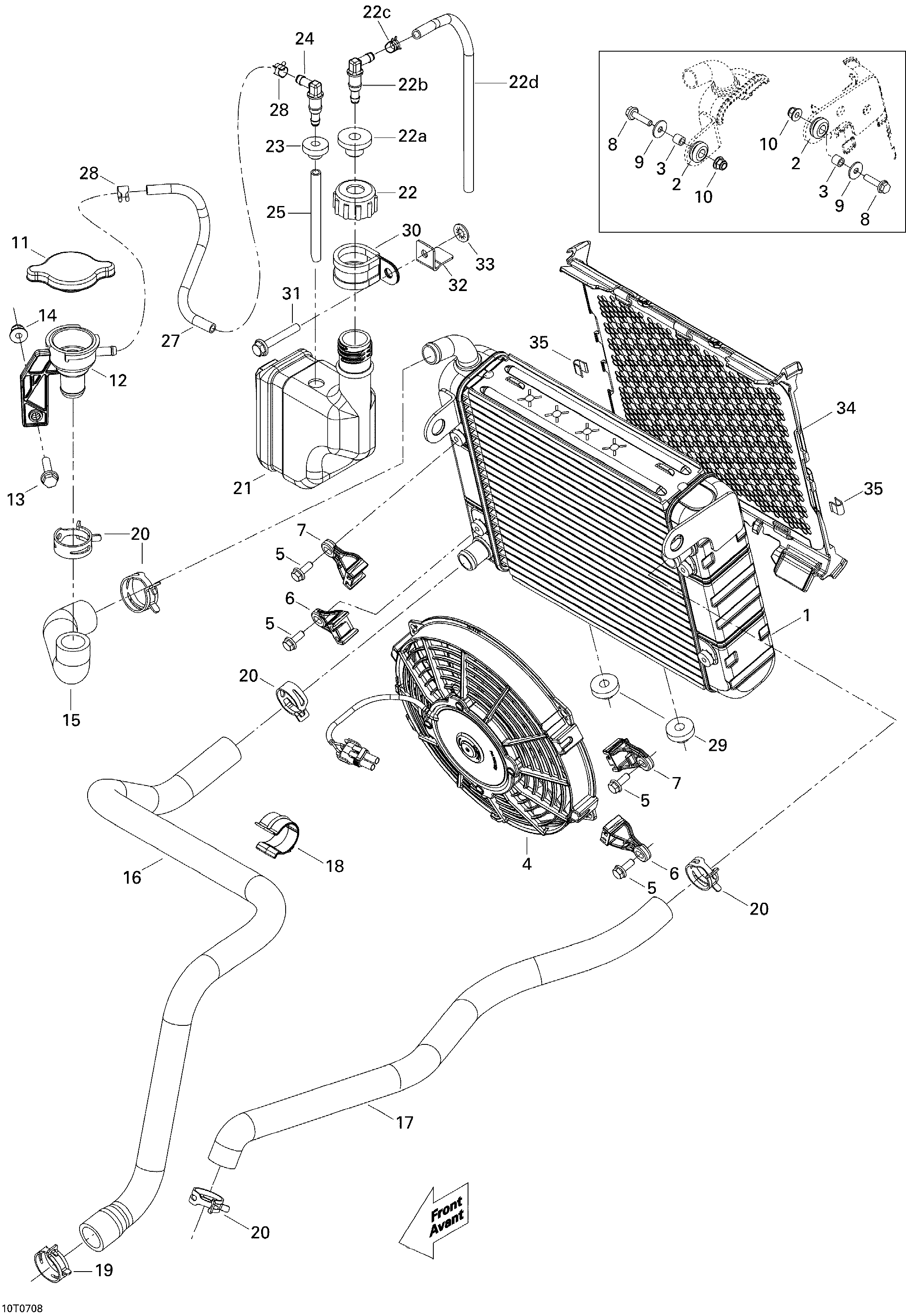

01- Cooling System для BRP Renegade 800 EFI - 2007
-
№АртикулНазвание
-
1709200178 RadiatorRadiator
-
2293720053 GrommetGrommet
-
3293900045 BushingBushing
-
4709200124 Fan Ass'yFan Ass'y
-
5207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
6709200125 Fan SupportFan Support
-
7709200126 Fan SupportFan Support
-
8207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
9391302000 Flat WasherFlat Washer
-
10233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
11709200033 Pressure CapPressure Cap
-
12709200179 Filler NeckFiller Neck
-
13207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
14233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
15709200180 Filler Neck HoseFiller Neck Hose
-
17709200182 Inlet HoseInlet Hose
-
18275500526 RetainerRetainer
-
16709200181 Outlet Radiator HoseOutlet Radiator Hose
-
19293650108 Norma Spring ClampNorma Spring Clamp
-
20293650109 Norma Spring ClampNorma Spring Clamp
-
21709200099 Coolant TankCoolant Tank
-
22548872589 Coolant Reserve Tank CapCoolant Reserve Tank Cap
-
22a293830136 GroometGroomet
-
22b414580700 Elbow Male ConnectorElbow Male Connector
-
22c414554800 Spring ClampSpring Clamp
-
22d415080200 Polyurethane HosePolyurethane Hose
-
23570135100 GrommetGrommet
-
24414580600 Male ConnectorMale Connector
-
25415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
27415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
28414554800 Spring ClampSpring Clamp
-
29570135100 GrommetGrommet
-
30709200036 Hose AnchorHose Anchor
-
31207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
32709200196 BracketBracket
-
33732610072 Push NutPush Nut
-
34709200187 Radiator Protector. Includes 34, 35Radiator Protector. Includes 34, 35
-
35414479100 ClipClip
