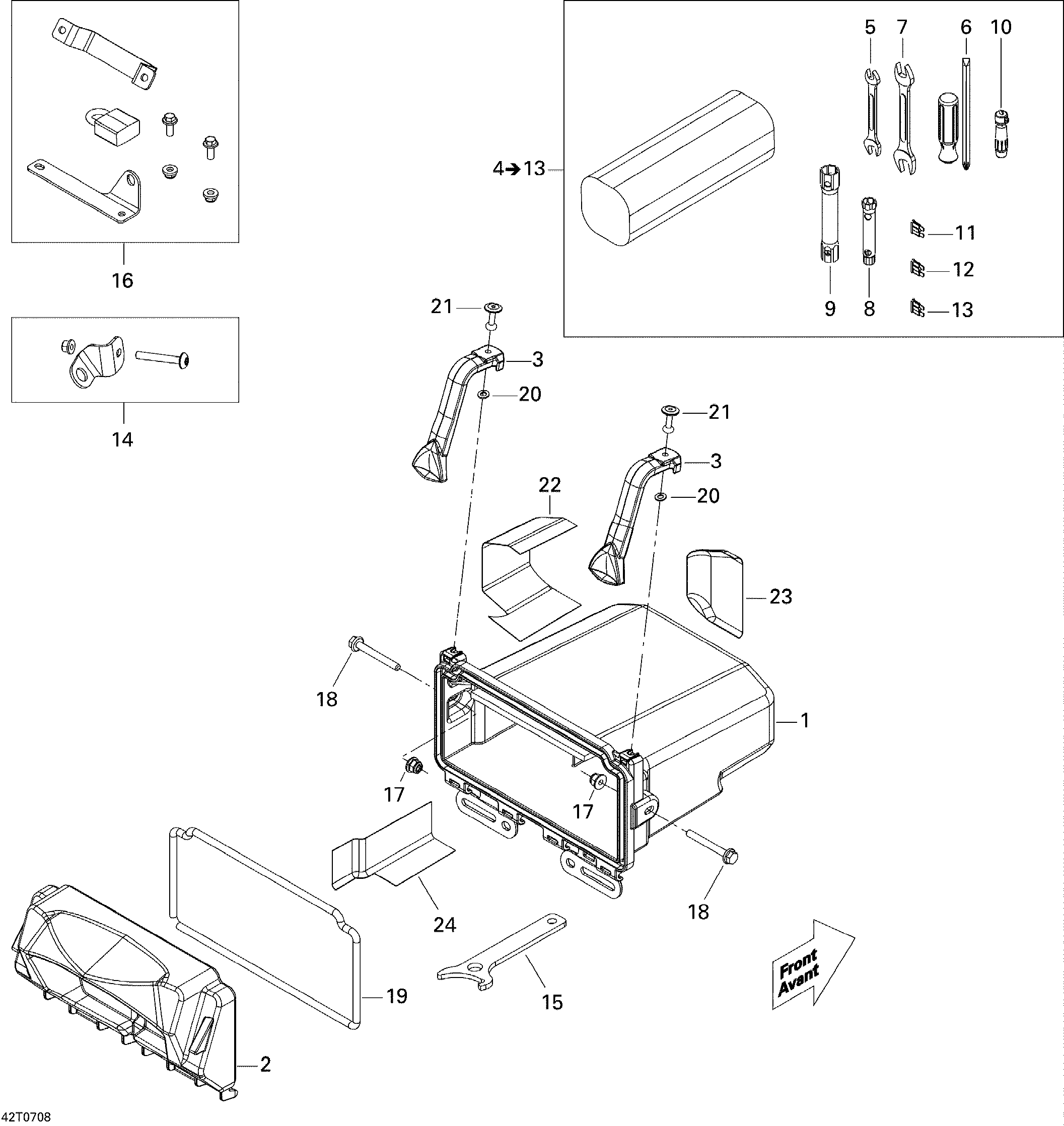

09- Rear Cargo Box для BRP Renegade 800 EFI - 2007
-
№АртикулНазвание
-
1708200074 Storage BoxStorage Box
-
2708200076 Storage Box CoverStorage Box Cover
-
3517302448 Panel LatchPanel Latch
-
4704700096 Tool Kit. Includes 4 to 13Tool Kit. Includes 4 to 13
-
5529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
6529000004 Driver ScrewDriver Screw
-
7529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
8529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
9295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
10704700003 Pressure GaugePressure Gauge
-
11410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
12409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
13278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
14708200079 Flag Support KitFlag Support Kit
-
15529032900 Adjustment WrenchAdjustment Wrench
-
16705600479 Security Kit. EuropeSecurity Kit. Europe
-
17233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
18207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
19708200077 Neoprene SealNeoprene Seal
-
20211200035 Flat WasherFlat Washer
-
21293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
22708200087 Front Reflective SheetFront Reflective Sheet
-
23708200088 Reflective SheetReflective Sheet
-
24708200083 Rear Reflective SheetRear Reflective Sheet
