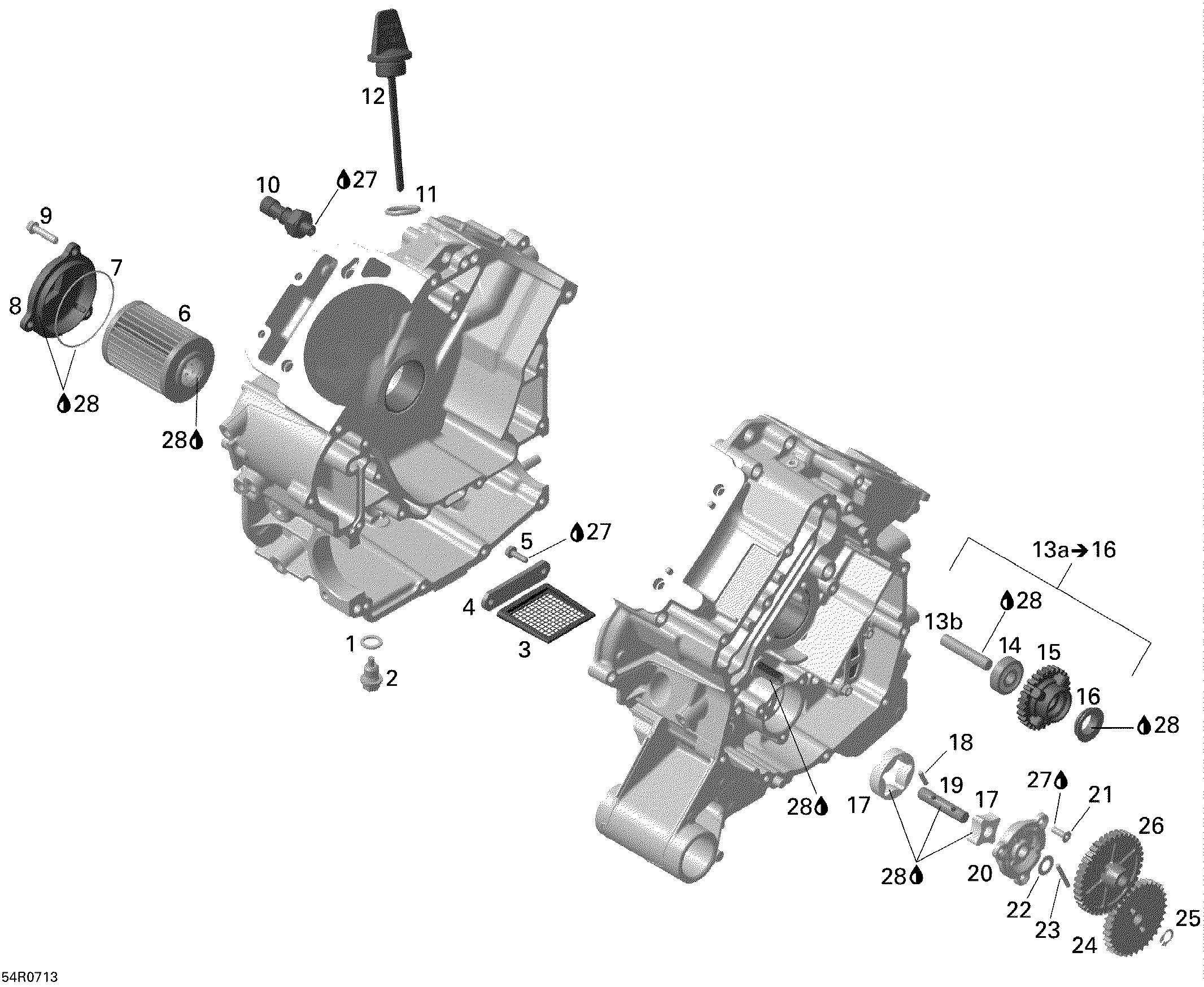

01- Engine Lubrication RENEGADE для BRP Renegade 800 EFI - 2007
-
№АртикулНазвание
-
1420250640 GasketGasket
-
2420241786 Magnetic Drain PlugMagnetic Drain Plug
-
3420256321 Oil SieveOil Sieve
-
4420210661 Cover SieveCover Sieve
-
5420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
6420256188 Oil FilterOil Filter
-
7420230920 O-RingO-Ring
-
8420210418 Oil Filter CoverOil Filter Cover
-
9420440237 Torx Flange Screw M6 X 25Torx Flange Screw M6 X 25
-
10420256773 Oil Pressure Switch M10 X 1Oil Pressure Switch M10 X 1
-
11420631640 O-RingO-Ring
-
12420256802 Oil SipstickOil Sipstick
-
13a420434305 Idle Gear, 28 Teeth (ESN #6698279 or lower). Includes 13a to 16, North AmericaIdle Gear, 28 Teeth (ESN #6698279 or lower). Includes 13a to 16, North America
-
13a420434307 Idle Gear, 28 Teeth (ESN #6698280 or higher). Includes 13a to 16, North AmericaIdle Gear, 28 Teeth (ESN #6698280 or higher). Includes 13a to 16, North America
-
13a420434305 Idle Gear, 28 Teeth (ESN #6698506 or lower). Includes 13a to 16, EuropeIdle Gear, 28 Teeth (ESN #6698506 or lower). Includes 13a to 16, Europe
-
13a420434307 Idle Gear, 28 Teeth (ESN #6698507 or higher). Includes 13a to 16, EuropeIdle Gear, 28 Teeth (ESN #6698507 or higher). Includes 13a to 16, Europe
-
16420630125 V-ringV-ring
-
17420256347 Oil Pump RotorOil Pump Rotor
-
18420232730 Needle PinNeedle Pin
-
19420237059 Oil Pump ShaftOil Pump Shaft
-
20420210640 Oil Pump CoverOil Pump Cover
-
21420640821 Torx Screw M5 X 16Torx Screw M5 X 16
-
22420827590 Thrust WasherThrust Washer
-
23420232430 Needle PinNeedle Pin
-
24420434320 Oil Pump Gear, 33 TeethOil Pump Gear, 33 Teeth
-
25420245330 Snap RingSnap Ring
-
26420434300 Idle Gear, 38 TeethIdle Gear, 38 Teeth
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
