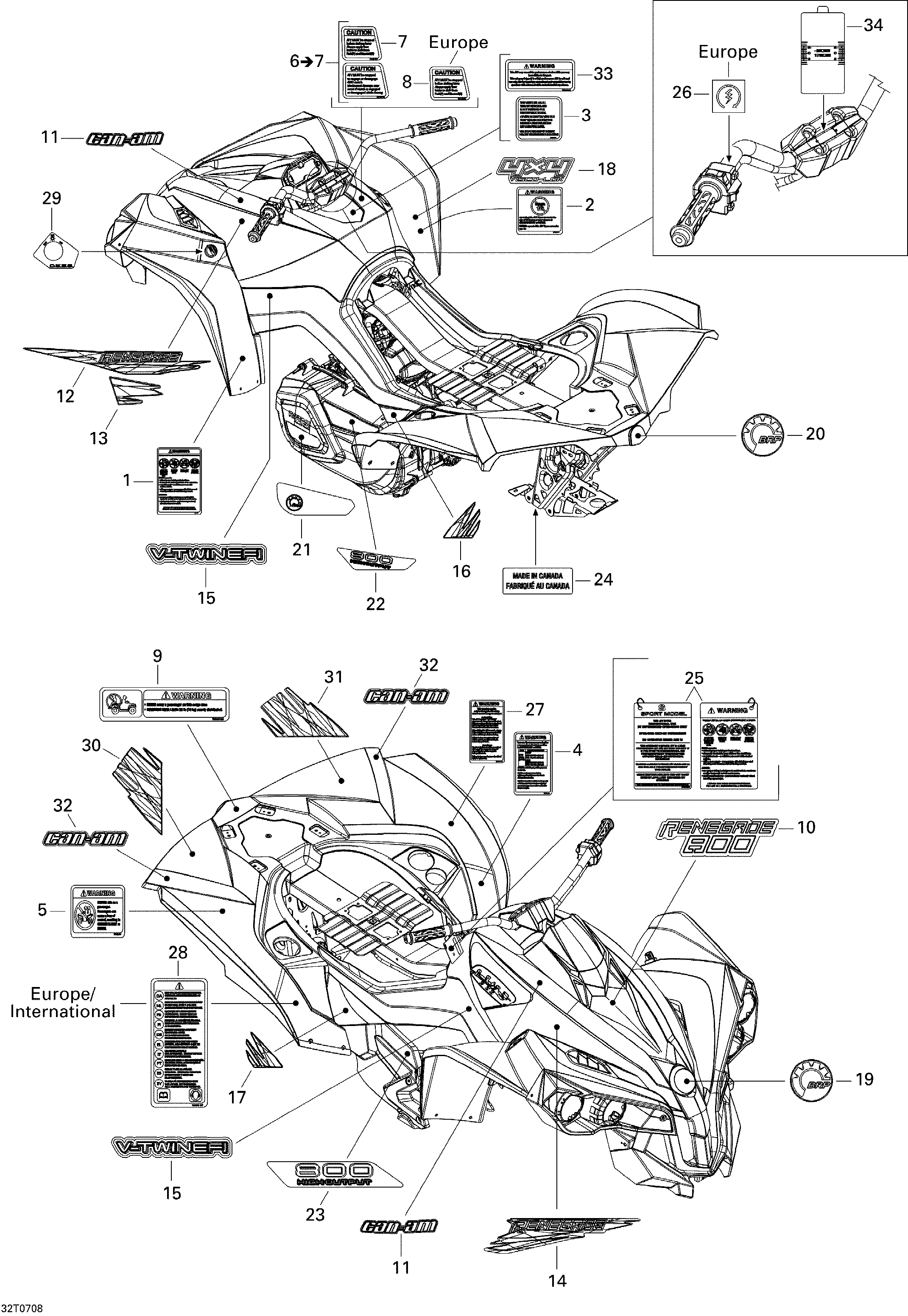

09- Decals для BRP Renegade 800 EFI - 2007
-
№АртикулНазвание
-
1704900112 Warning Label, Death And InjuriesWarning Label, Death And Injuries
-
2704900011 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
3704901315 Transport Canada Label. Except Europe ModelTransport Canada Label. Except Europe Model
-
4704901398 Warning Label, Tire PressureWarning Label, Tire Pressure
-
5704900005 Warning Label, PassengerWarning Label, Passenger
-
6704901308 Caution Label, Lever And 4wd Switch. Include 6 to 7, Except Europe ModelCaution Label, Lever And 4wd Switch. Include 6 to 7, Except Europe Model
-
7704901309 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
8704901309 Caution Label, Shifting Lever. EuropeCaution Label, Shifting Lever. Europe
-
9704901333 Warning Label, LoadWarning Label, Load
-
10704901296 Console Decal, Renegade 800Console Decal, Renegade 800
-
11704901301 Front Decal, cam-amFront Decal, cam-am
-
12704901297 LH Front Decal, RenegadeLH Front Decal, Renegade
-
13704901298 LH Lower Front DecalLH Lower Front Decal
-
14704901299 RH Front Decal, RenegadeRH Front Decal, Renegade
-
15704901300 Front Lateral Decal, V-Twin EFIFront Lateral Decal, V-Twin EFI
-
16704901303 LH Rear Lateral DecalLH Rear Lateral Decal
-
17704901304 RH Rear Lateral DecalRH Rear Lateral Decal
-
18704901302 4X4 Decal, Visco Lok4X4 Decal, Visco Lok
-
19219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
20219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
21704900963 CVT DecalCVT Decal
-
22704900964 CVT 800 DecalCVT 800 Decal
-
23704901240 Engine Cover Decal, 800 High OutputEngine Cover Decal, 800 High Output
-
24704900267 Canada DecalCanada Decal
-
25704900923 Warning Label, Sport ModelWarning Label, Sport Model
-
26704900705 Symbol Label, Start. EuropeSymbol Label, Start. Europe
-
27704901112 Warning Label, Road Use. EuropeWarning Label, Road Use. Europe
-
28704901177 International Decal, Multilingual. Europe & InternationalInternational Decal, Multilingual. Europe & International
-
29704901311 D.E.S.S DecalD.E.S.S Decal
-
30704901305 RH Rear Fender DecalRH Rear Fender Decal
-
31704901306 LH Rear Fender DecalLH Rear Fender Decal
-
32704901307 Rear Fender Decal, cam-amRear Fender Decal, cam-am
-
33704900089 Warning Label, PerformanceWarning Label, Performance
-
34704901411 Micro-Adjust DecalMicro-Adjust Decal
