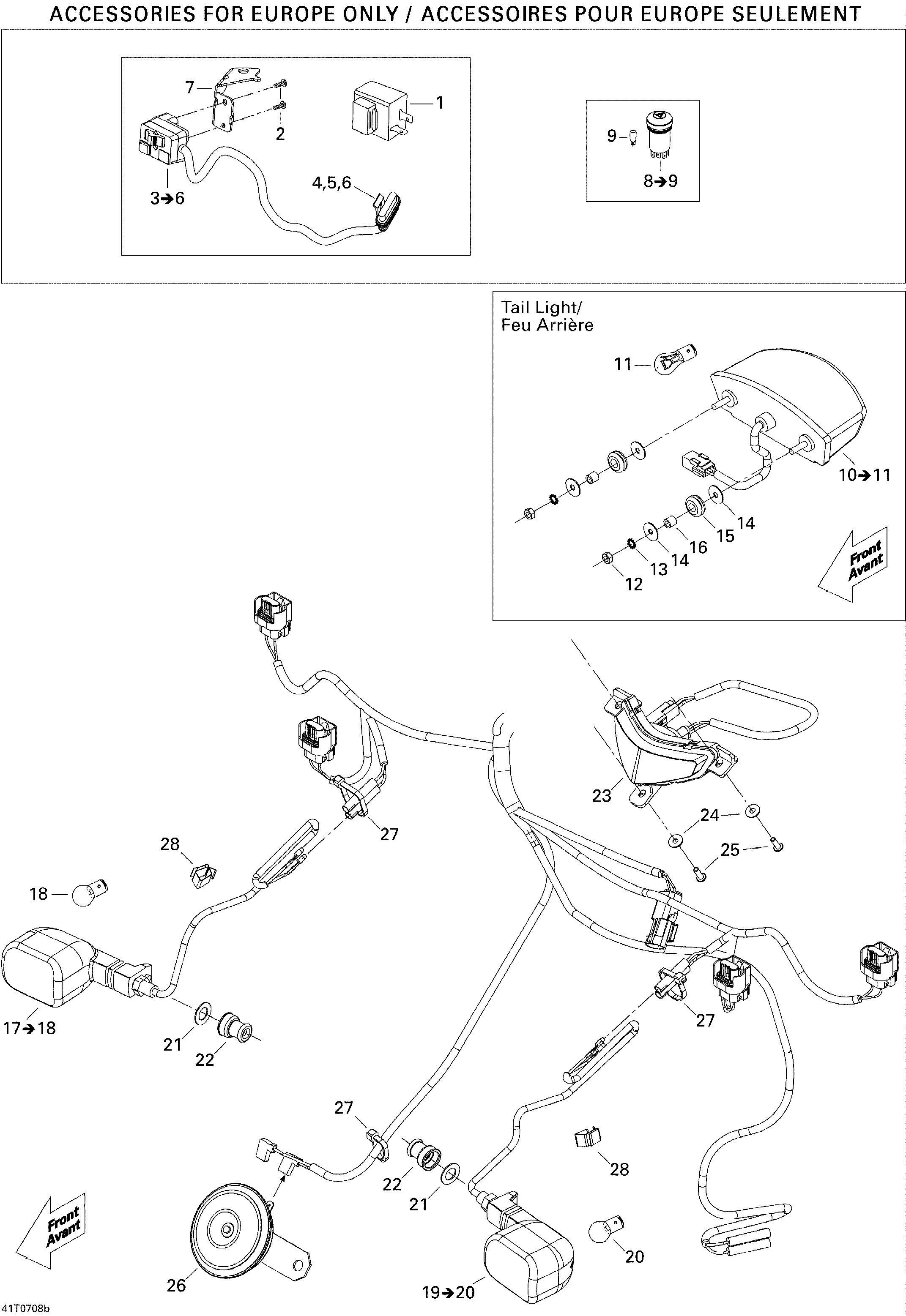

10- Electrical Accessories Europe для BRP Renegade 800 EFI - 2007
-
№АртикулНазвание
-
1710000581 Flasher UnitFlasher Unit
-
2207141260 Screw Hex. M4 X 12Screw Hex. M4 X 12
-
3710000904 Flasher Switch. Includes 3 to 6Flasher Switch. Includes 3 to 6
-
4710000780 ConnectorConnector
-
5278001014 Female TerminalFemale Terminal
-
6278001013 Wire SealWire Seal
-
7710000905 Switch SupportSwitch Support
-
8710000367 Emergency Switch. Includes 8 to 9Emergency Switch. Includes 8 to 9
-
9710000661 Emergency Switch LightEmergency Switch Light
-
10710000760 Tail Light. Includes 10 to 11Tail Light. Includes 10 to 11
-
11410504100 Tail Light BulbTail Light Bulb
-
12232061600 Hex Nut M6Hex Nut M6
-
13234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
14224060201 Flat WasherFlat Washer
-
15293720053 GrommetGrommet
-
16293900045 BushingBushing
-
17710000547 Flasher. Includes 17 to 18Flasher. Includes 17 to 18
-
18710000662 Flasher BulbFlasher Bulb
-
19710000546 Flasher. Includes 19 to 20Flasher. Includes 19 to 20
-
20710000662 Flasher BulbFlasher Bulb
-
21503175800 WasherWasher
-
22710000765 Protection CapProtection Cap
-
23710001042 Day LightDay Light
-
24234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
25241641040 Pan Head Flanged Screw K40 X 10Pan Head Flanged Screw K40 X 10
-
26710000983 HornHorn
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28414227300 ClipClip
