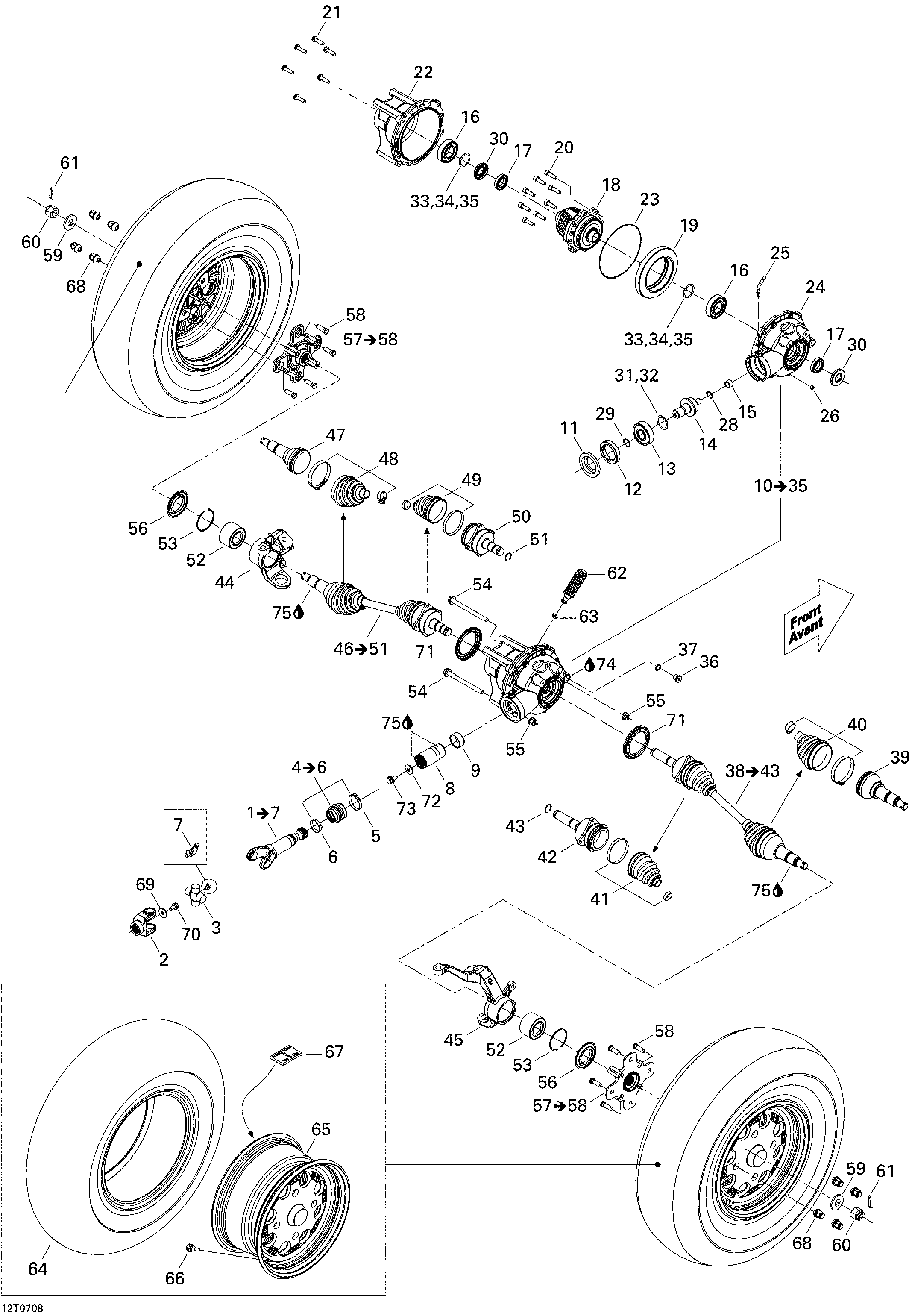

07- Drive System, Front для BRP Renegade 800 EFI - 2007
-
№АртикулНазвание
-
1705400551 Front Drive Axle Ass'y. Includes 1 to 7Front Drive Axle Ass'y. Includes 1 to 7
-
2705400391 Yoke, Fixed JointYoke, Fixed Joint
-
3703000023 Unit Pack KitUnit Pack Kit
-
4703500255 Rubber Boot Kit. Includes 4 to 6Rubber Boot Kit. Includes 4 to 6
-
5293650138 Oetiker ClampOetiker Clamp
-
6705400148 CollarCollar
-
7705500841 Grease FittingGrease Fitting
-
8705400149 Coupling SleeveCoupling Sleeve
-
9705400036 Wear RingWear Ring
-
10705400425 Front Differential Ass'y. Includes 10 to 35Front Differential Ass'y. Includes 10 to 35
-
11705400027 Oil SealOil Seal
-
12705500789 NutNut
-
13705500260 Ball BearingBall Bearing
-
14705500268 Gear, 10 TeethGear, 10 Teeth
-
15705500261 Needle BearingNeedle Bearing
-
16705500259 Ball BearingBall Bearing
-
17293350044 Ball BearingBall Bearing
-
18705400320 DifferentialDifferential
-
19705400192 Gear, 36 TeethGear, 36 Teeth
-
20705400101 Ring Gear ScrewRing Gear Screw
-
21705500264 ScrewScrew
-
22705400297 Front CoverFront Cover
-
23705500265 SealSeal
-
24705400299 Front Cover, PinionFront Cover, Pinion
-
25705500262 Vent ValveVent Valve
-
26705500245 Drain PlugDrain Plug
-
28705500269 Retaining RingRetaining Ring
-
29705500267 O-RingO-Ring
-
30705500255 Oil SealOil Seal
-
31703500049 Pinion Shim KitPinion Shim Kit
-
32705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
33703500288 Differential Shim KitDifferential Shim Kit
-
34703500050 Differential Shim KitDifferential Shim Kit
-
35705500079 Differential Shim .022''Differential Shim .022''
-
36705500504 Fill Level PlugFill Level Plug
-
37705500506 Copper WasherCopper Washer
-
38705400508 RH CV Joint. Includes 38 to 43RH CV Joint. Includes 38 to 43
-
39705500560 CV JointCV Joint
-
40705400511 Wheel Boot KitWheel Boot Kit
-
41705400512 Differential Boot KitDifferential Boot Kit
-
42705400513 RH Plunging JointRH Plunging Joint
-
43705400042 CirclipCirclip
-
44705400463 LH KnuckleLH Knuckle
-
45705400465 RH KnuckleRH Knuckle
-
46705400510 LH CV Joint. Includes 46 to 51LH CV Joint. Includes 46 to 51
-
47705500560 CV JointCV Joint
-
48705400511 Wheel Boot KitWheel Boot Kit
-
49705400512 Differential Boot KitDifferential Boot Kit
-
50705400514 LH Plunging JointLH Plunging Joint
-
51705400042 CirclipCirclip
-
52293350040 Cone BearingCone Bearing
-
53293370019 CirclipCirclip
-
54230602546 Hex Flanged Screw M10 X 125Hex Flanged Screw M10 X 125
-
55233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
56705500372 Wear SleeveWear Sleeve
-
57705400286 Wheel Hub Ass'y. Includes 57 to 58Wheel Hub Ass'y. Includes 57 to 58
-
58250300020 Wheel StudWheel Stud
-
59250200049 Spring WasherSpring Washer
-
60250100047 Hex Castellated Nut M18Hex Castellated Nut M18
-
61250400016 Cotter PinCotter Pin
-
62705400552 Rubber BellowRubber Bellow
-
63293650042 Oetiker ClampOetiker Clamp
-
64705400475 Front Tire. Europe & InternationalFront Tire. Europe & International
-
64705400600 Front Tire. North AmericaFront Tire. North America
-
65705400506 Front RimFront Rim
-
66705400193 Rim ValveRim Valve
-
67705500824 Adhesive Weight, 1/2 OzAdhesive Weight, 1/2 Oz
-
68250100082 Chrome Wheel Nut M10 X 1.25Chrome Wheel Nut M10 X 1.25
-
69211200041 WasherWasher
-
70207581646 Hex Flanged Screw M8 X 16, Scotch GripHex Flanged Screw M8 X 16, Scotch Grip
-
71705400309 Wear SleeveWear Sleeve
-
72250200014 Flat WasherFlat Washer
-
73250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
74293600011 Pump Oil, 75w90, 12 X 6 OzPump Oil, 75w90, 12 X 6 Oz
-
75293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
