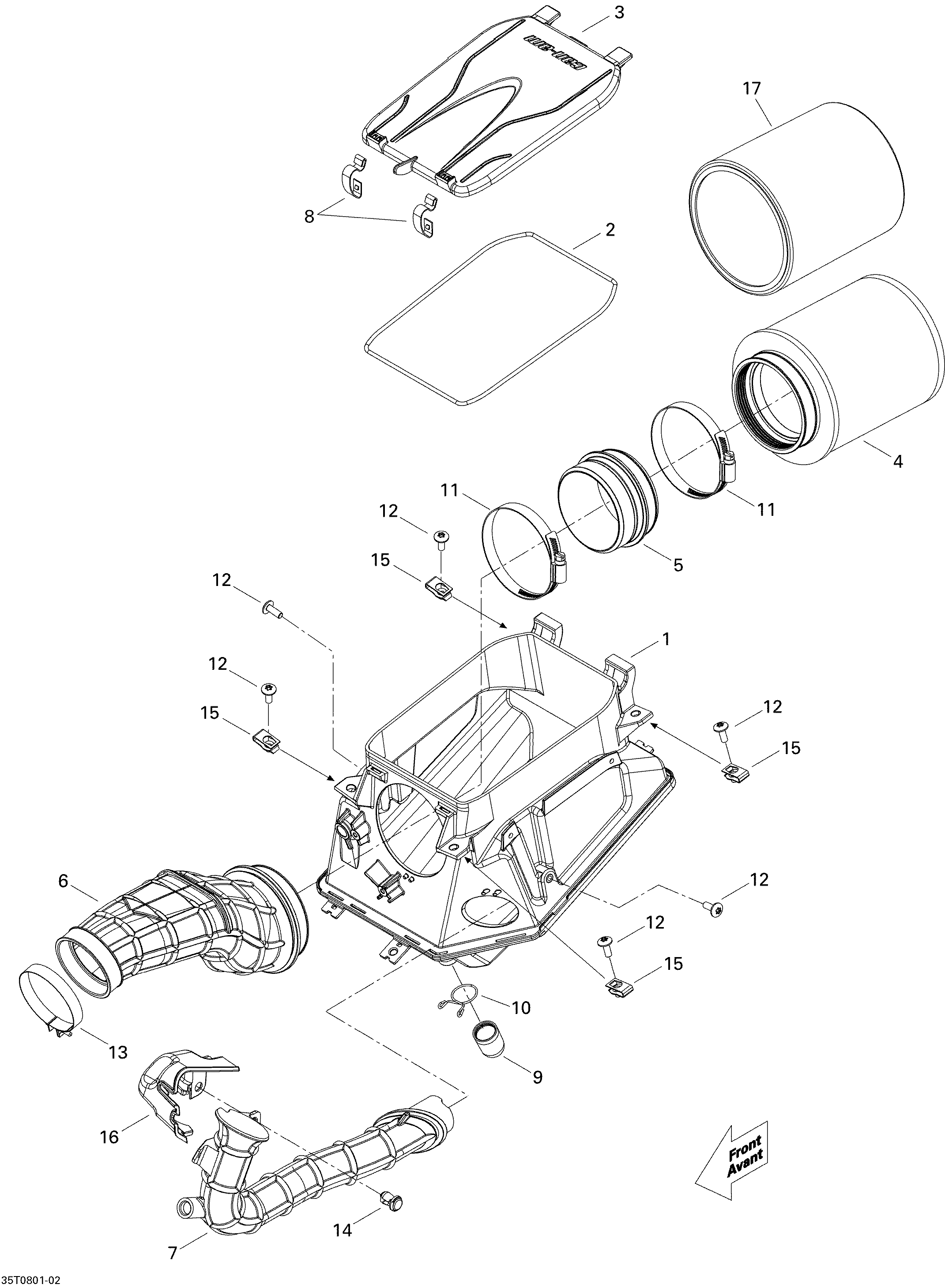

02- Air Intake Silencer для BRP DS 450 X - 2008
-
№АртикулНазвание
-
1707800242 Air SilencerAir Silencer
-
2707800240 GasketGasket
-
3707800215 Air Box CoverAir Box Cover
-
4707800216 Air FilterAir Filter
-
5707800257 AdaptorAdaptor
-
6707800218 Intake AdaptorIntake Adaptor
-
7707800258 Front Air IntakeFront Air Intake
-
8707800249 Cover BracketCover Bracket
-
9707800080 Drain TubeDrain Tube
-
10707800278 Retainer ClipRetainer Clip
-
11204000079 Tridon ClampTridon Clamp
-
12250000223 Torx ScrewTorx Screw
-
13293650159 ClampClamp
-
14293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
15250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
16707800285 DeflectorDeflector
-
17707800293 Intake Pre-FilterIntake Pre-Filter
