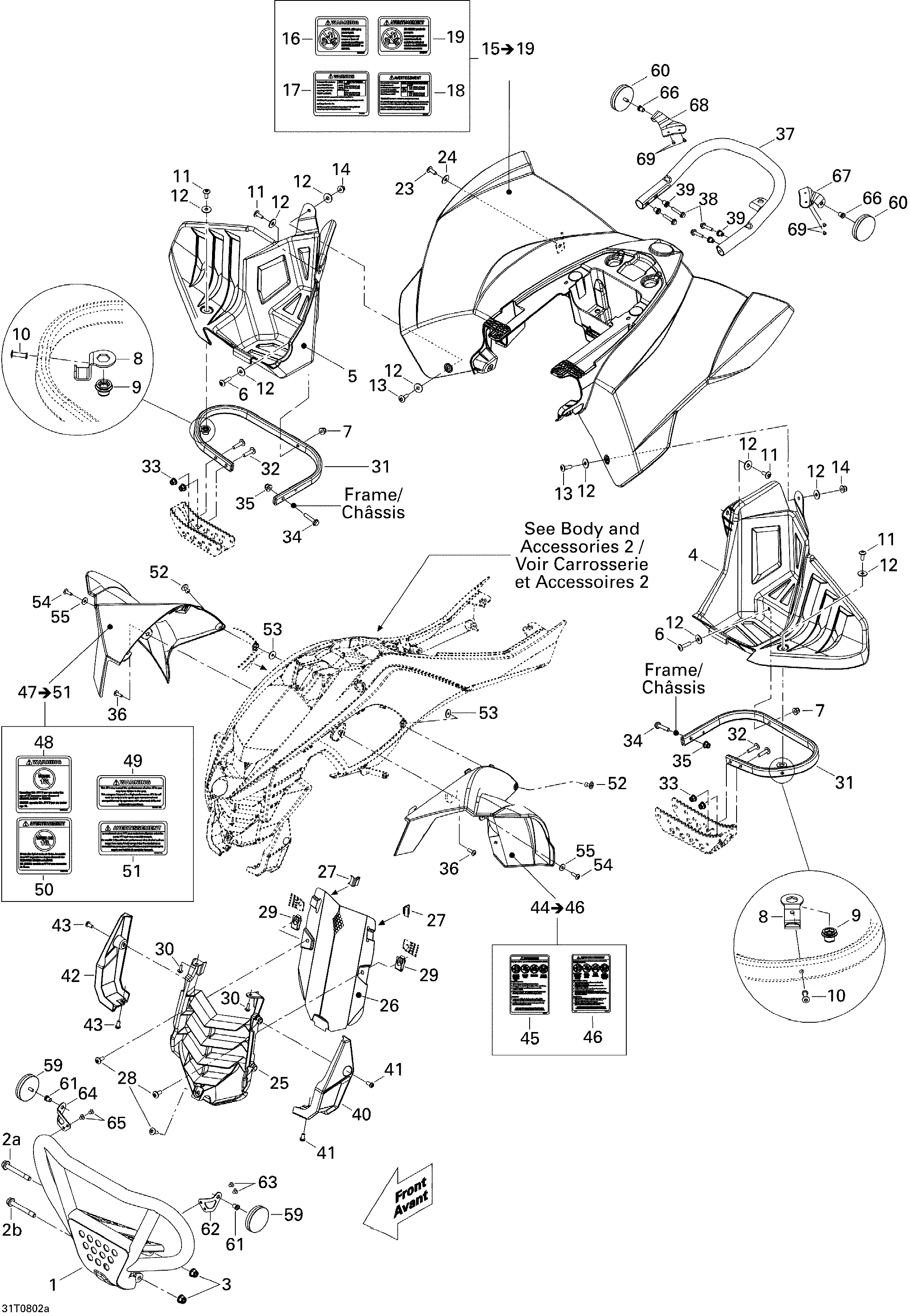

09- Body And Accessories 1 для BRP DS 450 X - 2008
-
№АртикулНазвание
-
1705002767 Front BumperFront Bumper
-
2a250000302 Hex. Flanged Screw M8 X 65, Scotch GripHex. Flanged Screw M8 X 65, Scotch Grip
-
2b207587534 Hex. Flanged Screw M8 X 75, Scotch GripHex. Flanged Screw M8 X 75, Scotch Grip
-
3233181434 Hex. Flanged Nut, M8Hex. Flanged Nut, M8
-
4705001745 LH Foot ProtectorLH Foot Protector
-
5705001746 RH Foot ProtectorRH Foot Protector
-
6250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
7232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
8705002373 Foot Protector BracketFoot Protector Bracket
-
9293450274 InsertInsert
-
10293150023 Pop-rivet 1/8''Pop-rivet 1/8''
-
11250000223 Torx ScrewTorx Screw
-
12250200097 Flat WasherFlat Washer
-
13250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
14232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
15715000572 Rear Fender Kit, Black. Includes 15 to 19Rear Fender Kit, Black. Includes 15 to 19
-
16704900005 Warning Label, PassengerWarning Label, Passenger
-
17704901365 Warning Decal, Tire Pressure, EnglishWarning Decal, Tire Pressure, English
-
18704901395 Warning Label, Tire Pressure, FrenchWarning Label, Tire Pressure, French
-
19704900006 Warning Label, PassengerWarning Label, Passenger
-
23250000223 Torx ScrewTorx Screw
-
24250200097 Flat WasherFlat Washer
-
25709200156 Radiator ProtectorRadiator Protector
-
26709200167 GrillGrill
-
27517302789 ClipClip
-
28250000223 Torx ScrewTorx Screw
-
29250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
30243141630 Hex Plastic Screw M4.8 X 16Hex Plastic Screw M4.8 X 16
-
31705002091 Foot Protector SupportFoot Protector Support
-
32250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
33233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
34207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
35233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
36250000223 Torx ScrewTorx Screw
-
37705002769 Rear BumperRear Bumper
-
38207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
39293450275 InsertInsert
-
40705002514 LH Radiator MouldingLH Radiator Moulding
-
41250000339 Socket Screw M6 X 12Socket Screw M6 X 12
-
42705002515 RH Radiator MouldingRH Radiator Moulding
-
43250000339 Socket Screw M6 X 12Socket Screw M6 X 12
-
44715000563 LH Front Fender Kit, Black. Includes 44 to 46LH Front Fender Kit, Black. Includes 44 to 46
-
45704900112 Warning Label, Death And InjuriesWarning Label, Death And Injuries
-
46704900002 Warning Label, Death And InjuriesWarning Label, Death And Injuries
-
47715000565 RH Front Fender Kit, Black. Includes 47 to 51RH Front Fender Kit, Black. Includes 47 to 51
-
48704900011 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
49704901133 Warning Decal, Performance, EnglishWarning Decal, Performance, English
-
50704900012 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
51704901135 Warning Decal, Performance, FrenchWarning Decal, Performance, French
-
52293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
53503191273 WasherWasher
-
54250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
55250200097 Flat WasherFlat Washer
-
59705002409 Reflector, AmberReflector, Amber
-
60705002408 Reflector, RedReflector, Red
-
61293450268 InsertInsert
-
62705002859 LH Reflector SupportLH Reflector Support
-
63390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
64705002860 RH Reflector SupportRH Reflector Support
-
65390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
66293450268 InsertInsert
-
67705002406 LH Reflector SupportLH Reflector Support
-
68705002407 RH Reflector SupportRH Reflector Support
-
69390402500 Pop Rivet 1/8''Pop Rivet 1/8''
