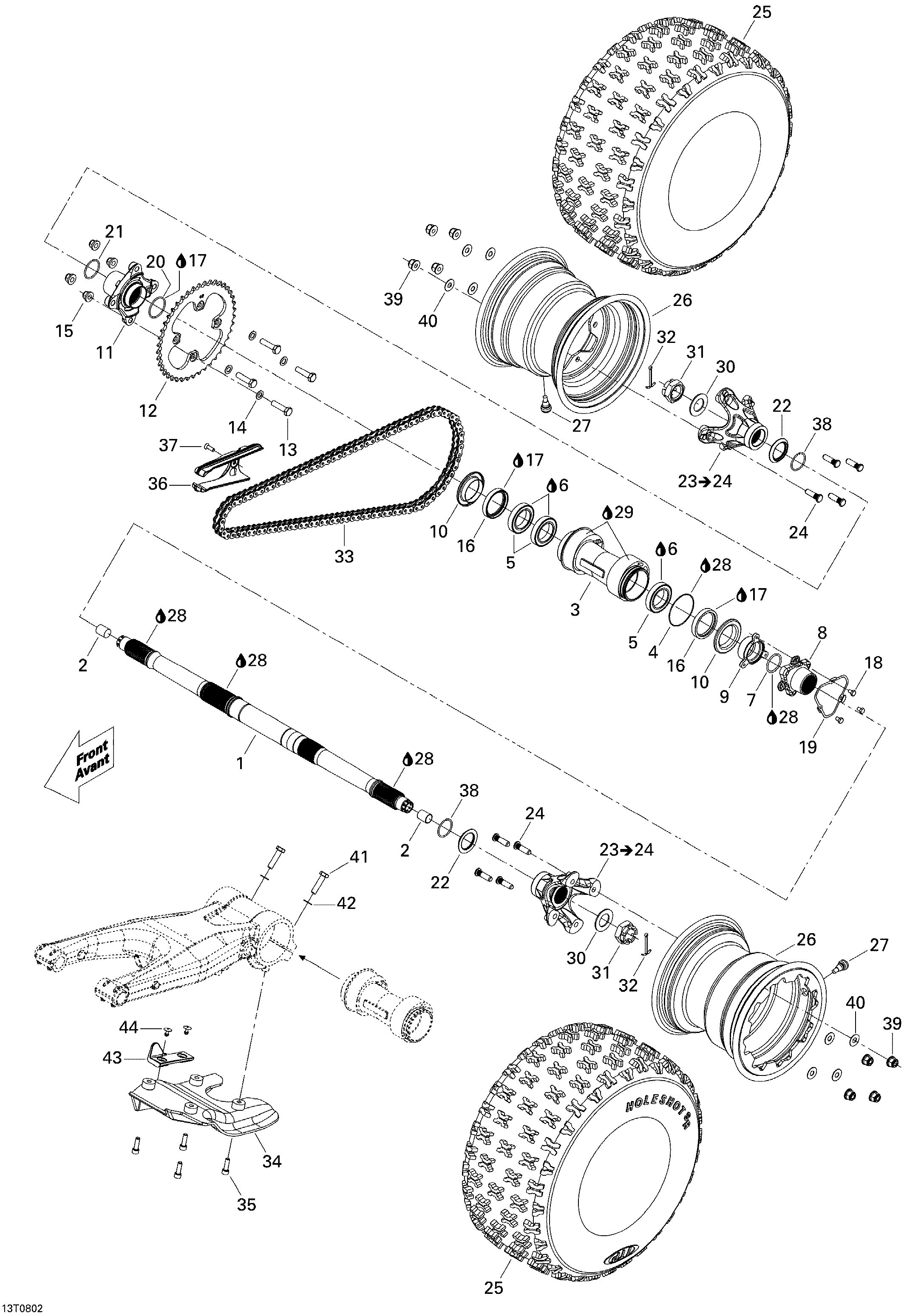

08- Drive System, Rear для BRP DS 450 X - 2008
-
№АртикулНазвание
-
1705500643 Drive AxleDrive Axle
-
2293730044 CapCap
-
3705500644 Chain TightenerChain Tightener
-
4293300115 O-RingO-Ring
-
5293350053 Ball BearingBall Bearing
-
6413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
7293300089 O-RingO-Ring
-
8705500646 Brake Disc HubBrake Disc Hub
-
9705500649 Nut M40Nut M40
-
10705500648 Wear RingWear Ring
-
11705500650 Sprocket Wheel HubSprocket Wheel Hub
-
12705500930 Sprocket, 42 TeethSprocket, 42 Teeth
-
13207004036 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
14250200084 Flat WasherFlat Washer
-
15233201436 Flanged Elastic NutFlanged Elastic Nut
-
16293250164 Oil SealOil Seal
-
17293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
18207161034 Hex. Screw M6 X 10Hex. Screw M6 X 10
-
19705500669 Lock WasherLock Washer
-
20293300099 O-RingO-Ring
-
21705500108 Ring RetainerRing Retainer
-
22705500663 Support RingSupport Ring
-
23705500664 Rear Wheel Hub Ass'y. Includes 23 to 24Rear Wheel Hub Ass'y. Includes 23 to 24
-
24250000138 Wheel StudWheel Stud
-
25705500787 Rear TireRear Tire
-
26705500781 Rear RimRear Rim
-
27705400193 Rim ValveRim Valve
-
28293550019 Grease, 60 GGrease, 60 G
-
29293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
30250200087 Flat WasherFlat Washer
-
31250100093 Hex. Castlellated Nut M27Hex. Castlellated Nut M27
-
32250400028 Cotter PinCotter Pin
-
33705500948 ChainChain
-
34705500889 Rear Skid PlateRear Skid Plate
-
35205082534 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
36705500659 Chain SliderChain Slider
-
37205862034 Socket Head Screw M6, Scotch GripSocket Head Screw M6, Scotch Grip
-
38705500065 Ring RetainerRing Retainer
-
39250100105 Flanged Nut M10Flanged Nut M10
-
40250200080 Flat WasherFlat Washer
-
41207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
42250200084 Flat WasherFlat Washer
-
43705500923 Chain SliderChain Slider
-
44293150104 Pop Rivet 3/16''Pop Rivet 3/16''
