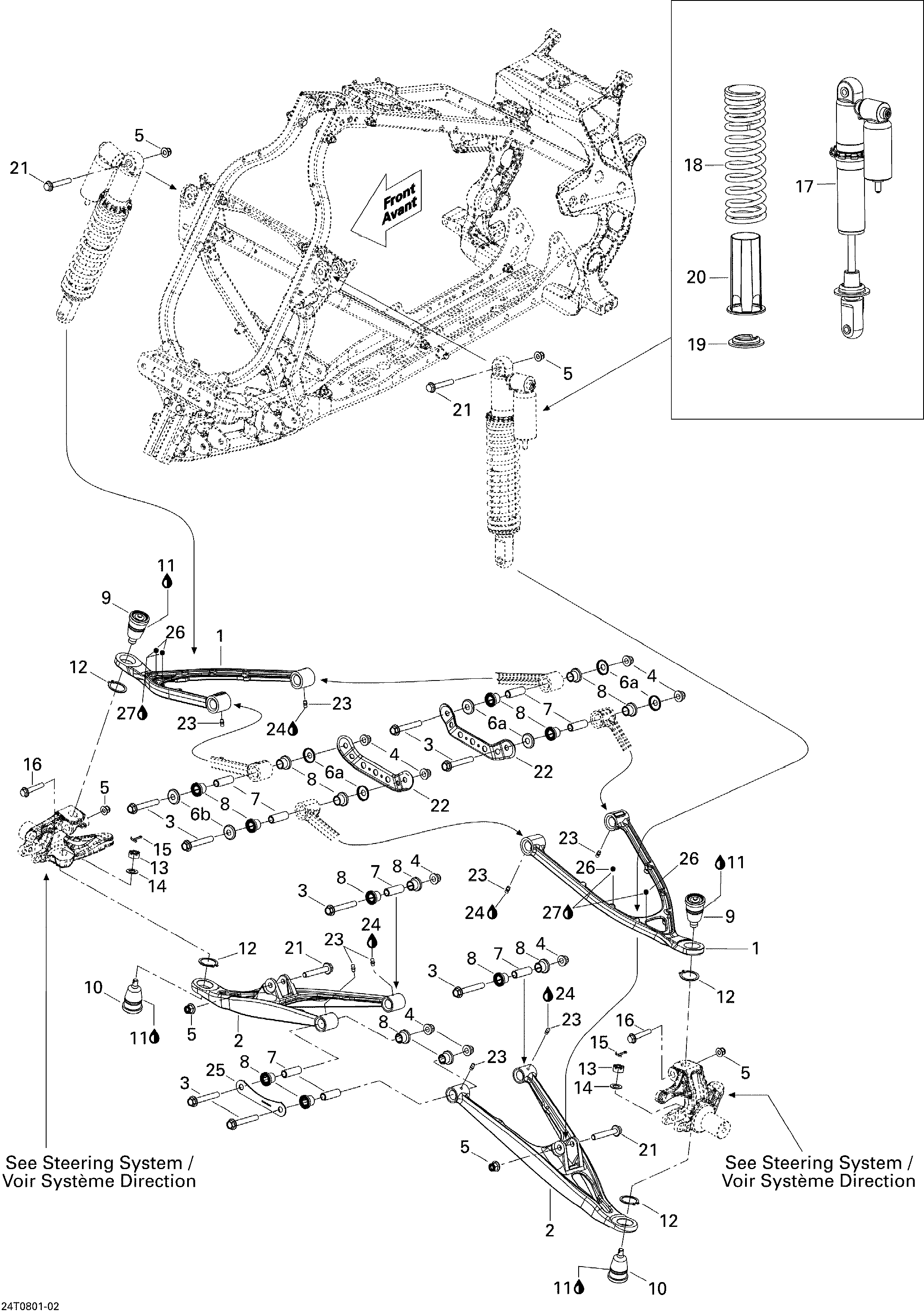

07- Front Suspension для BRP DS 450 X - 2008
-
№АртикулНазвание
-
1706200454 Upper ArmUpper Arm
-
2706200456 Lower ArmLower Arm
-
3207607036 Hex Flanged ScrewHex Flanged Screw
-
4233201436 Flanged Elastic NutFlanged Elastic Nut
-
5233201434 Hex Flanged Elastic NutHex Flanged Elastic Nut
-
6a706200479 WasherWasher
-
6b234002600 WasherWasher
-
7706200678 Inner BushingInner Bushing
-
8706200181 CushionCushion
-
9706200462 Upper Ball JointUpper Ball Joint
-
10706200461 Lower Ball JointLower Ball Joint
-
11413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
12293370009 Circlip 32 mmCirclip 32 mm
-
13250100094 Castle NutCastle Nut
-
14250200084 Flat WasherFlat Washer
-
15250400035 Cotter PinCotter Pin
-
16207605534 Hex Flanged ScrewHex Flanged Screw
-
17706200531 Front ShockFront Shock
-
18706200481 SpringSpring
-
19706000528 Spring StopperSpring Stopper
-
20706200645 Rod ProtectorRod Protector
-
21207606534 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
22706200532 Front Suspension Upper PlateFront Suspension Upper Plate
-
23250000315 Grease FittingGrease Fitting
-
24293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
25706200722 Front Suspension Lower PlateFront Suspension Lower Plate
-
26206260699 Socket Set Screw M6 X 6Socket Set Screw M6 X 6
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
