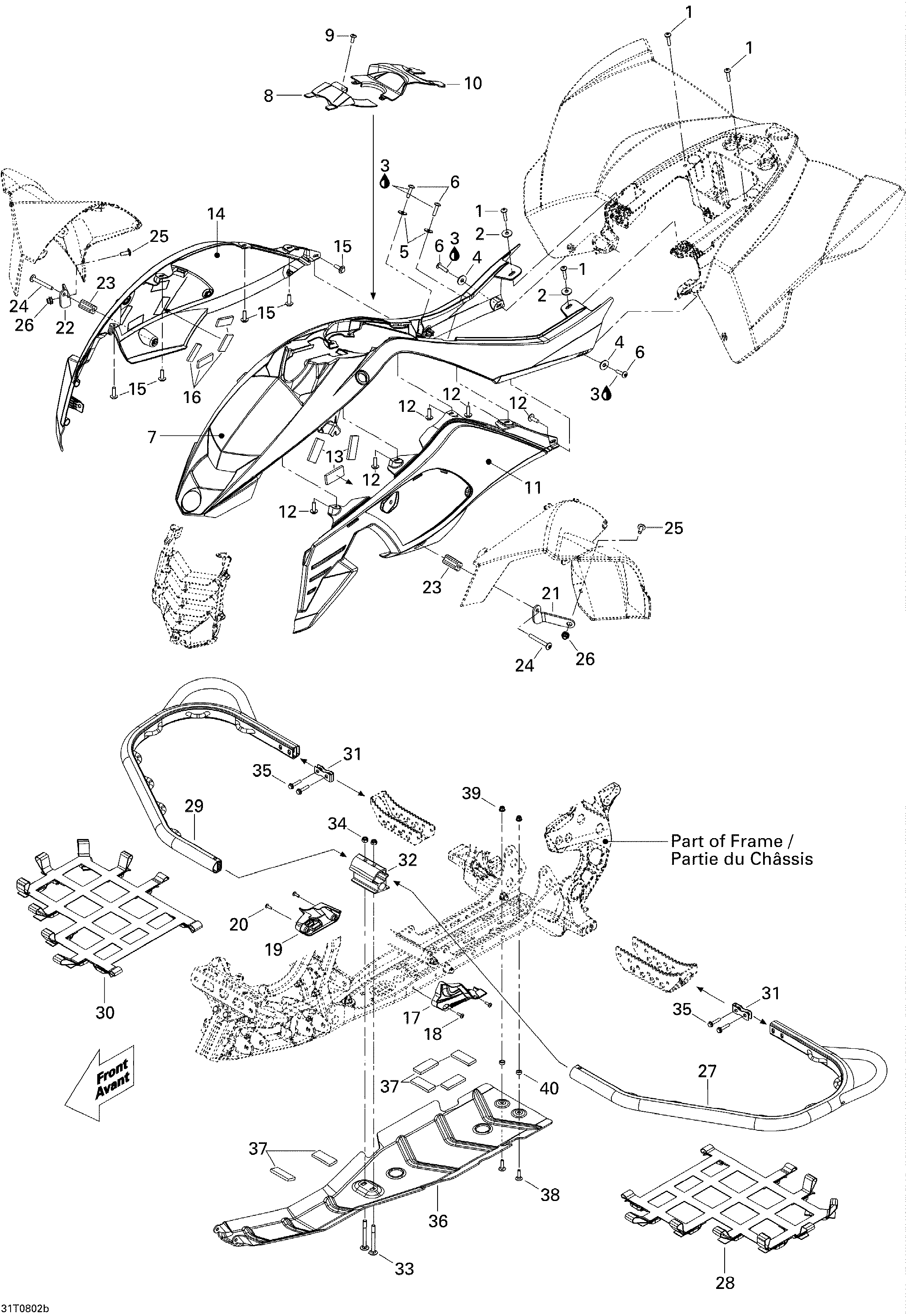

09- Body And Accessories 2 для BRP DS 450 X - 2008
-
№АртикулНазвание
-
1250000300 Torx Screw M5 X 25Torx Screw M5 X 25
-
2250200097 Flat WasherFlat Washer
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4250200039 Flat WasherFlat Washer
-
5250200097 Flat WasherFlat Washer
-
6250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
7705002157 Front fasciaFront fascia
-
8705001758 Dash-BoardDash-Board
-
9250000223 Torx ScrewTorx Screw
-
10705002288 Access CoverAccess Cover
-
11705001923 LH Side PanelLH Side Panel
-
12243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
13705002447 GasketGasket
-
14705001924 RH Side PanelRH Side Panel
-
15243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
16705002447 GasketGasket
-
17705002631 LH Engine MouldingLH Engine Moulding
-
18250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19705002632 RH Engine MouldingRH Engine Moulding
-
20250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
21705002695 LH Fender SupportLH Fender Support
-
22705002696 RH Fender SupportRH Fender Support
-
23705002697 BushingBushing
-
24250000333 Torx Screw M6 X 50Torx Screw M6 X 50
-
25250000223 Torx ScrewTorx Screw
-
26293450274 InsertInsert
-
27705002573 LH Nerf barLH Nerf bar
-
28705001952 LH NetLH Net
-
29705002574 RH Nerf barRH Nerf bar
-
30705001953 RH NetRH Net
-
31705002646 Attachment PlateAttachment Plate
-
32705002580 Nerf Bar AttachmentNerf Bar Attachment
-
33207788034 Carriage Bolt M8 X 80Carriage Bolt M8 X 80
-
34232581434 Elastic Stop NutElastic Stop Nut
-
35207682534 Hex. Flanged ScrewHex. Flanged Screw
-
36705201545 Skid PlateSkid Plate
-
37293830083 ProtectorProtector
-
38207762534 Carriage Bolt M6 X 25Carriage Bolt M6 X 25
-
39233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
40293900067 BushingBushing
