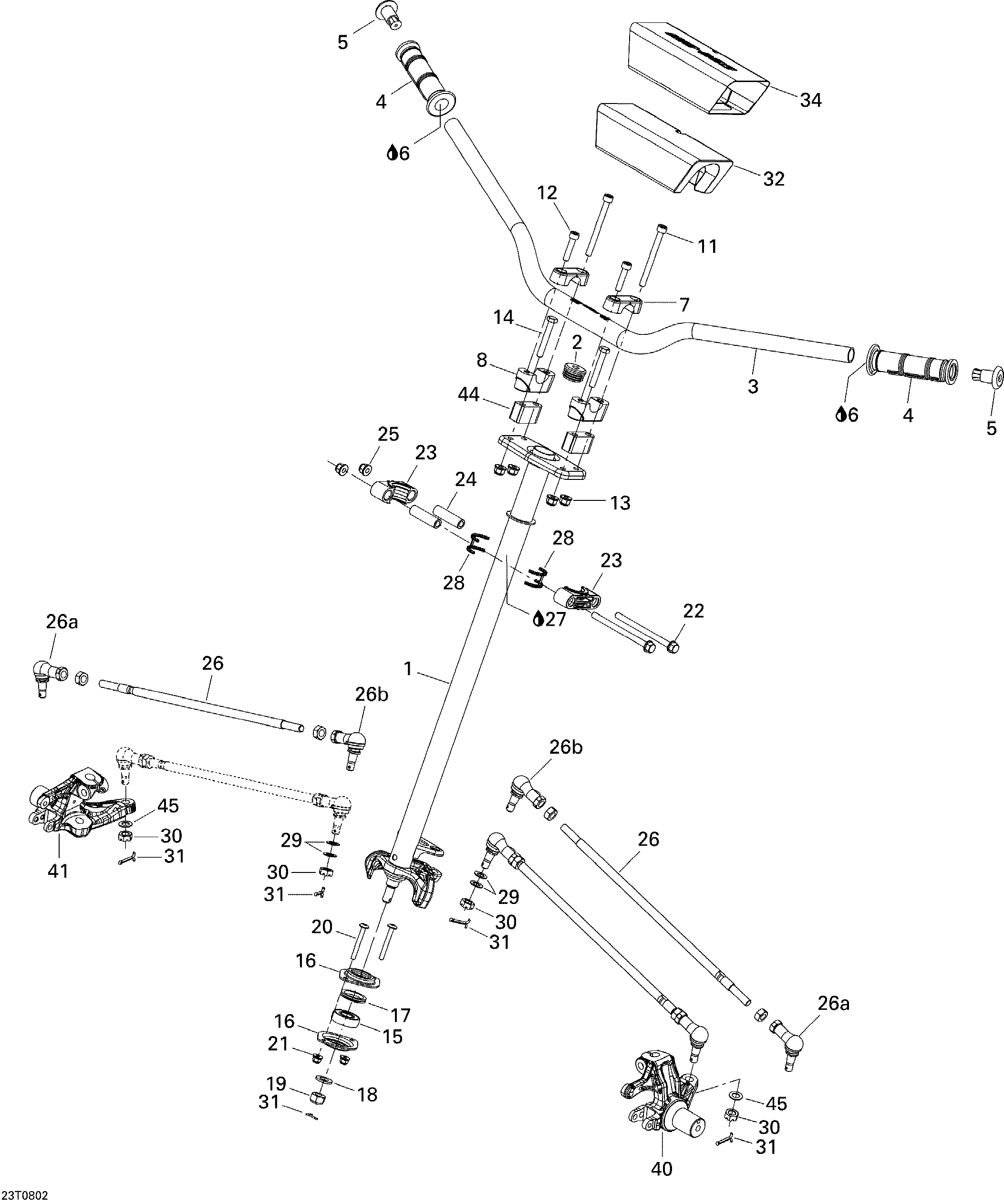

07- Steering для BRP DS 450 X - 2008
-
№АртикулНазвание
-
1709400351 Steering ColumnSteering Column
-
1709400351 Steering ColumnSteering Column
-
2293730045 CapCap
-
2293730045 CapCap
-
3709400495 Handle BarHandle Bar
-
3709400495 Handle BarHandle Bar
-
4709400493 Handle GripHandle Grip
-
4709400493 Handle GripHandle Grip
-
5709400627 End PieceEnd Piece
-
5709400627 End PieceEnd Piece
-
6293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
7709400496 SupportSupport
-
7709400496 SupportSupport
-
8709400497 Steering SupportSteering Support
-
8709400497 Steering SupportSteering Support
-
11205088534 Socket Head ScrewSocket Head Screw
-
11205088534 Socket Head ScrewSocket Head Screw
-
12205083534 Socket Head ScrewSocket Head Screw
-
12205083534 Socket Head ScrewSocket Head Screw
-
13233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
13233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
14207085560 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
14207085560 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
15709400439 Ball BearingBall Bearing
-
15709400439 Ball BearingBall Bearing
-
16709400468 Thrust WasherThrust Washer
-
16709400468 Thrust WasherThrust Washer
-
17293250177 SealSeal
-
17293250177 SealSeal
-
18234021430 Flat WasherFlat Washer
-
18234021430 Flat WasherFlat Washer
-
19250100090 Elastic Stop Nut M12Elastic Stop Nut M12
-
19250100090 Elastic Stop Nut M12Elastic Stop Nut M12
-
20250000317 Torx Screw M6 X 50Torx Screw M6 X 50
-
20250000317 Torx Screw M6 X 50Torx Screw M6 X 50
-
21233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
21233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
22230681034 Hex. Flanged Screw M8 X 110Hex. Flanged Screw M8 X 110
-
22230681034 Hex. Flanged Screw M8 X 110Hex. Flanged Screw M8 X 110
-
23709400471 Half BushingHalf Bushing
-
23709400471 Half BushingHalf Bushing
-
24709400072 BushingBushing
-
24709400072 BushingBushing
-
25233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
25233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
26709400352 Tie Rod Ass'yTie Rod Ass'y
-
26709400352 Tie Rod Ass'yTie Rod Ass'y
-
27293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
27293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
28293300120 Half-SealHalf-Seal
-
28293300120 Half-SealHalf-Seal
-
29250200084 Flat WasherFlat Washer
-
29250200084 Flat WasherFlat Washer
-
30250100094 Castle NutCastle Nut
-
30250100094 Castle NutCastle Nut
-
31250400034 Cotter PinCotter Pin
-
31250400034 Cotter PinCotter Pin
-
32709400422 FoamFoam
-
32709400422 FoamFoam
-
34709400423 CoverCover
-
34709400423 CoverCover
-
40709400346 LH KnuckleLH Knuckle
-
40709400346 LH KnuckleLH Knuckle
-
41709400348 RH KnuckleRH Knuckle
-
41709400348 RH KnuckleRH Knuckle
-
44709400385 ExtensionExtension
-
44709400385 ExtensionExtension
-
45250200084 Flat WasherFlat Washer
-
45250200084 Flat WasherFlat Washer
