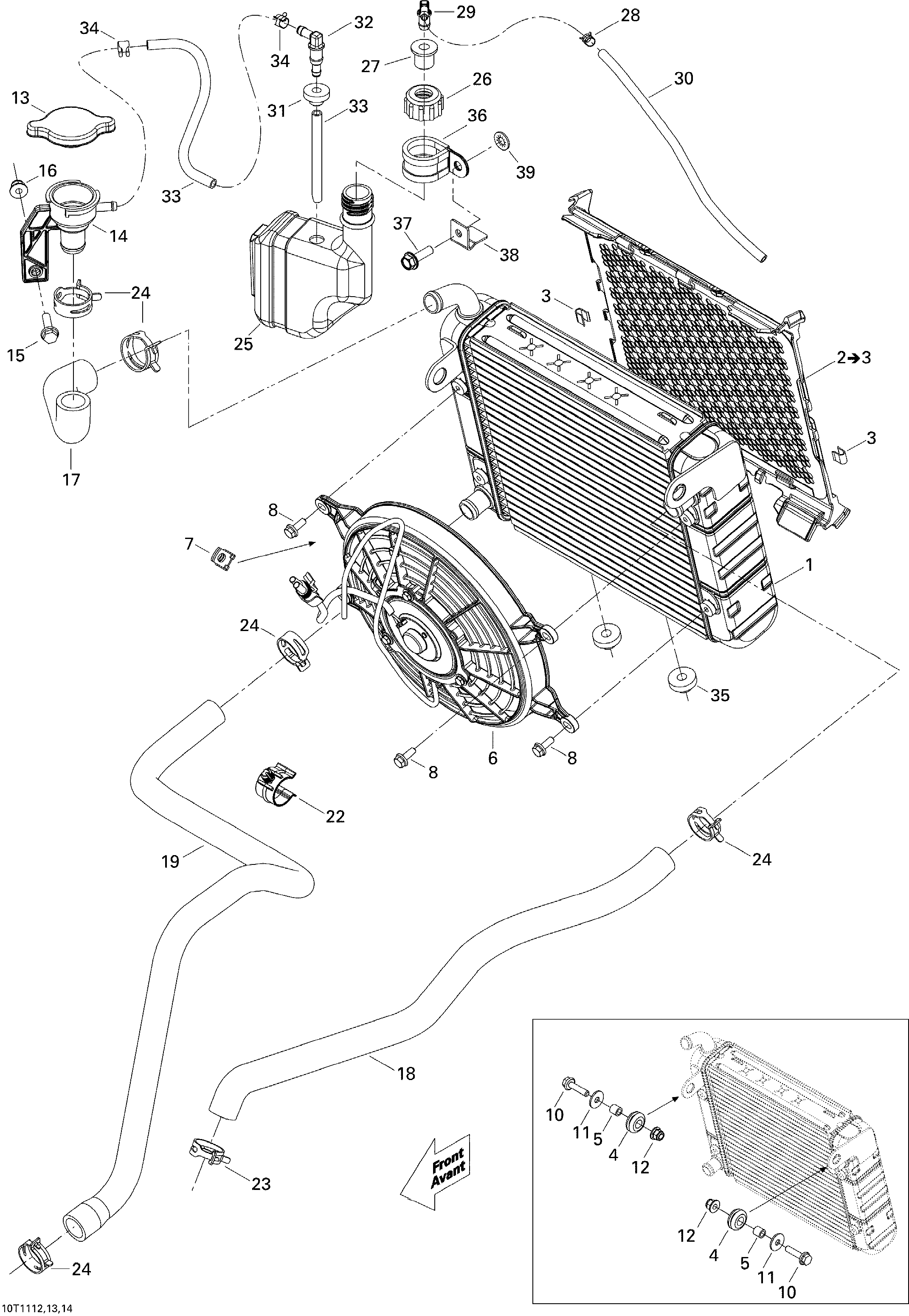

01- Cooling System для BRP Renegade 800R EFI, Xxc - 2011
-
№АртикулНазвание
-
1709200306 RadiatorRadiator
-
2709200187 Radiator Protector. Includes 2 to 3Radiator Protector. Includes 2 to 3
-
3414479100 ClipClip
-
4293720053 GrommetGrommet
-
5293900045 BushingBushing
-
6709200371 Fan Ass'yFan Ass'y
-
7705600459 ClampClamp
-
8207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
10207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
11391302000 Flat WasherFlat Washer
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13709200207 Pressure CapPressure Cap
-
14709200179 Filler NeckFiller Neck
-
15207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17709200180 Filler Neck HoseFiller Neck Hose
-
18709200182 Inlet HoseInlet Hose
-
19709200258 Outlet HoseOutlet Hose
-
22275500590 RetainerRetainer
-
23293650108 Norma Spring ClampNorma Spring Clamp
-
24293650109 Norma Spring ClampNorma Spring Clamp
-
25709200099 Coolant TankCoolant Tank
-
26548872589 Coolant Reserve Tank CapCoolant Reserve Tank Cap
-
27293830136 GrommetGrommet
-
28414554800 Spring ClampSpring Clamp
-
29414580700 Male ConnectorMale Connector
-
30415080200 Hose, PolyurethaneHose, Polyurethane
-
31709200285 GrommetGrommet
-
32414580600 Elbow Male ConnectorElbow Male Connector
-
33415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
34414554800 Spring ClampSpring Clamp
-
35709200285 GrommetGrommet
-
36709200036 Hose AnchorHose Anchor
-
37207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
38709200209 BracketBracket
-
39732610072 Push NutPush Nut
