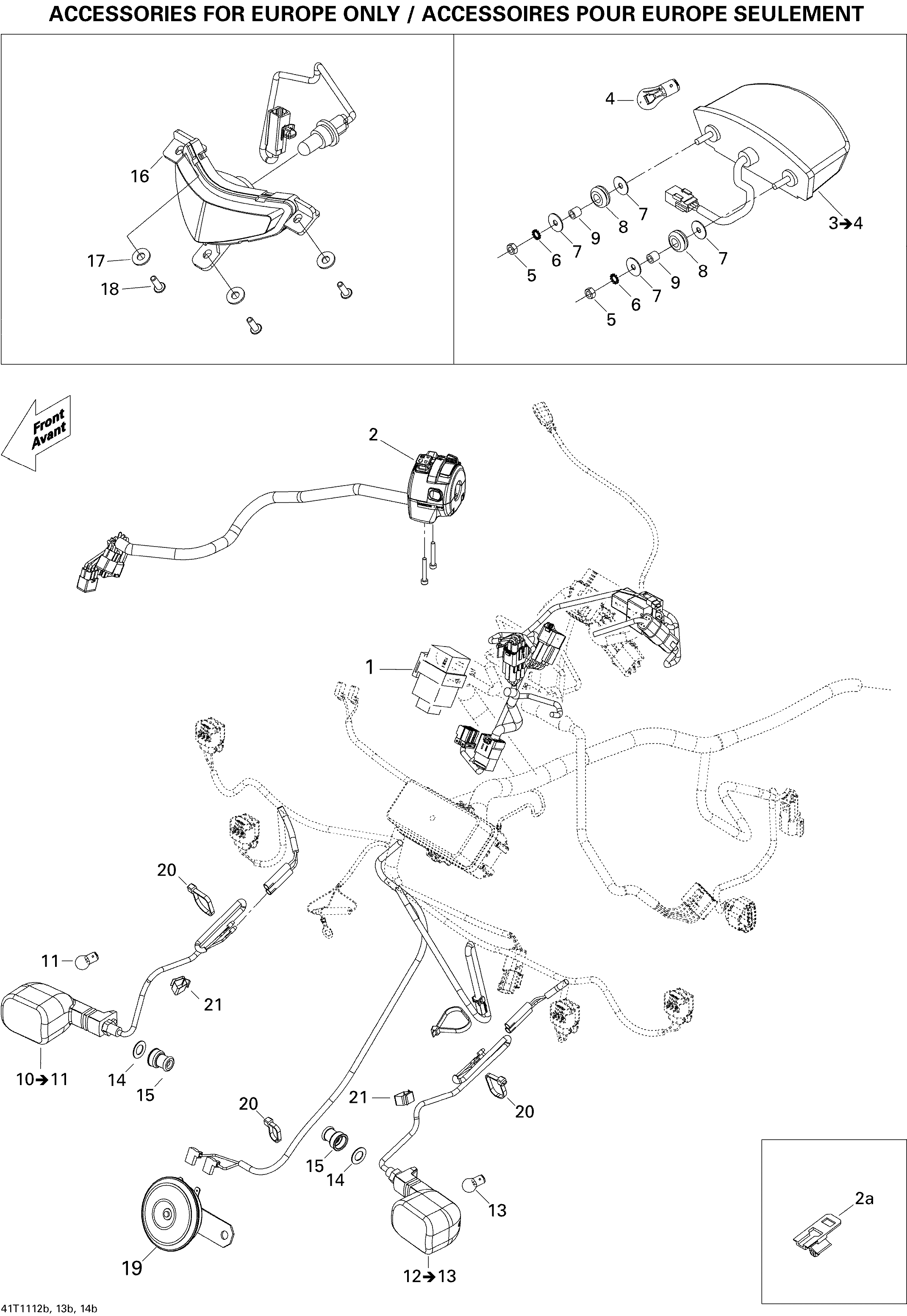

10- Electrical Accessories Europe для BRP Renegade 800R EFI, Xxc - 2011
-
№АртикулНазвание
-
1710001447 Flasher UnitFlasher Unit
-
2710001922 Multi Function HandleMulti Function Handle
-
2a515175283 Housing SupportHousing Support
-
3710000760 Tail Light. Includes 3 to 4Tail Light. Includes 3 to 4
-
4520000758 BulbBulb
-
5232061600 Hex. Nut M6Hex. Nut M6
-
6234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
7224060201 Flat WasherFlat Washer
-
8293720053 GrommetGrommet
-
9293900045 BushingBushing
-
10710000547 Flasher. Includes 10 to 11Flasher. Includes 10 to 11
-
11520000758 BulbBulb
-
12710000546 Flasher. Includes 12 to 13Flasher. Includes 12 to 13
-
13520000758 BulbBulb
-
14503175800 WasherWasher
-
15710001826 Cap GuardCap Guard
-
16710001042 Day LightDay Light
-
17391301700 WasherWasher
-
18241641040 Pan Head Flanged Screw K40 X 10Pan Head Flanged Screw K40 X 10
-
19710000983 HornHorn
-
20414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21414227300 ClipClip
