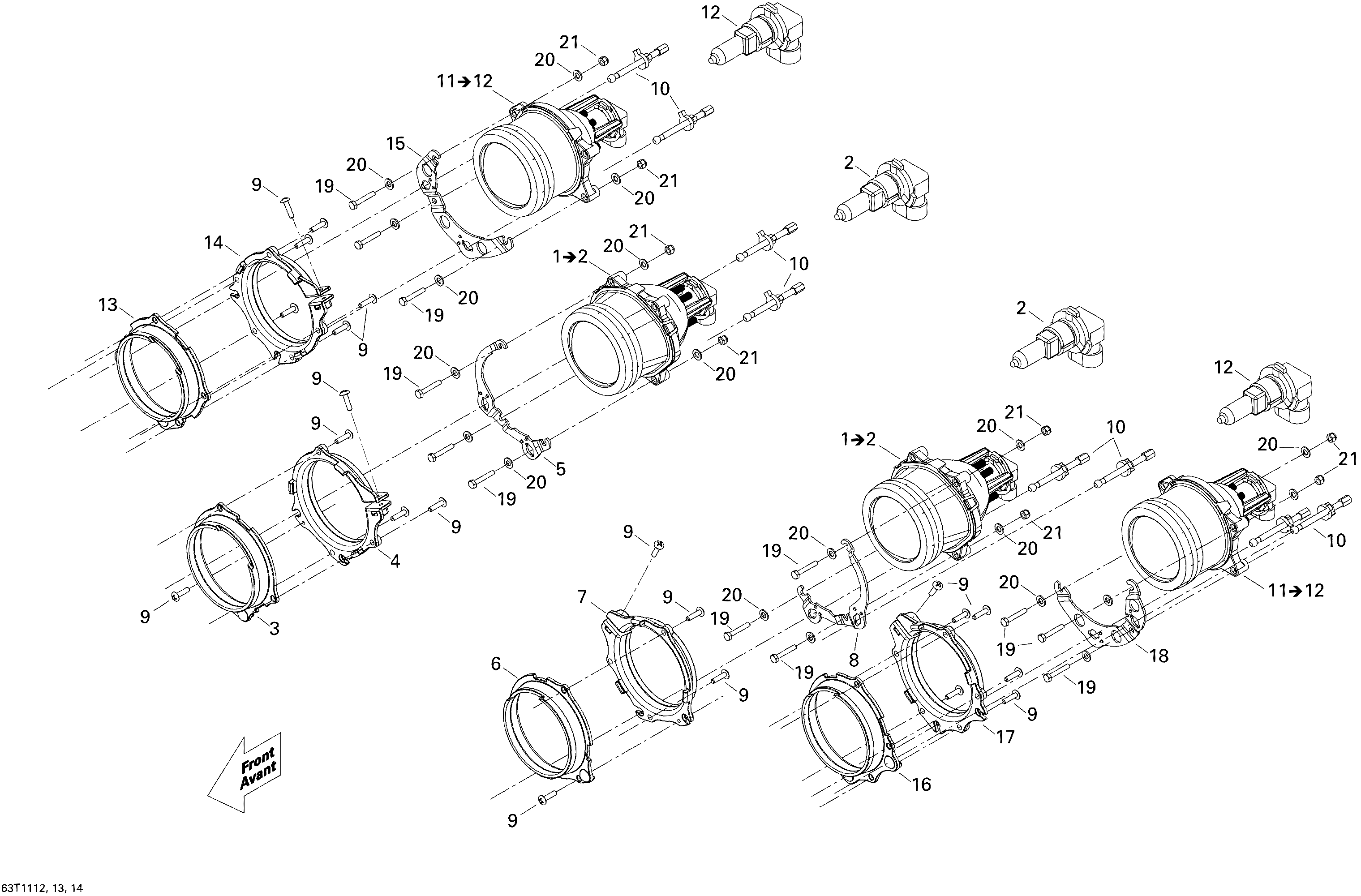

10- Headlights для BRP Renegade 800R EFI, Xxc - 2011
-
№АртикулНазвание
-
1710001325 Low Beam. Includes 1 to 2Low Beam. Includes 1 to 2
-
2415129249 Halogen BulbHalogen Bulb
-
3710001081 RH Low Front HousingRH Low Front Housing
-
4710001082 RH Low Rear HousingRH Low Rear Housing
-
5710001094 RH Low Light SupportRH Low Light Support
-
6710001083 LH Low Front HousingLH Low Front Housing
-
7710001084 LH Low Rear HousingLH Low Rear Housing
-
8710001037 LH Low Light SupportLH Low Light Support
-
9250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
10710001147 Setting ScrewSetting Screw
-
11710001326 High Beam. Includes 11 to 12High Beam. Includes 11 to 12
-
12415129249 Halogen BulbHalogen Bulb
-
13710001085 RH High Front HousingRH High Front Housing
-
14710001086 RH High Rear HousingRH High Rear Housing
-
15710001115 RH High Light SupportRH High Light Support
-
16710001087 LH High Front HousingLH High Front Housing
-
17710001088 LH High Rear HousingLH High Rear Housing
-
18710001036 LH High Light SupportLH High Light Support
-
19207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
20234051410 Flat Washer M5Flat Washer M5
-
21232541414 Elastic Stop Nut M4Elastic Stop Nut M4
