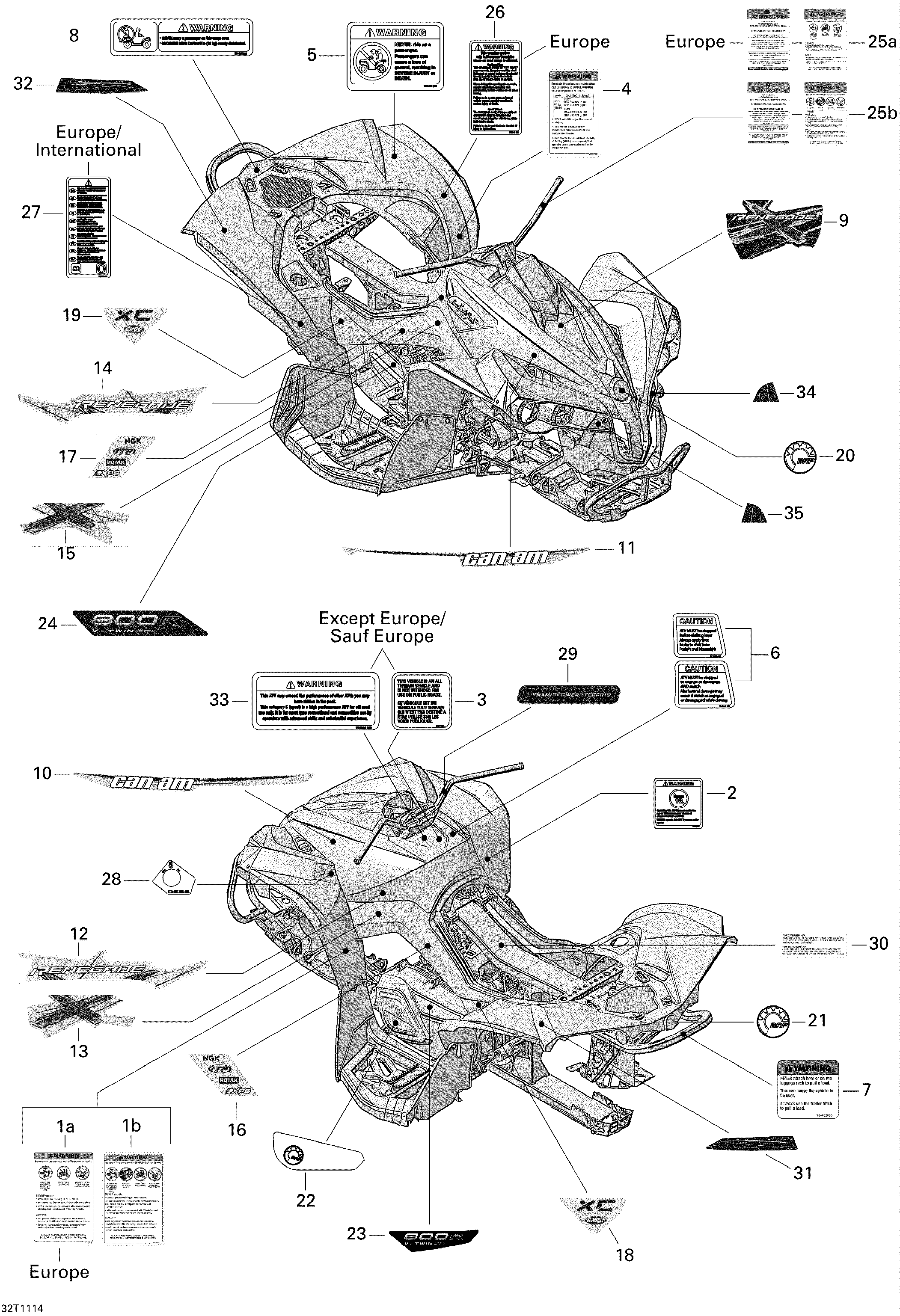

09- Decals для BRP Renegade 800R EFI, Xxc - 2011
-
№АртикулНазвание
-
1a704901875 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
1b704901878 Warning Decal, Death And Injuries. Except EuropeWarning Decal, Death And Injuries. Except Europe
-
2704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704901438 Transport Canada Label. Except EuropeTransport Canada Label. Except Europe
-
4704902396 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
5704900005 Warning Decal, PassengerWarning Decal, Passenger
-
6704901308 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
7704902005 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
8704901333 Warning Decal, LoadWarning Decal, Load
-
9704902290 Console DecalConsole Decal
-
10704902291 LH Front Decal, Can-AmLH Front Decal, Can-Am
-
11704902292 RH Front Decal, Can-AmRH Front Decal, Can-Am
-
12704902293 LH Side Decal, RenegadeLH Side Decal, Renegade
-
13704901953 LH Side Decal, XLH Side Decal, X
-
14704902294 RH Side Decal, RenegadeRH Side Decal, Renegade
-
15704901955 RH Side Decal, XRH Side Decal, X
-
16704902240 LH Sponsor DecalLH Sponsor Decal
-
17704902241 RH Sponsor DecalRH Sponsor Decal
-
18704902244 LH Decal, XCLH Decal, XC
-
19704902245 RH Decal, XCRH Decal, XC
-
20219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
21219902468 Logo BRP, 48 mmLogo BRP, 48 mm
-
22704902083 Decal, CVTDecal, CVT
-
23704902084 LH Engine Cover DecalLH Engine Cover Decal
-
24704902085 RH Engine Cover DecalRH Engine Cover Decal
-
25a704901877 Warning Decal, General Use Model. EuropeWarning Decal, General Use Model. Europe
-
25b704901876 Warning Decal, General Use Model. Except EuropeWarning Decal, General Use Model. Except Europe
-
26704901444 Warning Decal, Public Road Use. EuropeWarning Decal, Public Road Use. Europe
-
27704901177 International Decal, Multilingual. Europe, InternationalInternational Decal, Multilingual. Europe, International
-
28704901311 D.E.S.S DecalD.E.S.S Decal
-
29704901558 Decal, Dynamic Power SteeringDecal, Dynamic Power Steering
-
30707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
31704901949 LH Side DecalLH Side Decal
-
32704901948 RH Side DecalRH Side Decal
-
33704900089 Warning Decal, Performance. Except EuropeWarning Decal, Performance. Except Europe
-
34704901960 LH Front DecalLH Front Decal
-
35704901961 RH Front DecalRH Front Decal
