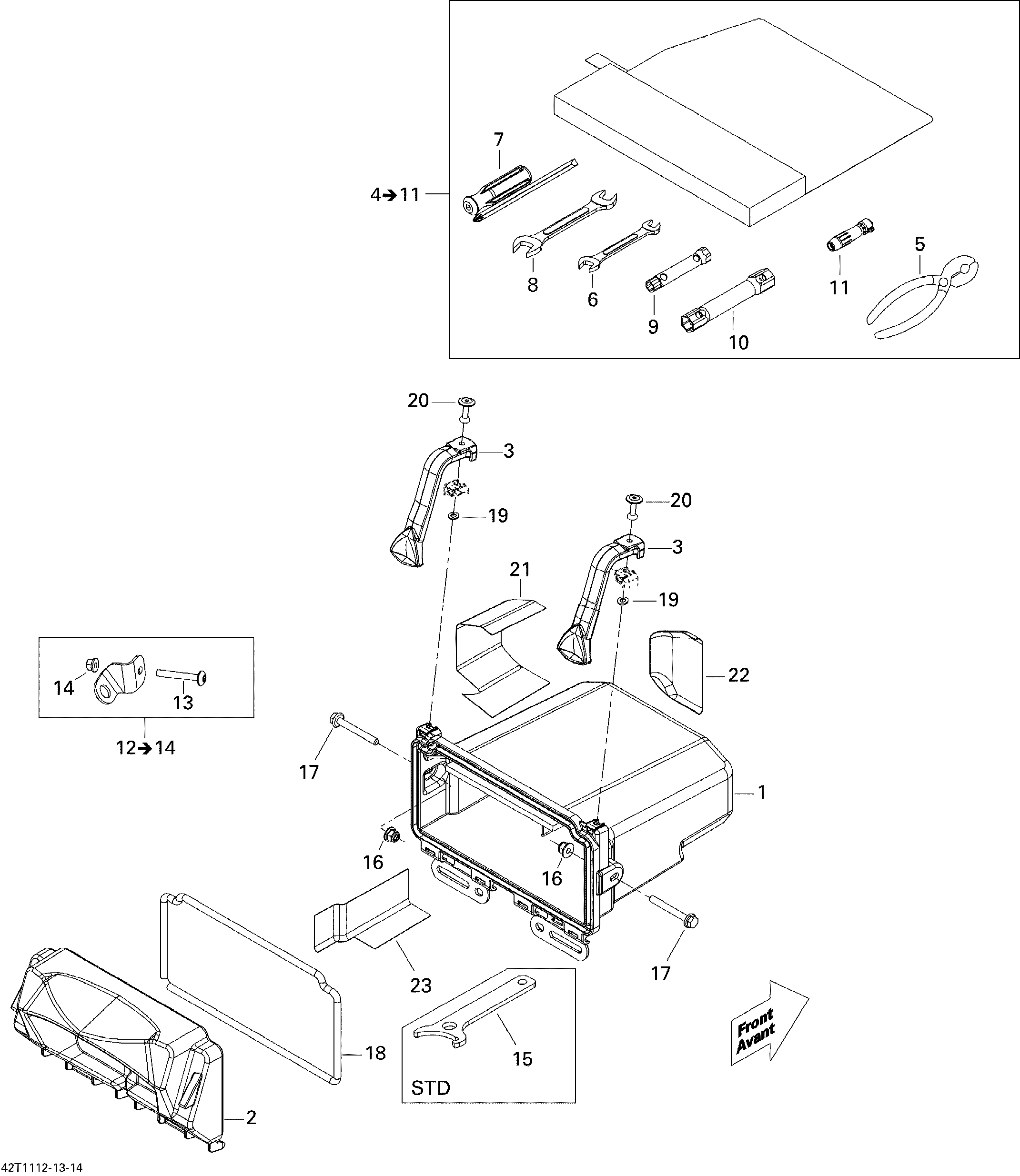

09- Rear Cargo Box для BRP Renegade 800R EFI, Xxc - 2011
-
№АртикулНазвание
-
1708200141 Storage BoxStorage Box
-
2708200140 Storage Box CoverStorage Box Cover
-
3517302448 Panel LatchPanel Latch
-
4708200124 Tool Kit. Includes 4 to 11Tool Kit. Includes 4 to 11
-
7529000004 Screw DriverScrew Driver
-
9529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
11529000052 Pressure GaugePressure Gauge
-
12708200079 Flag Support Kit. Includes 12 to 14Flag Support Kit. Includes 12 to 14
-
13250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
14233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
16233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
17207665034 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
18708200077 Neoprene SealNeoprene Seal
-
19250200081 Flat WasherFlat Washer
-
20293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
21708200087 Front Reflective SheetFront Reflective Sheet
-
22708200088 Reflective SheetReflective Sheet
-
23708200083 Rear Reflective SheetRear Reflective Sheet
