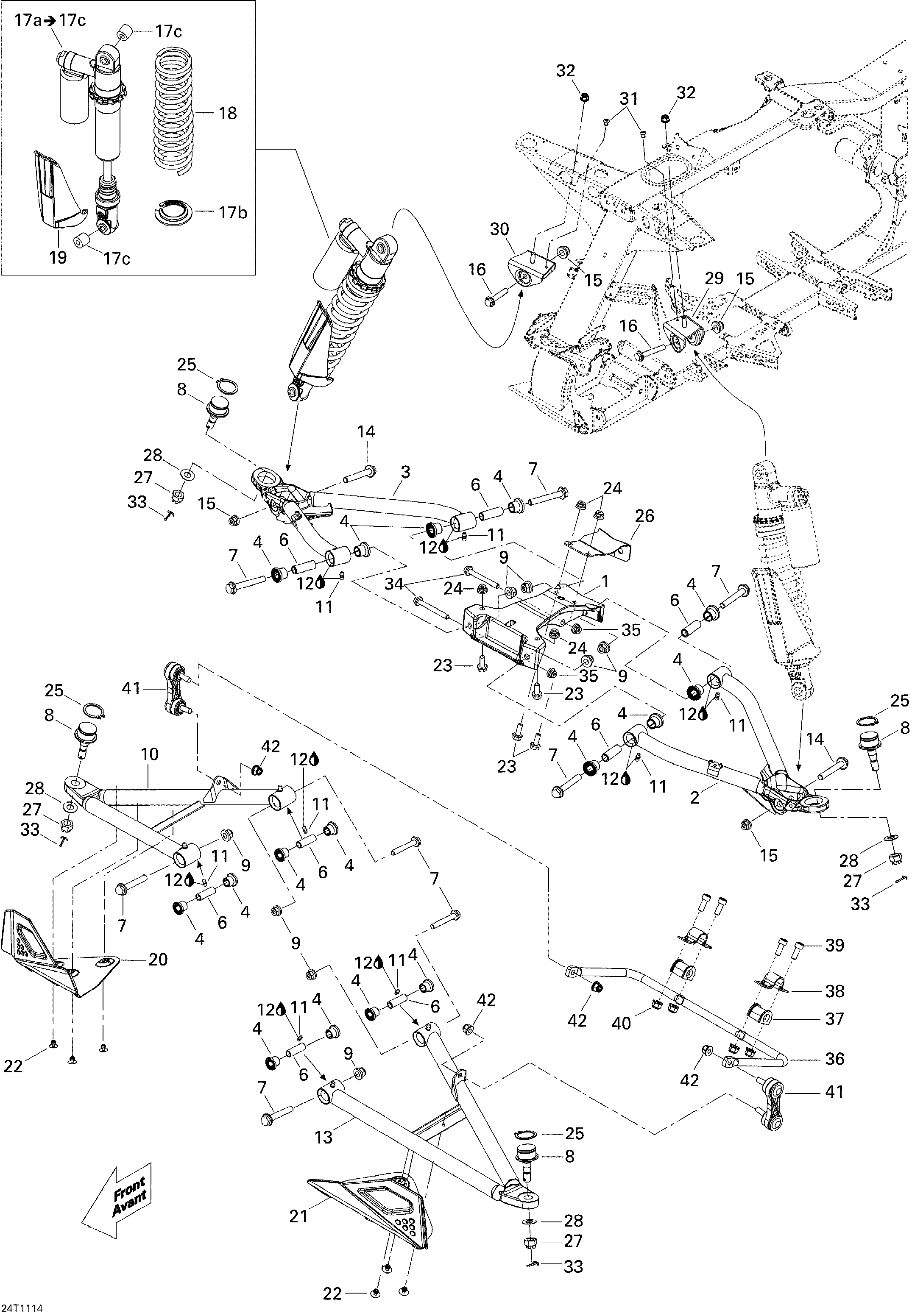

07- Front Suspension для BRP Renegade 800R EFI, Xxc - 2011
-
№АртикулНазвание
-
1706200476 Upper Arm BracketUpper Arm Bracket
-
2706201209 LH Paint Upper ArmLH Paint Upper Arm
-
3706201212 RH Paint Upper ArmRH Paint Upper Arm
-
4706200181 BushingBushing
-
6706200678 Inner BushingInner Bushing
-
7207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
8706200653 Ball JointBall Joint
-
9233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
10706201047 RH Suspension ArmRH Suspension Arm
-
11408200700 Grease FittingGrease Fitting
-
12293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
13706201045 LH Suspension ArmLH Suspension Arm
-
14207606546 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
15233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
17a706200672 Front Shock. Includes 17a to 17cFront Shock. Includes 17a to 17c
-
17b706000567 Spring StopperSpring Stopper
-
18706200827 Yellow SpringYellow Spring
-
19706201286 Rod ProtectorRod Protector
-
20706200616 RH ProtectorRH Protector
-
21706200615 LH ProtectorLH Protector
-
22293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
23207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
24233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
25293370009 Circlip 32 mmCirclip 32 mm
-
26706201014 BracketBracket
-
27250100099 Nut M12Nut M12
-
28706200281 Hardened WasherHardened Washer
-
29706201039 LH Upper Arm BracketLH Upper Arm Bracket
-
30706201040 RH Upper Arm BracketRH Upper Arm Bracket
-
31390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
32233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
33211400017 Cotter PinCotter Pin
-
34207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
35233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
36706200777 Sway BarSway Bar
-
37706201049 BushingBushing
-
38506095800 ClampClamp
-
39205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
40233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
41706201077 Ball JointBall Joint
-
42233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
