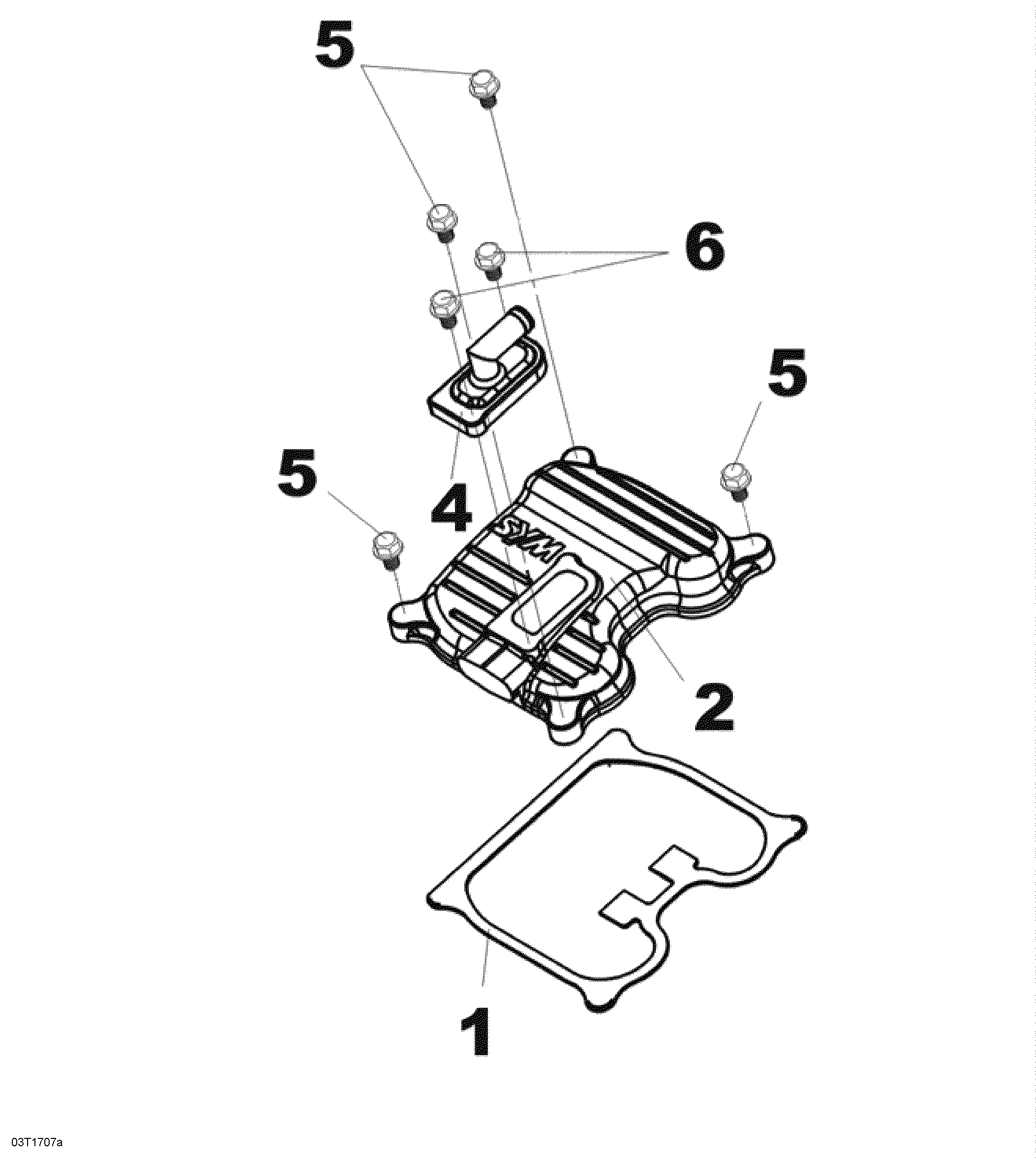

01- Cylinder Head Cover для BRP DS 250 - 2017
-
№АртикулНазвание
-
1S12391HMA000 Valve Cover GasketValve Cover Gasket
-
2S12301HMA000 Cylinder Head CoverCylinder Head Cover
-
4S18610RCA000 Reed Valve Ass'yReed Valve Ass'y
-
5S90002HMA000 Hex. Flanged ScrewHex. Flanged Screw
-
6S960010601608 Hex. Flanged ScrewHex. Flanged Screw
