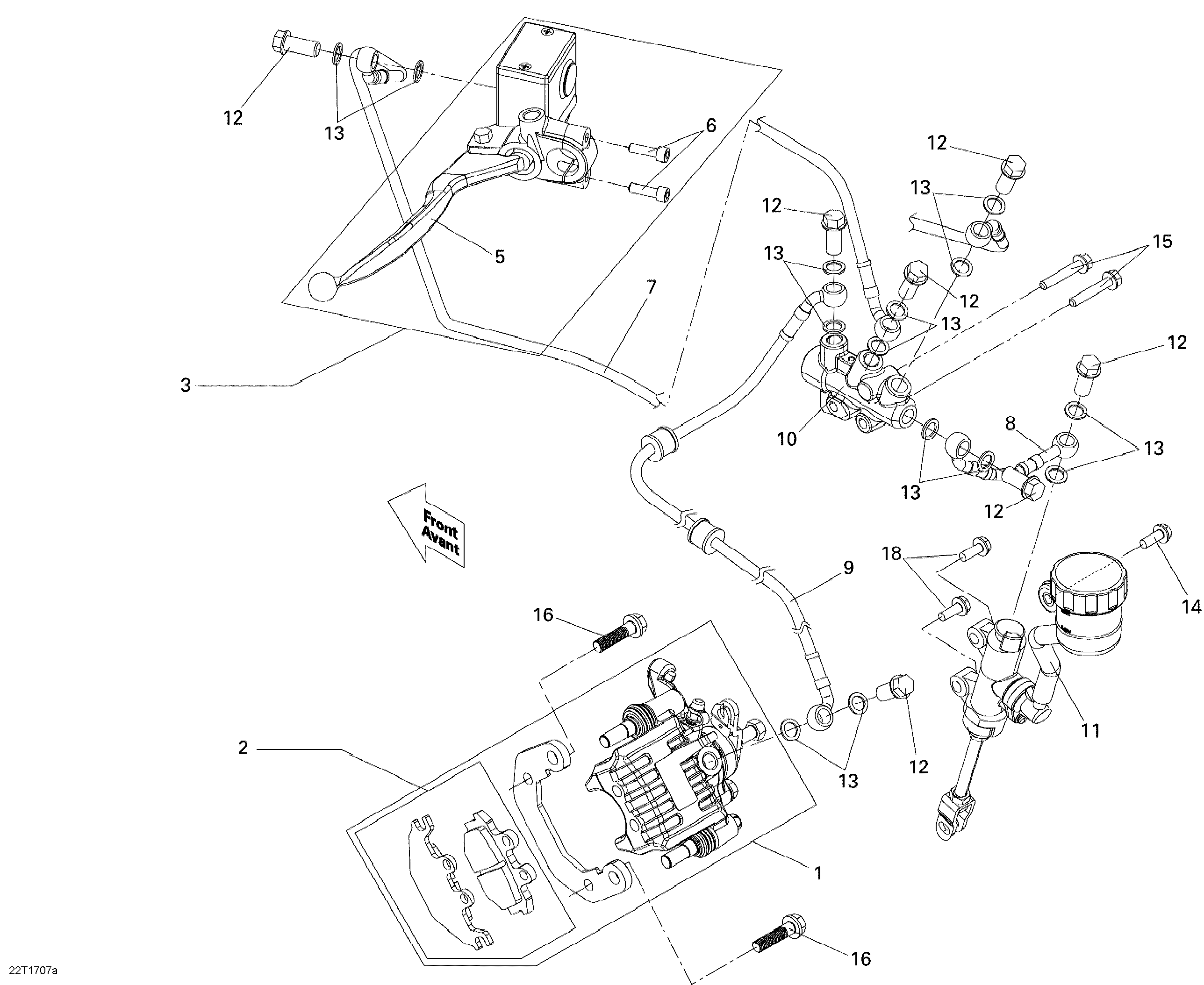

06- Rear Brake для BRP DS 250 - 2017
-
№АртикулНазвание
-
1S43100RCA000 Rear Brake Caliper Ass'y. EuropeRear Brake Caliper Ass'y. Europe
-
1S43100RCB000 Rear Brake Caliper Ass'y. North America, InternationalRear Brake Caliper Ass'y. North America, International
-
2S4311ARCA000 Rear Brake Pad KitRear Brake Pad Kit
-
3S43500RCA000 Rear Master Cylinder Ass'y (With Park Lever). Includes 3 to 5, EuropeRear Master Cylinder Ass'y (With Park Lever). Includes 3 to 5, Europe
-
3S43500RCB000 Rear Master Cylinder Ass'y (W/O Park Lever). Includes 3 to 5, North America, InternationalRear Master Cylinder Ass'y (W/O Park Lever). Includes 3 to 5, North America, International
-
4aS35350KBN900 Rear Stop Switch. Not ShownRear Stop Switch. Not Shown
-
4aS35340KBN900 Front Stop Switch. Not ShownFront Stop Switch. Not Shown
-
4bS35342RA1000 Front Stop Switch Harness. Not ShownFront Stop Switch Harness. Not Shown
-
5S43518RA1000 Arm LeverArm Lever
-
6S967000602507 Socket Bolt M6 X 25Socket Bolt M6 X 25
-
7S46202RCA000 Brake Hose. EuropeBrake Hose. Europe
-
7S46202RCB000 Brake Hose. North America, InternationalBrake Hose. North America, International
-
8S46205RCA000 Foot Master Cylinder Hose. EuropeFoot Master Cylinder Hose. Europe
-
8S46205RCB000 Foot Master Cylinder Hose. North America, InternationalFoot Master Cylinder Hose. North America, International
-
9S46206RCA000 Rear Brake Caliper Hose. EuropeRear Brake Caliper Hose. Europe
-
9S46206RCB000 Rear Brake Caliper Hose. North America, InternationalRear Brake Caliper Hose. North America, International
-
10S46300RA1000 Pressure Control Valve. EuropePressure Control Valve. Europe
-
10S46300RCB000 Pressure Control Valve. North America, InternationalPressure Control Valve. North America, International
-
11S46500RCA000 Foot Master Cylinder Ass'yFoot Master Cylinder Ass'y
-
12S90145M9Q000 Banjo BoltBanjo Bolt
-
13S90545M9Q000 WasherWasher
-
14S958010601807 Flanged Bolt M6 X 18Flanged Bolt M6 X 18
-
15S958010604007 Flanged Bolt M6 X 40Flanged Bolt M6 X 40
-
16S958010801207 Flanged Bolt M8 X 12Flanged Bolt M8 X 12
-
18S958010601607 Flanged Bolt M6 X 16Flanged Bolt M6 X 16
