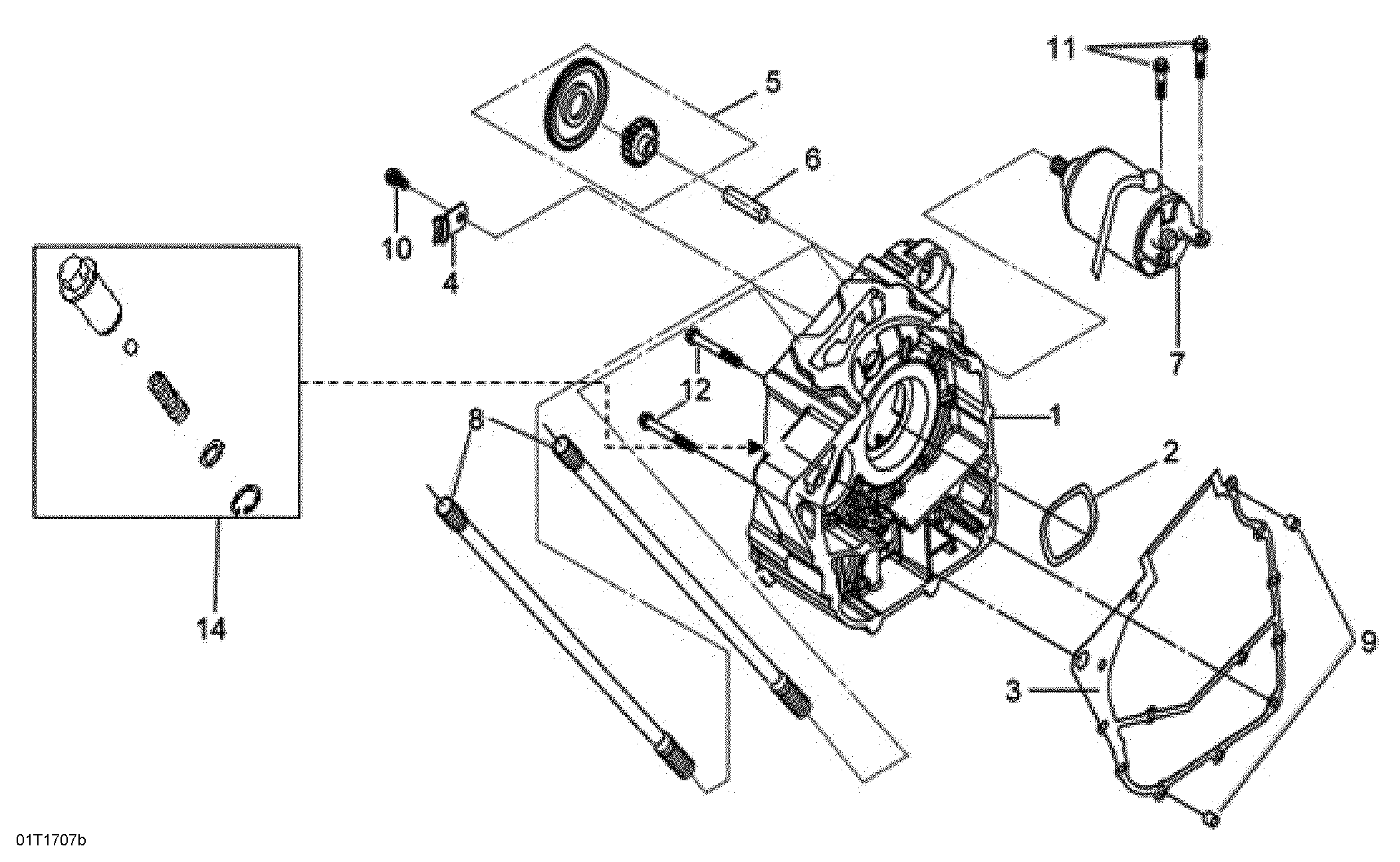

01- Right Crankcase Half для BRP DS 250 - 2017
-
№АртикулНазвание
-
1S11100RB1000 RH Crankcase Ass'yRH Crankcase Ass'y
-
2S11108HMA000 Wave WasherWave Washer
-
3S11191RB1000 Crankcase GasketCrankcase Gasket
-
4S14151HMA000 Cam Chain Setting PlateCam Chain Setting Plate
-
5S28101RB1000 Starter Reduction Gear Ass'yStarter Reduction Gear Ass'y
-
6S28102RB1000 Starter Reduction Gear ShaftStarter Reduction Gear Shaft
-
7S31200RB1000 Starter MotorStarter Motor
-
8S90031HMA000 Cylinder StudCylinder Stud
-
9S9430108140 Dowel PinDowel Pin
-
10S960010601008 Flanged Bolt M6 X 10Flanged Bolt M6 X 10
-
11S960010602200 Flanged Bolt M6 X 22Flanged Bolt M6 X 22
-
12S960010605500 Flanged Bolt M6 X 55Flanged Bolt M6 X 55
-
14S15200HMA000 Oil Relief Valve AssyOil Relief Valve Assy
