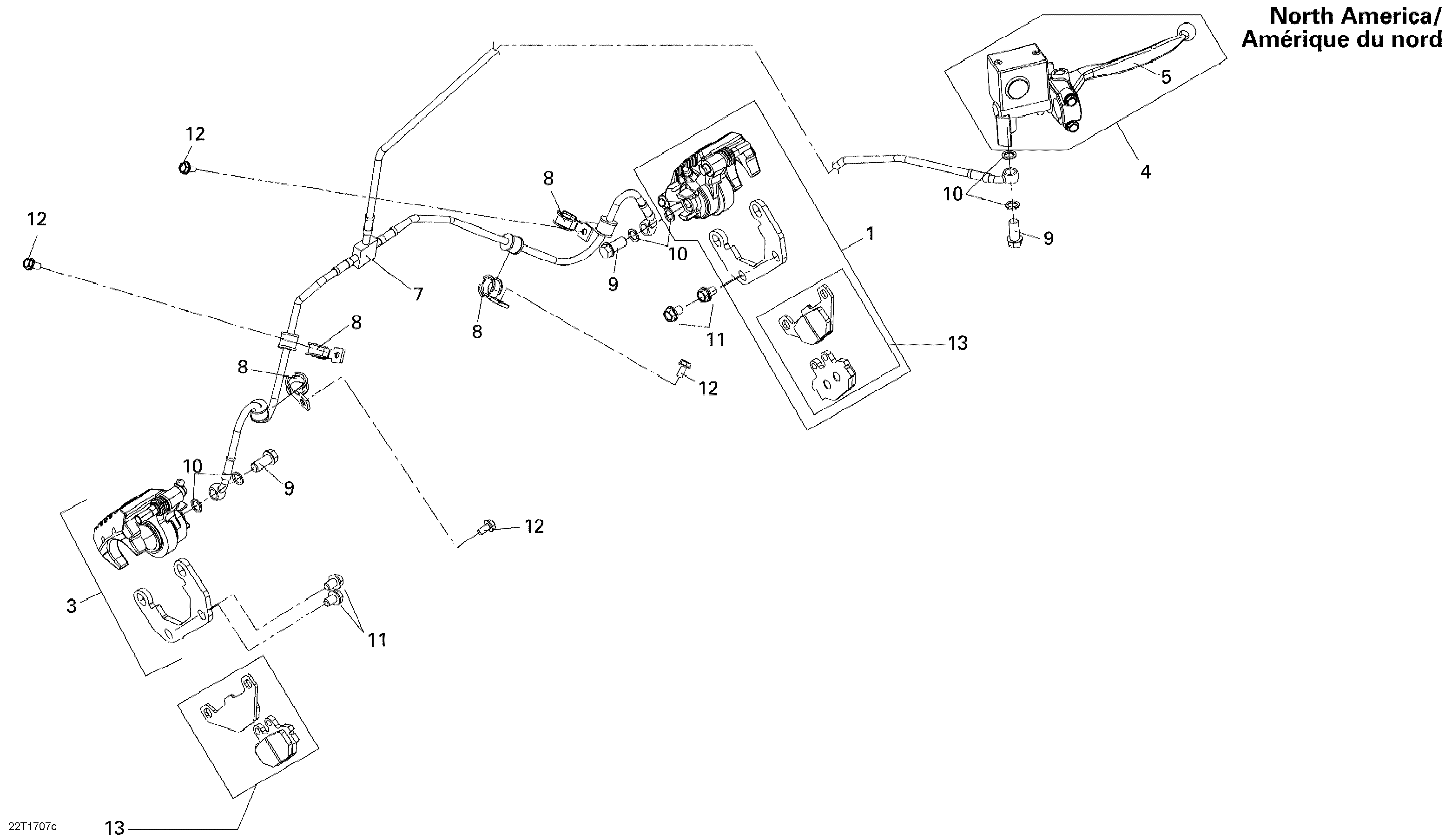

06- Front Brake North America для BRP DS 250 - 2017
-
№АртикулНазвание
-
1S45100RCA000 RH Front Brake Caliper Ass'yRH Front Brake Caliper Ass'y
-
3S45200RCA000 LH Front Brake Caliper Ass'yLH Front Brake Caliper Ass'y
-
4S45500RCB000 Master Cylinder Ass'y. Includes 4 to 6Master Cylinder Ass'y. Includes 4 to 6
-
5S45518RA1000 Arm LeverArm Lever
-
6S35101RB1000 Stop Switch. Not ShownStop Switch. Not Shown
-
7S46201RCB000 Brake HoseBrake Hose
-
8S45156H3C000 Hose ClampHose Clamp
-
9S90145M9Q000 Banjo BoltBanjo Bolt
-
10S90545M9Q000 WasherWasher
-
11S958010801607 Flanged Bolt M8 X 16Flanged Bolt M8 X 16
-
12S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
13S4511ARA1000 Front Brake Pad KitFront Brake Pad Kit
