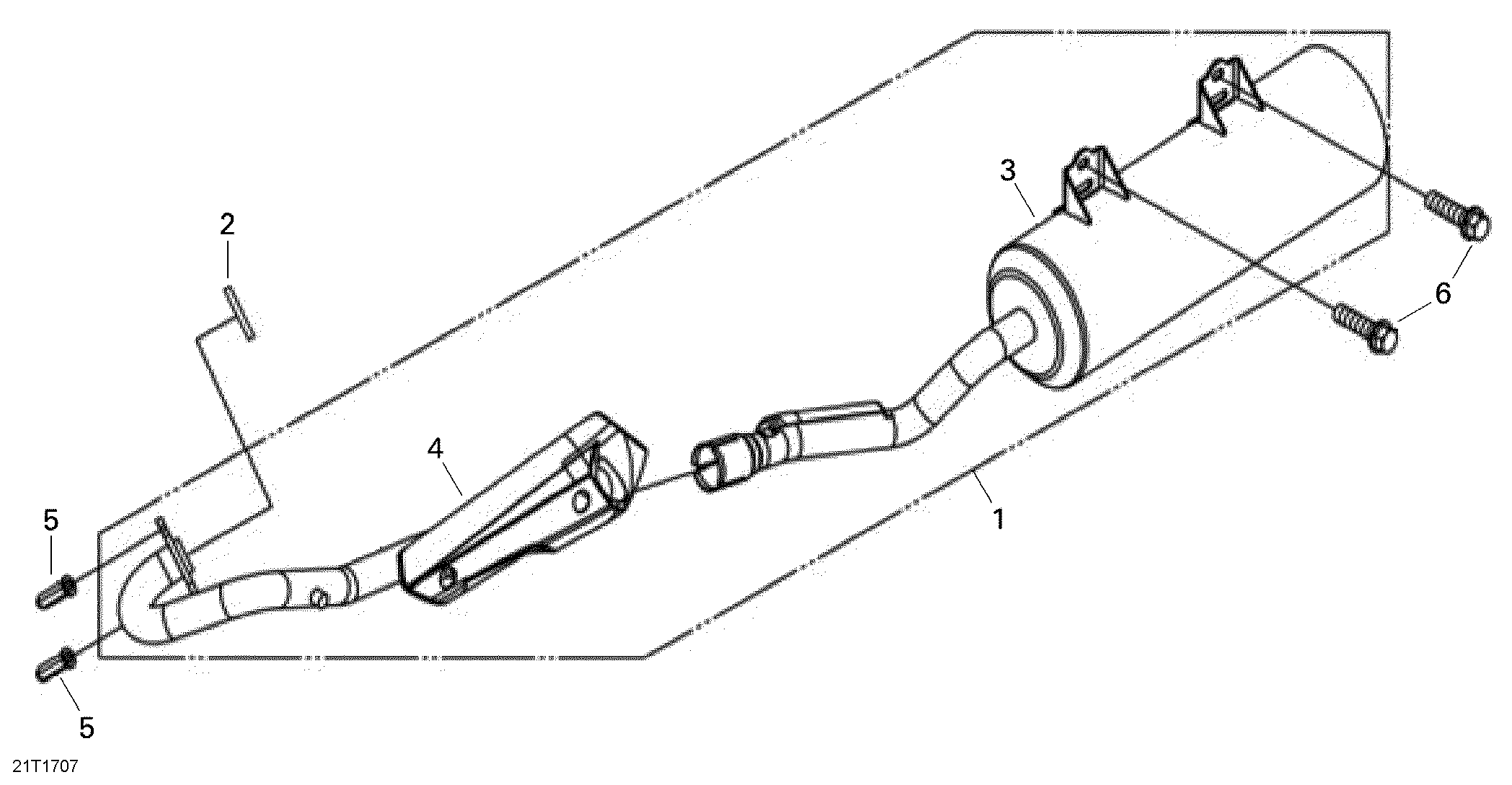

01- Exhaust System North America для BRP DS 250 - 2017
-
№АртикулНазвание
-
2S18291H9A000 Exhaust Gasket. North AmericaExhaust Gasket. North America
-
3S18310RCB300 Muffler Ass'y. North AmericaMuffler Ass'y. North America
-
4S1832ARB1000 Exhaust Pipe. North AmericaExhaust Pipe. North America
-
5S90043RFS000 Cap Nut. North AmericaCap Nut. North America
-
6S958010801607 Flanged Bolt M8 X 16. North AmericaFlanged Bolt M8 X 16. North America
-
7S18317RB1000 Exhaust Protector. North AmericaExhaust Protector. North America
-
8S18319HMA300 Exhaust Gasket. North AmericaExhaust Gasket. North America
-
9S18321RB1000 Muffler Clamp 37MM. North AmericaMuffler Clamp 37MM. North America
-
10S90103V02000 Bolt 6 x 12. North AmericaBolt 6 x 12. North America
-
11S90107V02000 Washer. North AmericaWasher. North America
