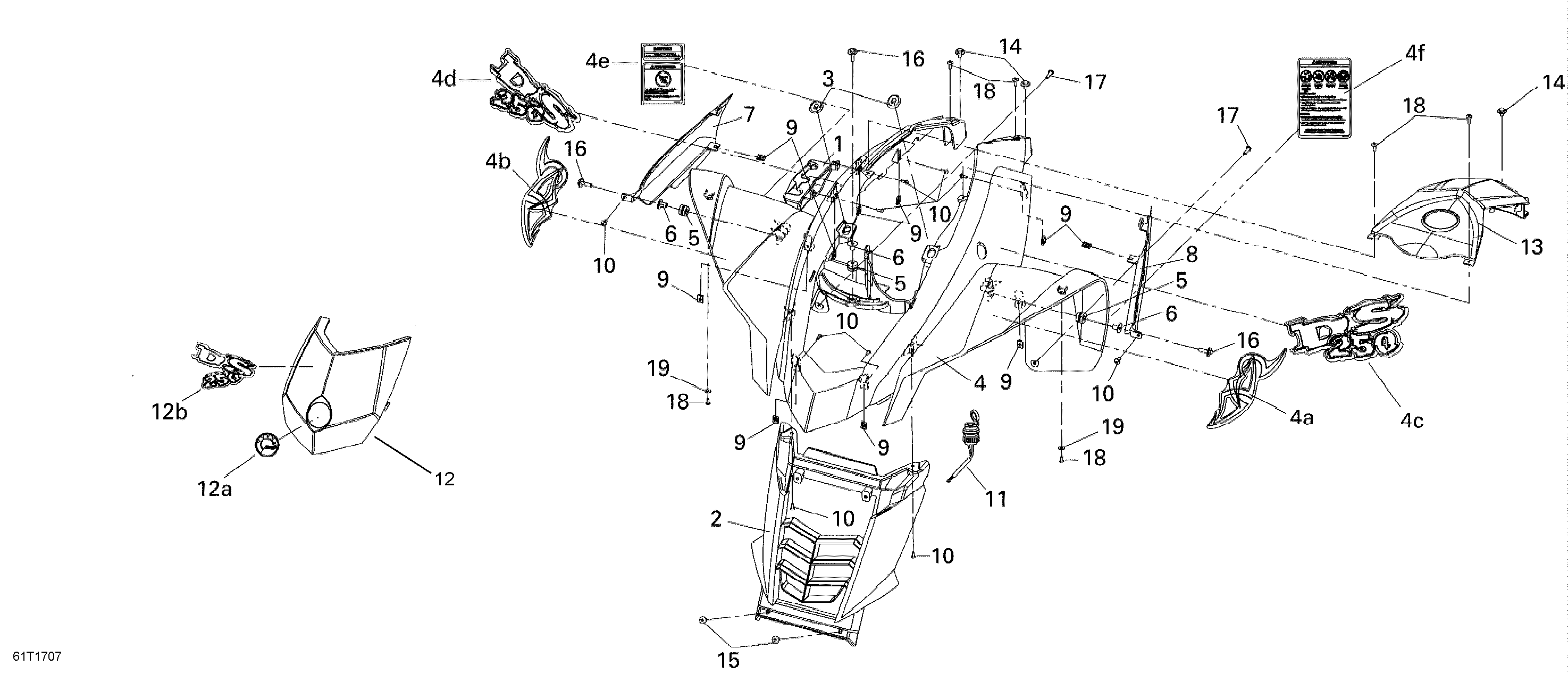

09- Front Fender North America для BRP DS 250 - 2017
-
№АртикулНазвание
-
1S46220RCA000 Shift Lever Cover. North AmericaShift Lever Cover. North America
-
2S50611RCA000 Radiator Grill. North AmericaRadiator Grill. North America
-
3S61105RCA000 Gromet. North AmericaGromet. North America
-
4S6110GRCBH00ZY Front Fender, Yellow. North AmericaFront Fender, Yellow. North America
-
4aS87131RCAA00 Front Decal. North AmericaFront Decal. North America
-
4cS87136RCAA00 LH Front Decal B. North AmericaLH Front Decal B. North America
-
4eS87137RCAA00 RH Front Decal B. North AmericaRH Front Decal B. North America
-
4gS87501RCB900 Warning Decal A. North AmericaWarning Decal A. North America
-
4fS87502RCBA00 Warning Decal, 14 Years Old. North AmericaWarning Decal, 14 Years Old. North America
-
4kS87505RCAA00 Shifter Label. North AmericaShifter Label. North America
-
4hS87518RCBH00 Warning Decal, Road. North AmericaWarning Decal, Road. North America
-
5S80103X01000 Rubber Washer. North AmericaRubber Washer. North America
-
6S80104X01000 Fender Collar. North AmericaFender Collar. North America
-
7S83520RCA000 RH Side Pannel. North AmericaRH Side Pannel. North America
-
8S83620RCA000 LH Side Pannel. North AmericaLH Side Pannel. North America
-
9S90302V02000 Clip Nut. North AmericaClip Nut. North America
-
10S9390332280 Tapping Screw M4 X 12. North AmericaTapping Screw M4 X 12. North America
-
11S38600RA1000 DC Power Outlet, 12 Volts. North AmericaDC Power Outlet, 12 Volts. North America
-
12S6430GRCAA00JF Radiator Cover Ass'y. North AmericaRadiator Cover Ass'y. North America
-
12aS87130RCAA00 DS250 Decal. North AmericaDS250 Decal. North America
-
12bS87500RCA000 BRP Logo. North AmericaBRP Logo. North America
-
13S43020RCA000 Fuel Tank Cover. North AmericaFuel Tank Cover. North America
-
14S934040601407 Washer Bolt. North AmericaWasher Bolt. North America
-
15S90164RCA000 Special Screw. North AmericaSpecial Screw. North America
-
16S934040602507 Washer Bolt. North AmericaWasher Bolt. North America
-
17S9390344380 Tapping Screw. North AmericaTapping Screw. North America
-
18S9390345380 Taping Screw M5 X 16. North AmericaTaping Screw M5 X 16. North America
-
19S9411105800 Spring Washer 5 mm. North AmericaSpring Washer 5 mm. North America
